Lynx 3D Scanner
The details make the difference. Check the fit before you order.
1 / 4£348.84
SKU 3DM-LYNX-01
Contact us for availability and delivery information.
Make it yours
Choose your options. The price updates as you go.
1
Lynx: Everything in One Scan Up to 0.10mm accuracy Large scanning range Long working distance User-friendly software Capture Larger Objects Lynx's Single Capture Range is 400×250mm, which is 200% larger than traditional mid-format scanners. With Lynx, you can scan objects up to 5000x5000x5000mm, a whopping 3700% improvement! Smooth Scanning Experience Lynx enables smooth scanning of large objects with an optical stabilizer and advanced visual tracking, minimizing the probability of misalignment without markers. Faithful Object Reproduction With 0.10mm accuracy and 0.30mm resolution, Lynx helps you create precise and detailed point clouds, achieving a high level of object reproduction suitable for art, design, and industrial purposes.
Features & product detailsExplore the design, capabilities and setup information.
A closer look
Lynx 3D Scanner · Fabinity guide to 3DMakerpro features.
Explore product details (13)
Lynx 3D Scanner
Responsive Icon Blocks Up to 0.10mm accuracy Large scanning range Long working distance User-friendly software
icon
icon
icon
Lynx: Everything in One Scan
Lynx: Everything in One Scan
Lynx: Everything in One Scan
Lynx: Everything in One Scan - 1

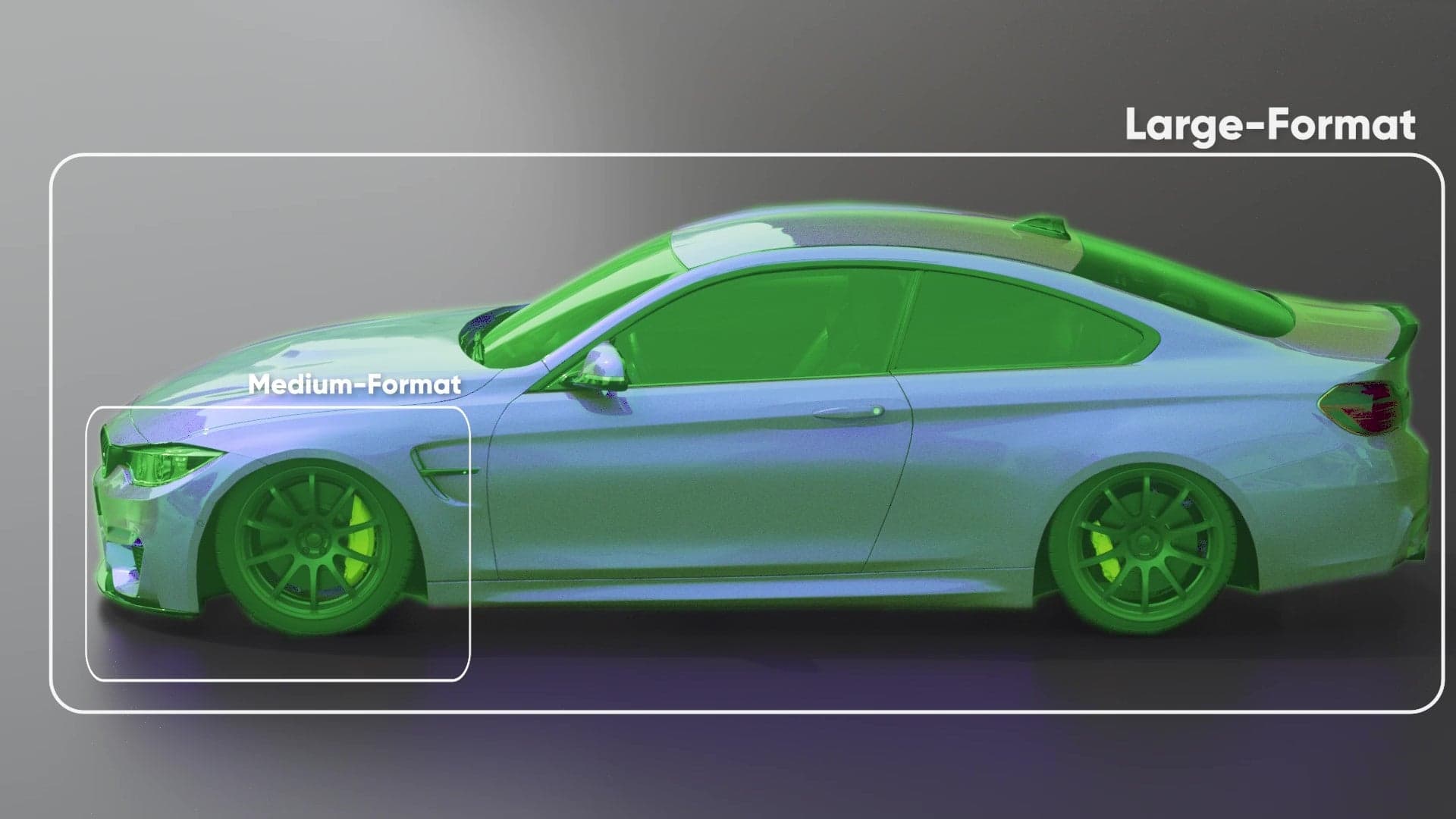

Capture Larger Objects
Capture Larger Objects
Lynx's Single Capture Range is 250×400mm, which is 200% larger than traditional mid-format scanners. With Lynx, you can scan objects up to 5000x5000x5000mm, a whopping 3700% improvement!
Capture Larger Objects
Capture Larger Objects - 1

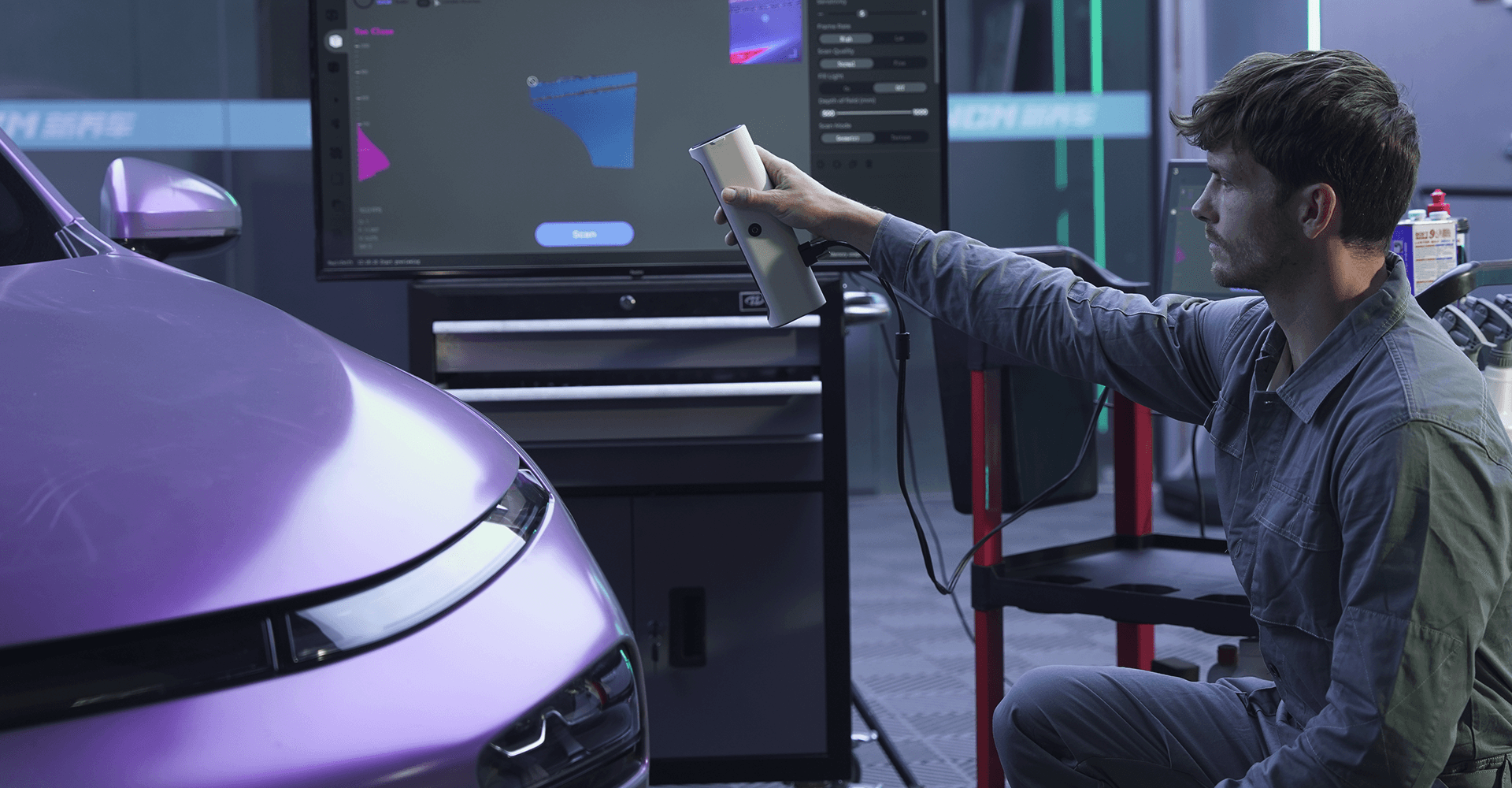

Smooth Scanning Experience
Smooth Scanning Experience
Lynx enables smooth scanning of large objects with an optical stabilizer and advanced visual tracking, minimizing the probability of misalignment without markers.
Smooth Scanning Experience
Smooth Scanning Experience - 1

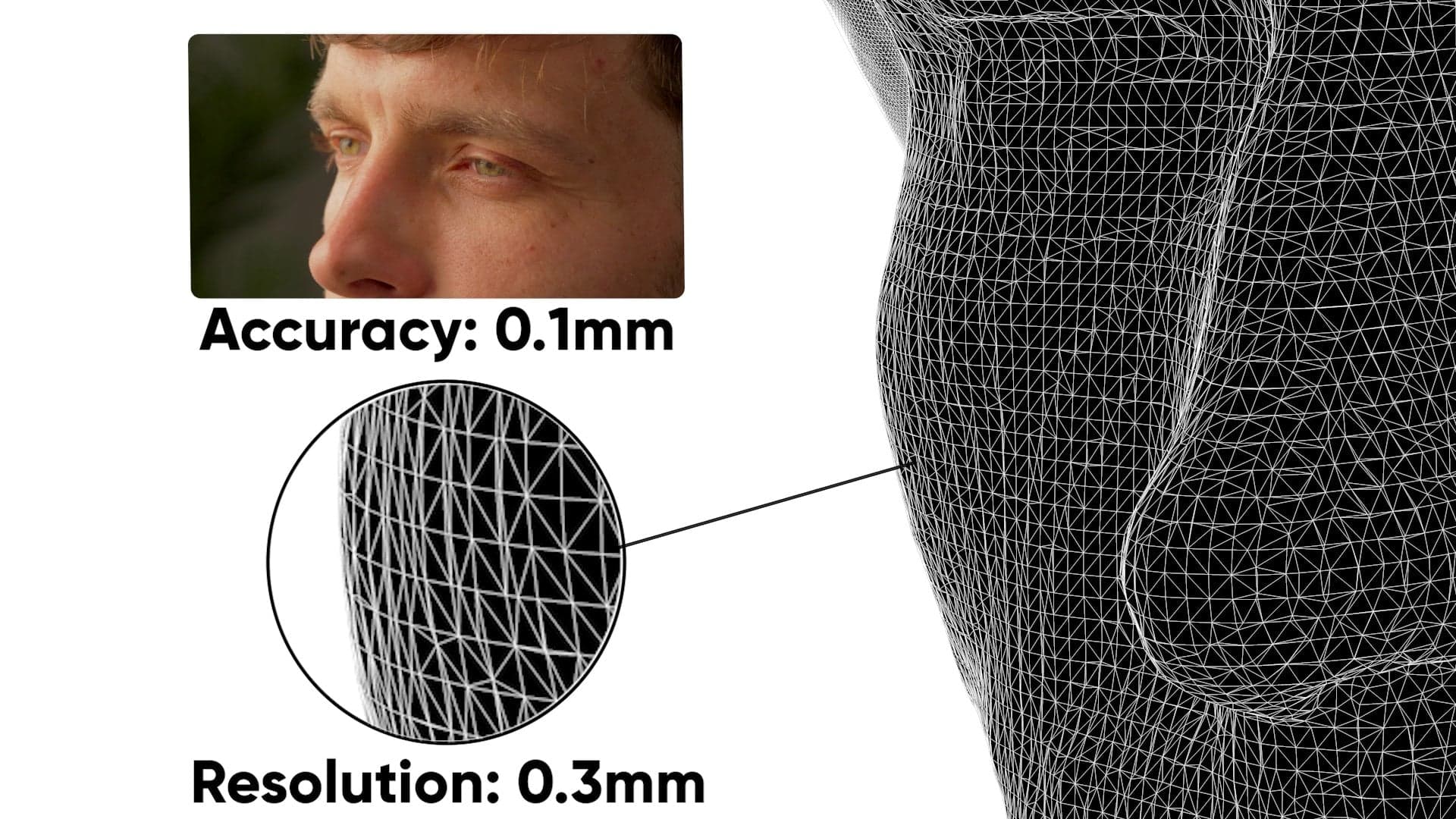

Faithful Object Reproduction
Faithful Object Reproduction
With 0.10mm accuracy and 0.30mm resolution, Lynx helps you create precise and detailed point clouds, achieving a high level of object reproduction suitable for art, design, and industrial purposes.
Faithful Object Reproduction
Faithful Object Reproduction - 1

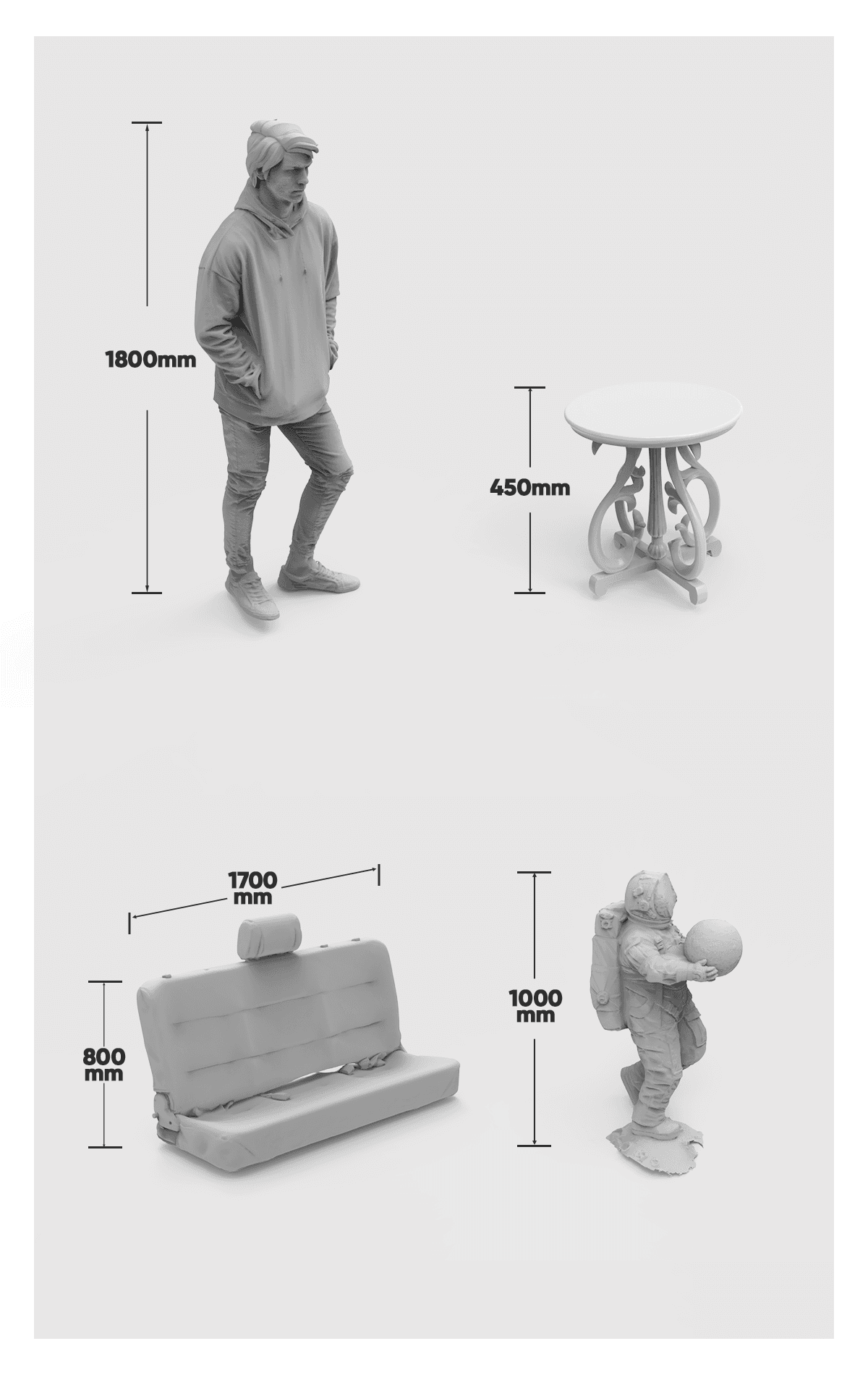

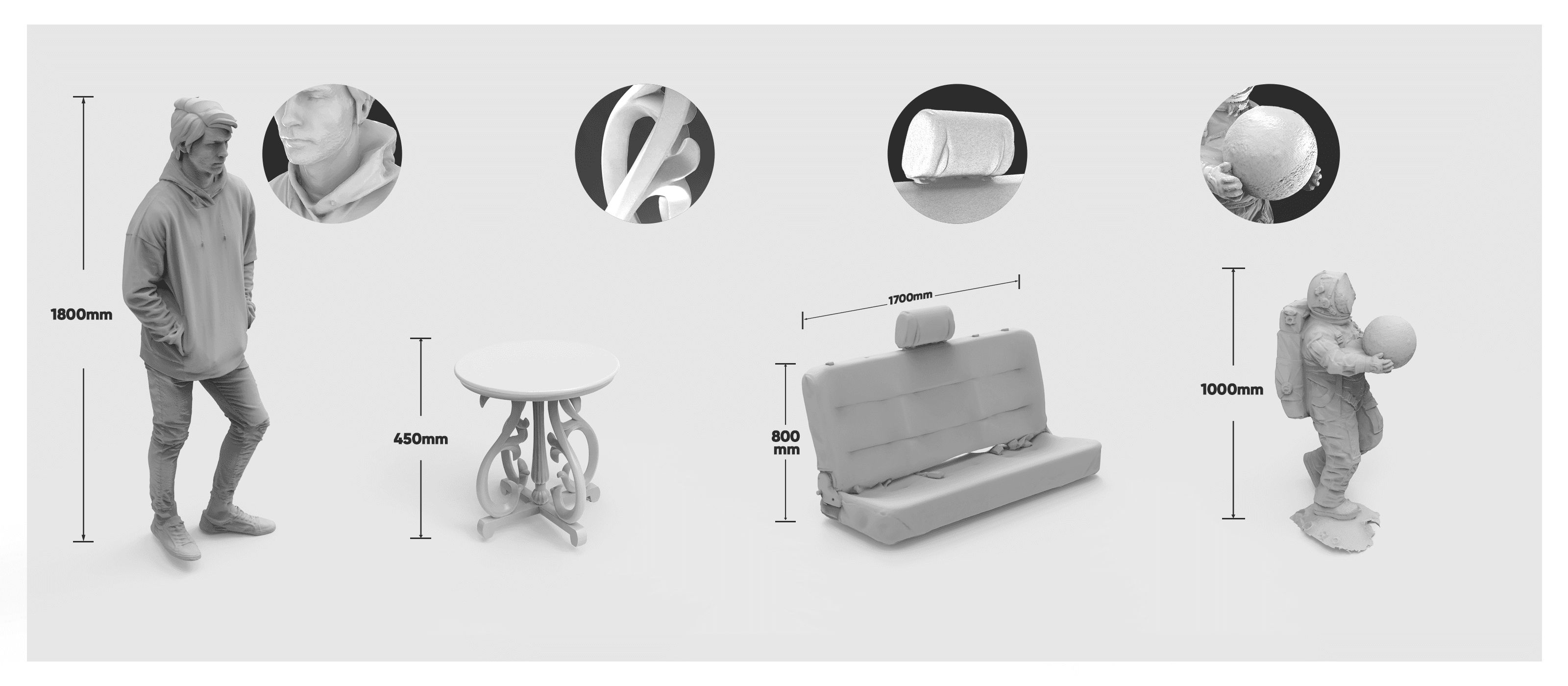

Creativity Unleashed in Every Scan

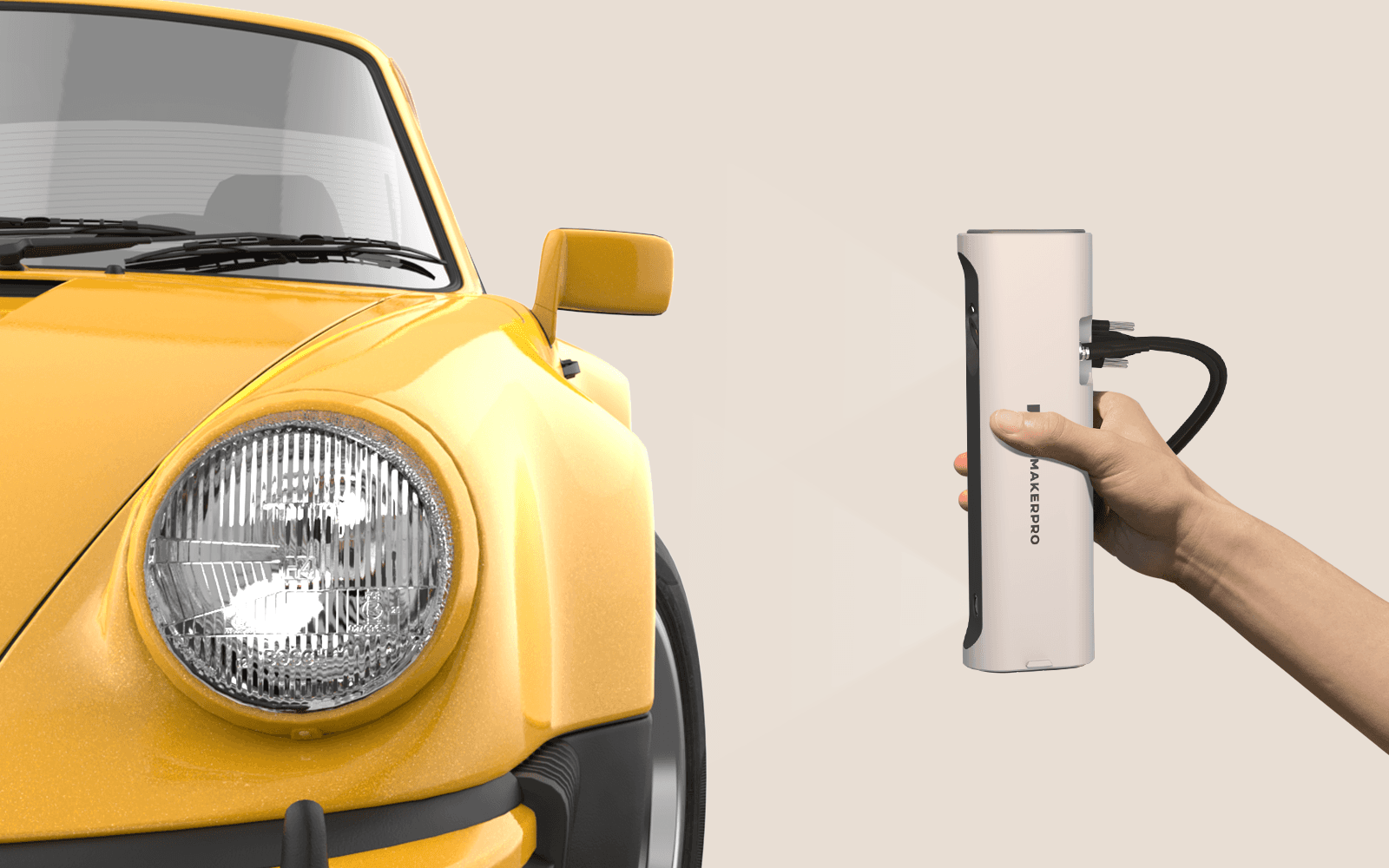

With Lynx, scanning medium to large objects such as human bodies, furniture, automotive parts, and sculptures is a breeze. In just minutes, you can capture complete and detailed models that showcase every intricacy.

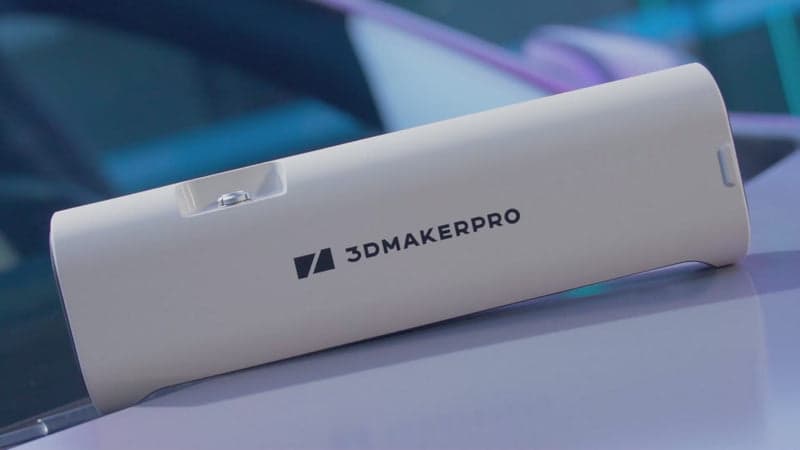

Lynx 3D Scanner
Lynx 3D Scanner - 1
Easy to Use
Easy to Use

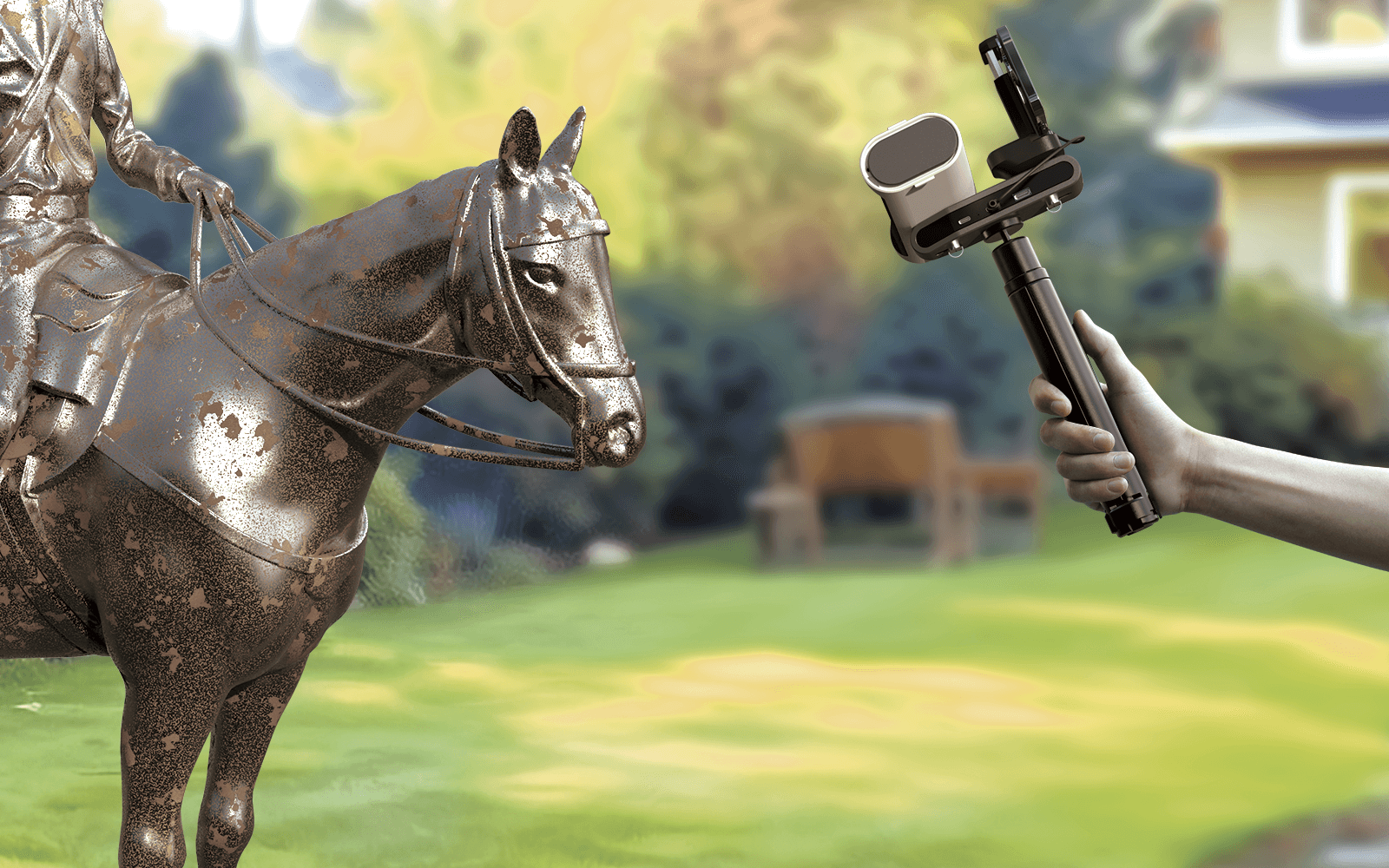

Fast Scan Result Presentation Experience lightning-fast scanning speed with up to 2,000,000 points captured per second. Optional Mobile Scanning With the Connect accessory, Lynx can be connected to your phone for on-the-go scanning. Discover Connect Automatic Model Generation Greatly enhance the ease of scanning with efficient software algorithms, while keeping the PC hardware requirements low.
Easy to Use
Easy to Use - 1

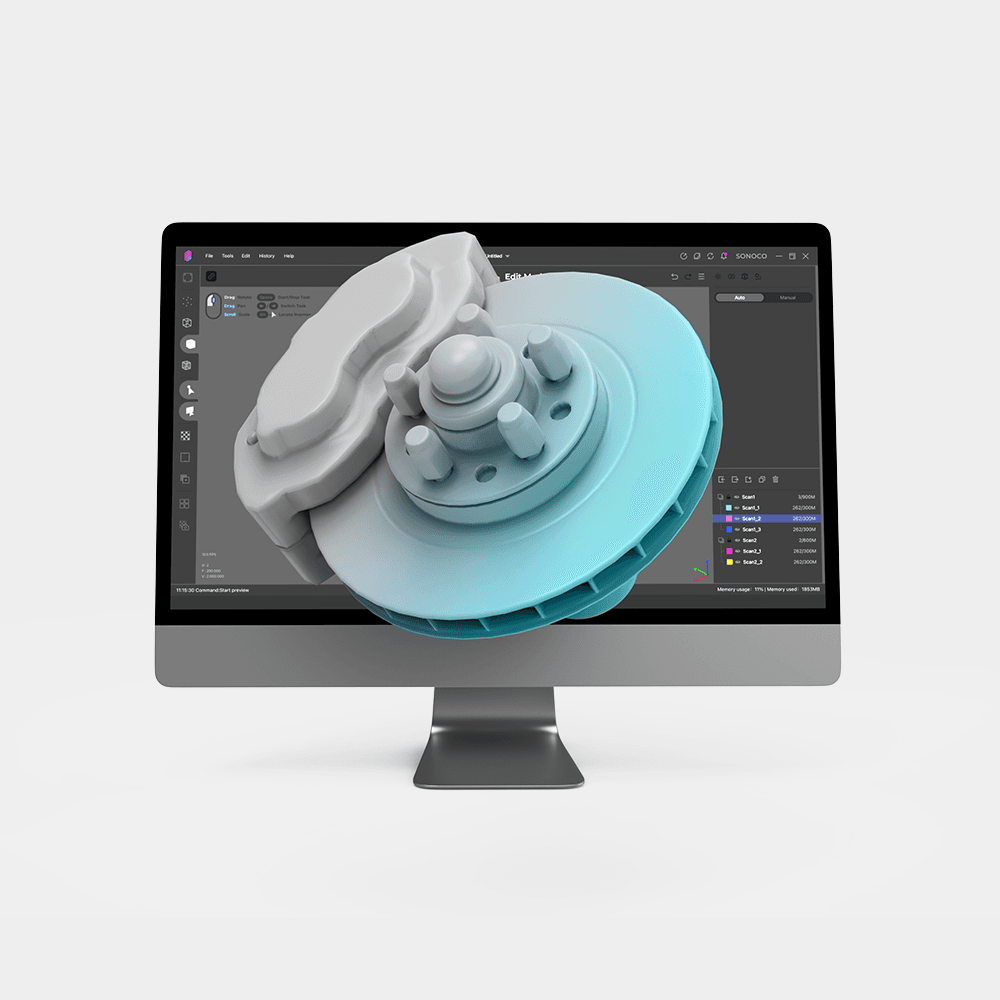

Software Designed for Scanning

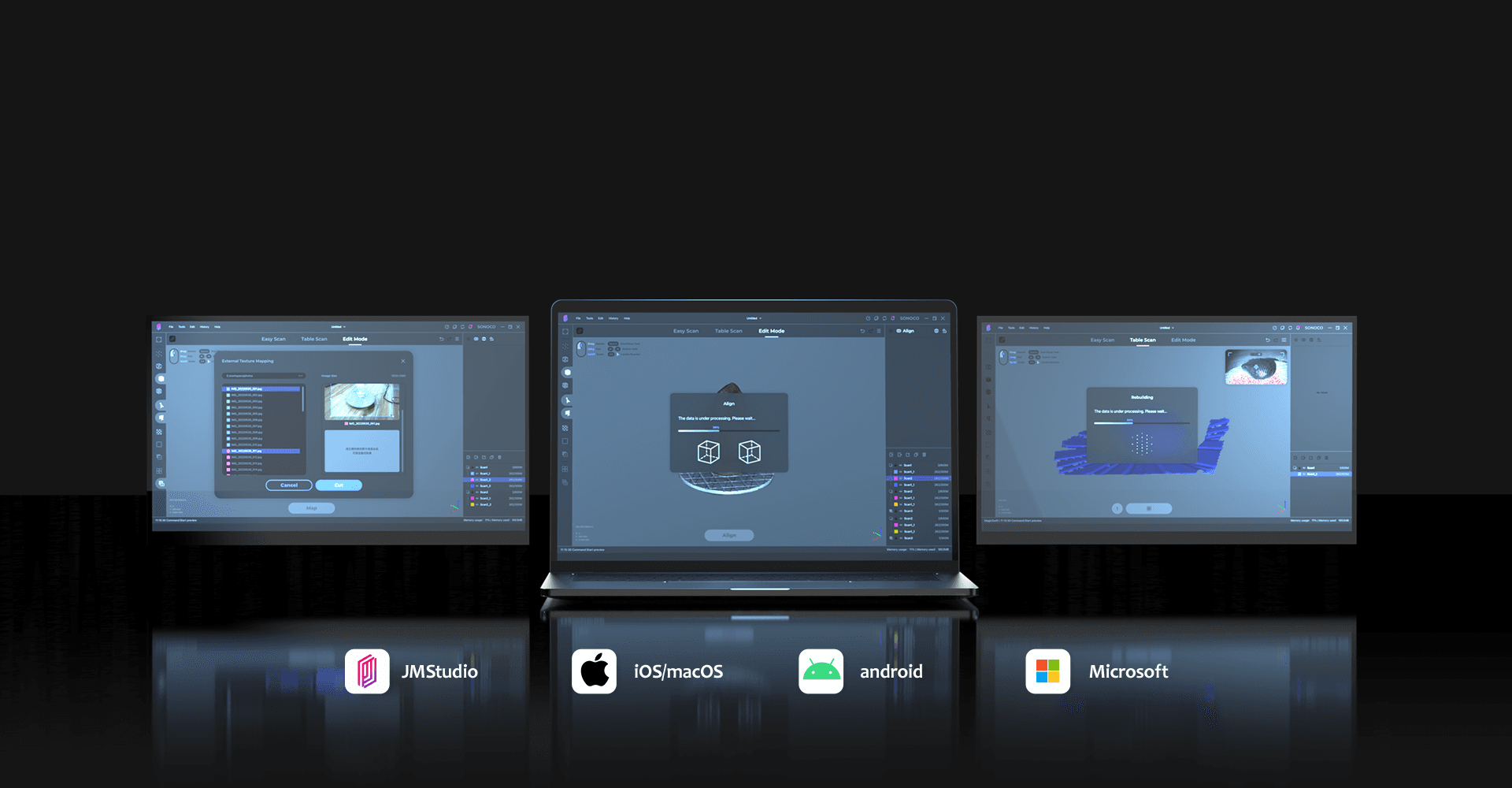

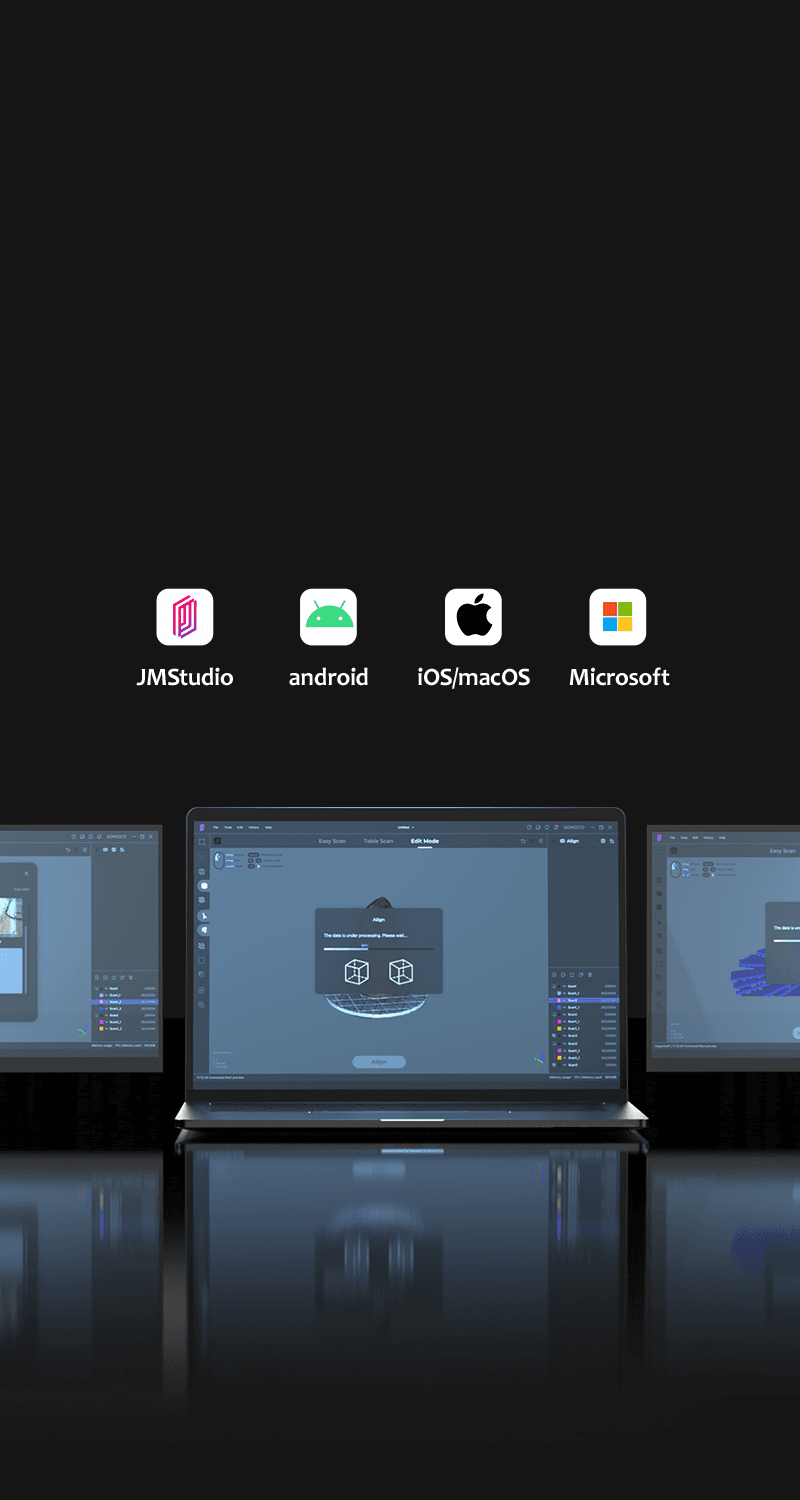

JMStudio is a free scanning software exclusively for 3DMakerpro. It supports Windows, MacOS, as well as iOS and Android devices.Tip: For connectivity with iOS and Android, the Connect accessory > is required.
Software Designed for Scanning
Software Designed for Scanning - 1
Smooth Scanning Experience
Smooth Scanning Experience

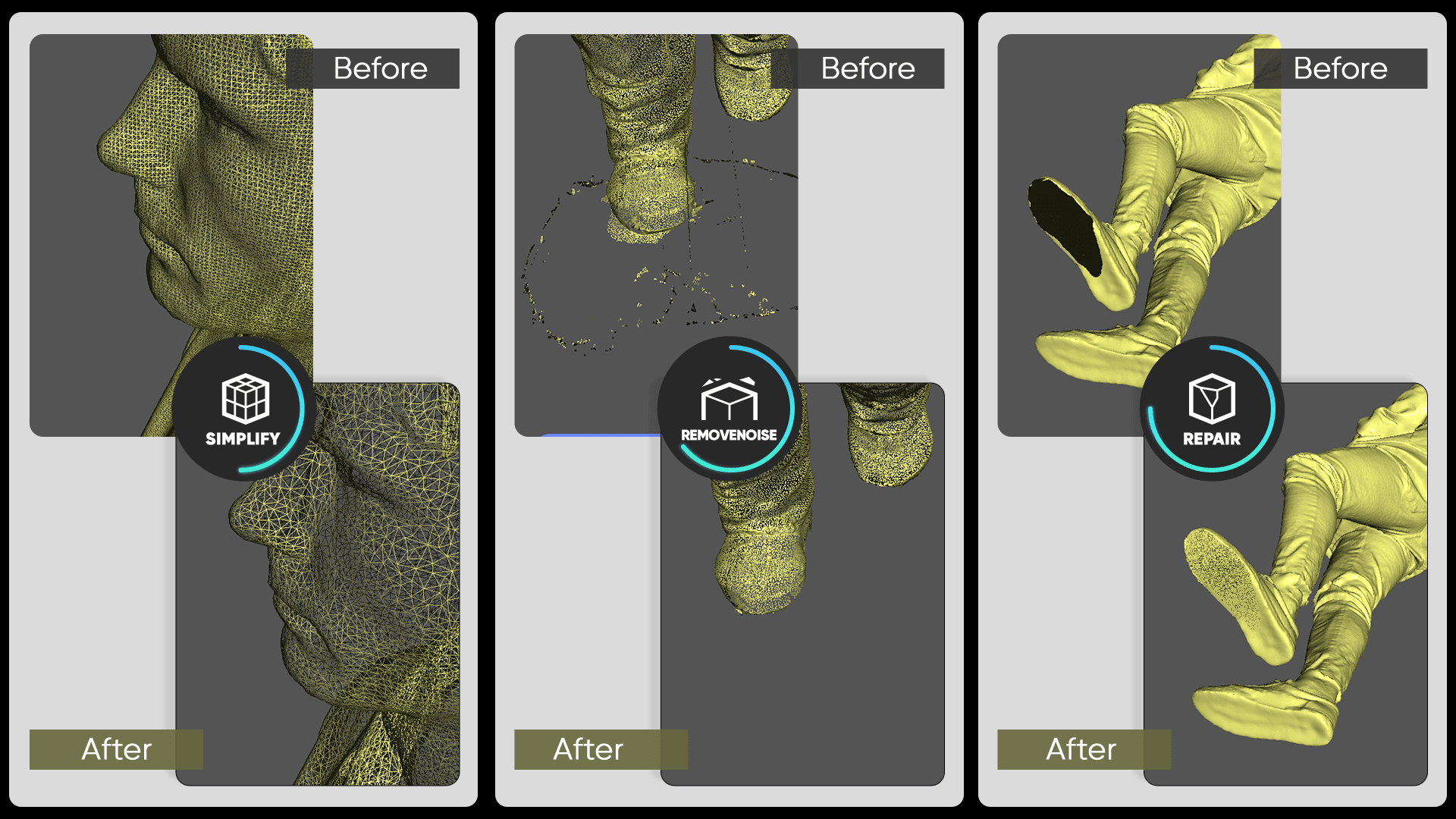

JMStudio offers a simple yet efficient scanning process, delivering excellent 3D scanning results even for first-time users. Intelligent One-Click Editing With integrated smart editing features, JMStudio automates the processing of your scanned projects with just one click, effortlessly producing satisfying 3D models.
Smooth Scanning Experience
Smooth Scanning Experience - 1
Multiple Scanning Modes

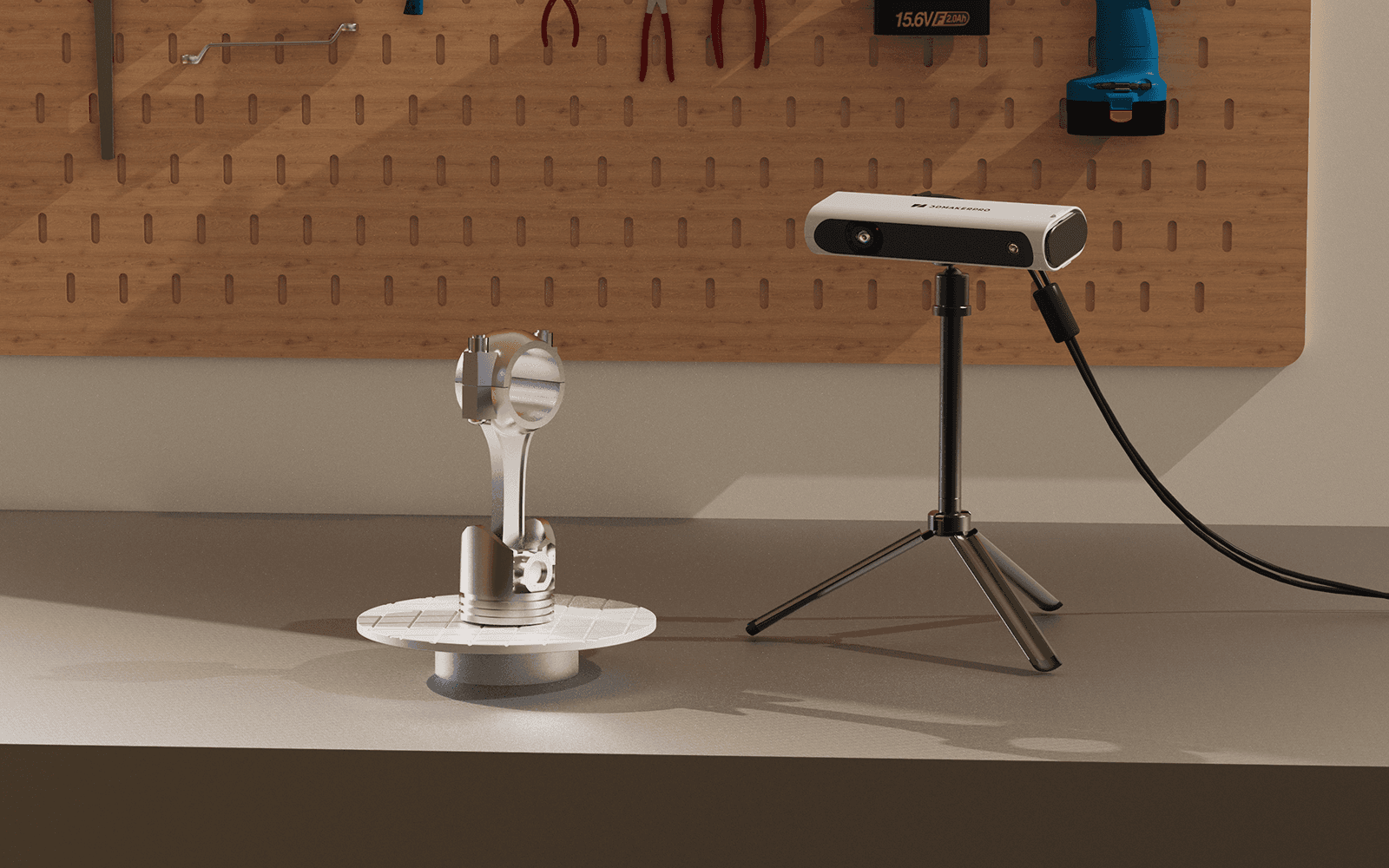

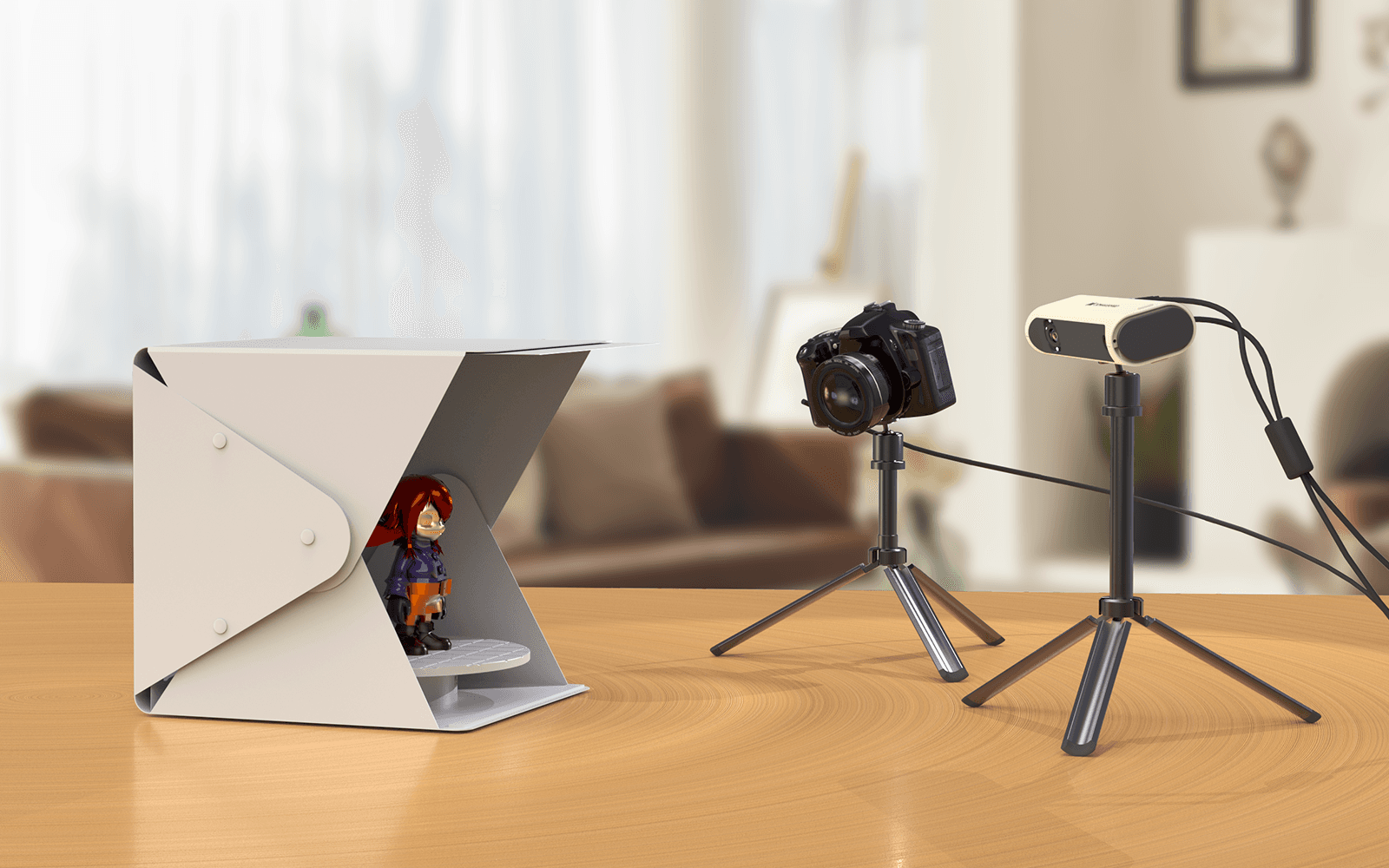

Turntable Mode Handheld Mode Mobile Mode (with Connect) Color Texture Mapping (with Luxury Combo)
Multiple Scanning Modes
3d scanner model
3d scanner model
3d scanner model
Compatible Software
JMStudio supports exporting files in formats like OBJ, STL, ASC, empowering you to edit, refine, render, or print your scans using your preferred design software.
Free 3D Scanning Software by 3DMakerpro
From connection and calibration to optimization and export, JMStudio keeps your entire scanning workflow simple and guided. COMPATIBLE SOFTWAREJMStudio - Built for Your Scanner The exclusive 3D scanning software by 3DMakerpro. Real-time capture, one-click optimization, and seamless export to STL, OBJ, PLY & ASC formats. Real-Time Capture One-Click Optimize STL / OBJ / PLY / ASC Export Free with every scanner
Tech Specs
Lynx 3D Scanner
Lynx 3D Scanner
Scan Performance Parameters: Accuracy: 0.10mm Resolution: 0.30mm Frame rate: 10fps Tracking mode: Visual tracking Work distance: 400-900mm Single capture range: 250 x 400mm Typical object sizes: 100-2000mm Surface Treatment Recommendations: Certain surfaces and materials, such as transparent, reflective, or those hairy area may require a scanning spray for optimal scanning results. Software System Requirements: Output format: OBJ/STL/ASC Compatible system: Windows10/11 64bit, MacOS12/13 Compatible mobile: Android 10.0 or later, iOS 15.0 or later (Extended support) Minimum computer requirements: Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM Recommended computer requirements: Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM Hardware Parameters: Light source: NIR Color texture: Extended support USB interface: USB2.0 Dimensions: 244x75x48mm Weight: 800g
In the box - Standard
Lynx 3D scanner ×1

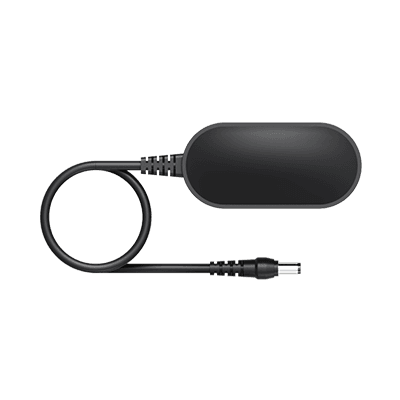

Power cord ×1

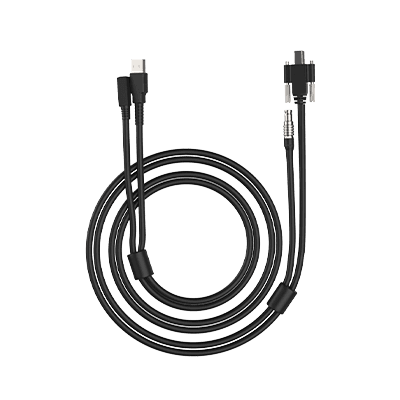

Data cable ×1
In the box - Premium
Lynx 3D scanner ×1
Power cord ×1
Data cable ×1

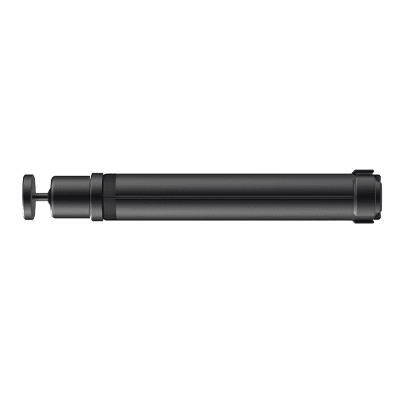

Tripod ×1

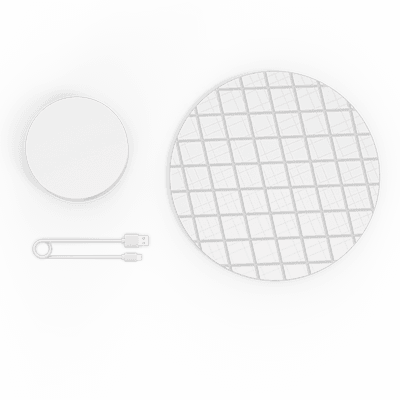

Turntable kit ×1
In the box - Luxury
Lynx 3D scanner ×1
Power cord ×1
Data cable ×1
Tripod ×1
Turntable kit ×1

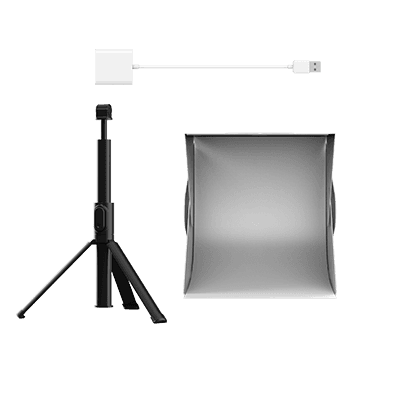

Color kit ×1
What's in the Box

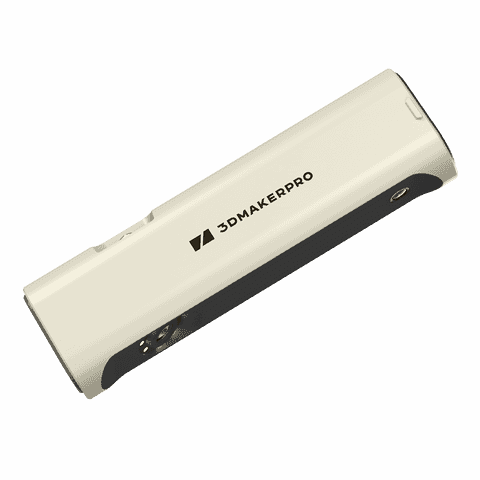

Lynx 3D Scanner x1
Power cord × 1
What's in the Box - 3
Tripod × 1
Turntable kit × 1
Color kit × 1
Technical specificationsDimensions, materials, compatibility and connectivity.
The details that matter
Technical specifications
Manufacturer figures, with plain-English notes where useful.
21 specifications
Key specifications
- Accuracy
- 0.1 mm
- Scan volume (min–max object size)
- 100–2000 mmSupported object sizes, not the sensor working distance.
- Colour / texture capture
- Extended support
- Scan speed
- 10 fps
- Form factor
- Not specified
- Warranty
- Not specifiedCheck the stated cover and any conditions for your purchase.
Additional specifications
- Resolution
- 0.30mm
- Weight
- 800g
- Dimensions
- 244x75x48mm
- Frame rate
- 10fps
- Light source
- NIR
- Output format
- OBJ/STL/ASC
- Tracking mode
- Visual tracking
- Usb interface
- USB2.0
- Work distance
- 400-900mm
- Compatible mobile
- Android 10.0 or later, iOS 15.0 or later (Extended support)
- Compatible system
- Windows10/11 64bit, MacOS12/13
- Single capture range
- 250 x 400mm
- Typical object sizes
- 100-2000mm
- Minimum computer requirements
- Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM
- Recommended computer requirements
- Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM
