Seal Lite 3D Scanner

The details make the difference. Check the fit before you order.

Seal Lite 3D Scanner1 / 5

Seal Lite 3D Scanner

1 / 5

£177.08

SKU 3DM-SEAL-LITE-01

Delivery in 5–7 days.

Your selection

Select a quantity below to get started.

1

Open comparison

Industry leading 0.02mm accuracy Versatile scenarios AI-smart intelligent accessories Introducing SEAL and SEAL Lite, 3DMakerpro's next-generation consumer-grade scanners. With groundbreaking optical solutions, they set a new standard for 3D scanning and redefine the price of consumer-grade scanners！

Features & product detailsExplore the design, capabilities and setup information.

A closer look

Seal Lite 3D Scanner · Fabinity guide to 3DMakerpro features.

Explore product details (15)

Seal Series: Ease of Scan, Art of Detail

Take a look

Geometric

Take a look

  • Take a look - 1

  • Take a look - 2

  • Take a look - 3

  • Take a look - 4

Seal Lite 3D Scanner

Videos

  • Seal Lite 3D Scanner - 1

  • Seal Lite 3D Scanner - 2

  • Seal Lite 3D Scanner - 3

  • Seal Lite 3D Scanner - 4

Introducing Seal Lite

The Cost-Effective and Practical Choice with Precision-Blue Imaging System.

Seal Lite 3D Scanner

  • Seal Lite 3D Scanner - 1

5x More Detail Per Unit

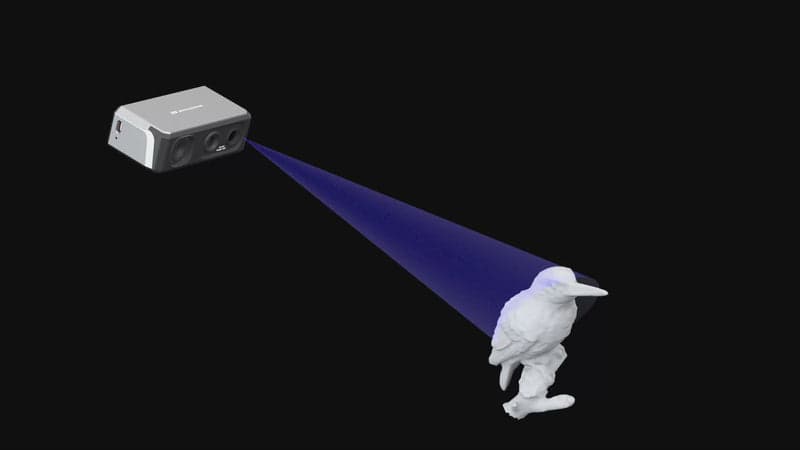

With its shorter wavelength (400 to 500 nano), it projects refined structured light, achieving 0.02mm accuracy.

  • Seal Lite 3D Scanner

Seal Lite 3D Scanner

0.02mm

Accuracy Achieve exceptional 0.02mm accuracy for precise object reproduction. 0.07mm Resolution Experience impressive detail with a 0.07mm minimum point spacing.

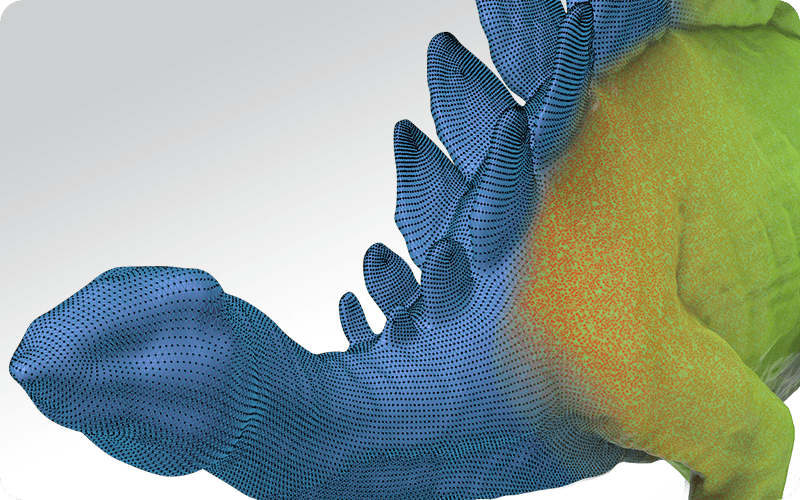

Incredible Precision

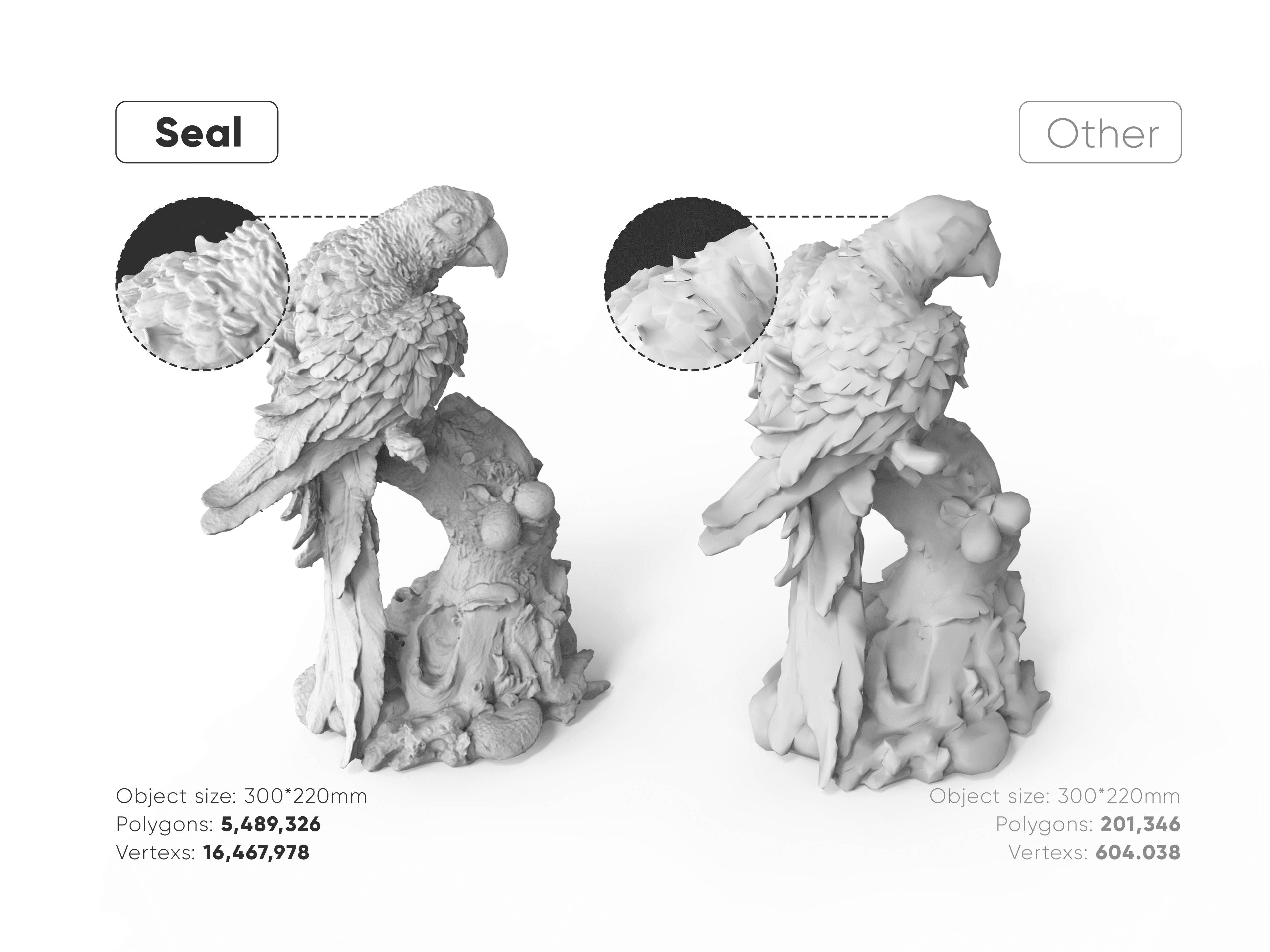

Precision Blue imaging system delivers 0.02mm accuracy and up to 3x the resolution of comparable scanners. Get highly detailed models with ease.

Incredible Precision

  • Incredible Precision - 1

Smooth Scan

Smooth Scan

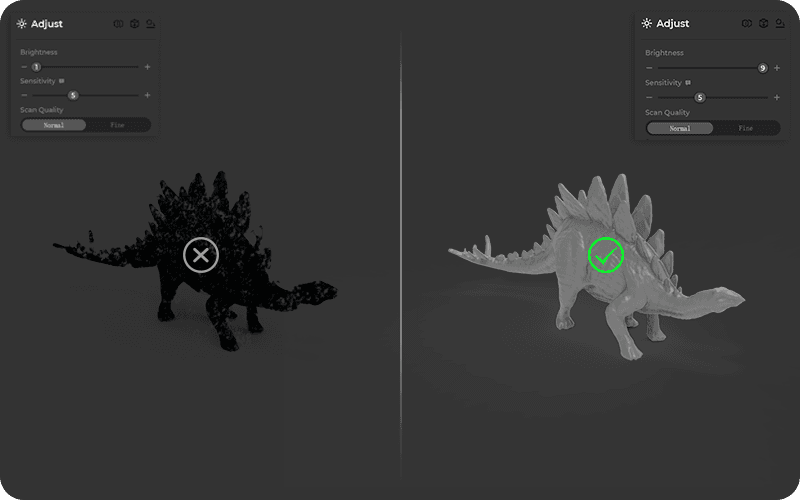

Smooth scanning with Seal's advanced optical system and JMStudio algorithms. Anti-Shaking Lenses Optical stabilization filters out unwanted jitter for smooth, continuous scanning. Lightning-Fast Speed Collecting 100,000 points per second, it swiftly scans body parts and more. Brilliant in Darkness 9-level light adjustment for versatile scanning in varying colors, materials, and lighting conditions.

Smooth Scan

  • Smooth Scan - 1

  • Smooth Scan - 2

Light & Quiet

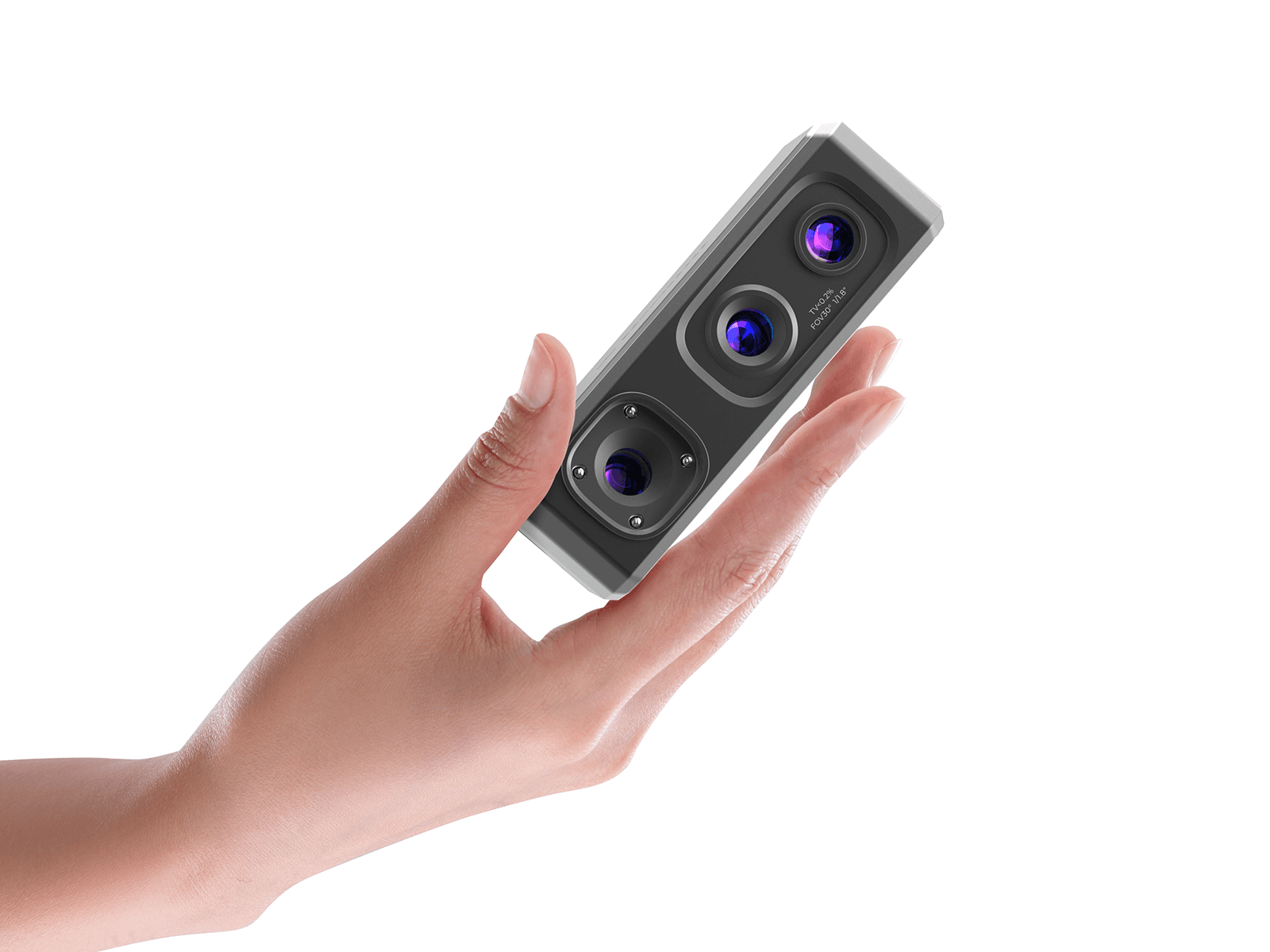

Take Seal Lite's 226g lightweight design with you wherever you need to scan! Experience smooth, quiet scanning with excellent heat dissipation and no fan noise.

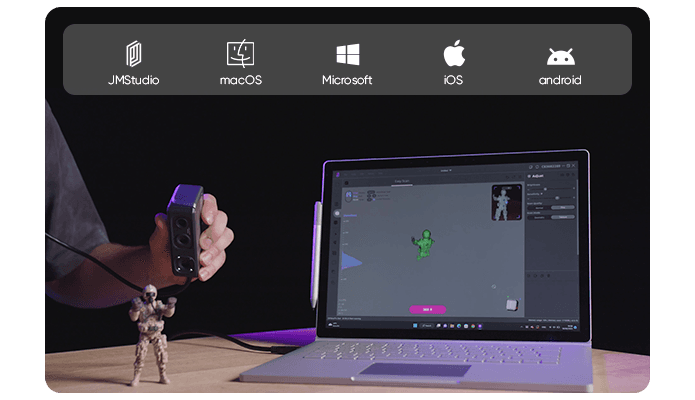

Designed for Easy Scanning

Scan quality depends heavily on software, which is why Prusa's proprietary JMStudio is essential. Years of continuous iteration have resulted in enhanced scanning and editing capabilities. Support for 8 languages and lifetime free OTA updates. Compatible Software JMStudio supports exporting files in formats like OBJ, STL, ASC, empowering you to edit, refine, render, or print your scans using your preferred design software.

Designed for Easy Scanning

  • Designed for Easy Scanning - 1

  • Designed for Easy Scanning - 2

JM_Studio software 3dmakerpro

JMStudio - Built for Your Scanner

COMPATIBLE SOFTWAREJMStudio - Built for Your Scanner The exclusive 3D scanning software by 3DMakerpro. Real-time capture, one-click optimization, and seamless export to STL, OBJ, PLY & ASC formats. Real-Time Capture One-Click Optimize STL / OBJ / PLY / ASC Export Free with every scanner

Intelligent Accessories

3D Scanning Redefined through Intelligence

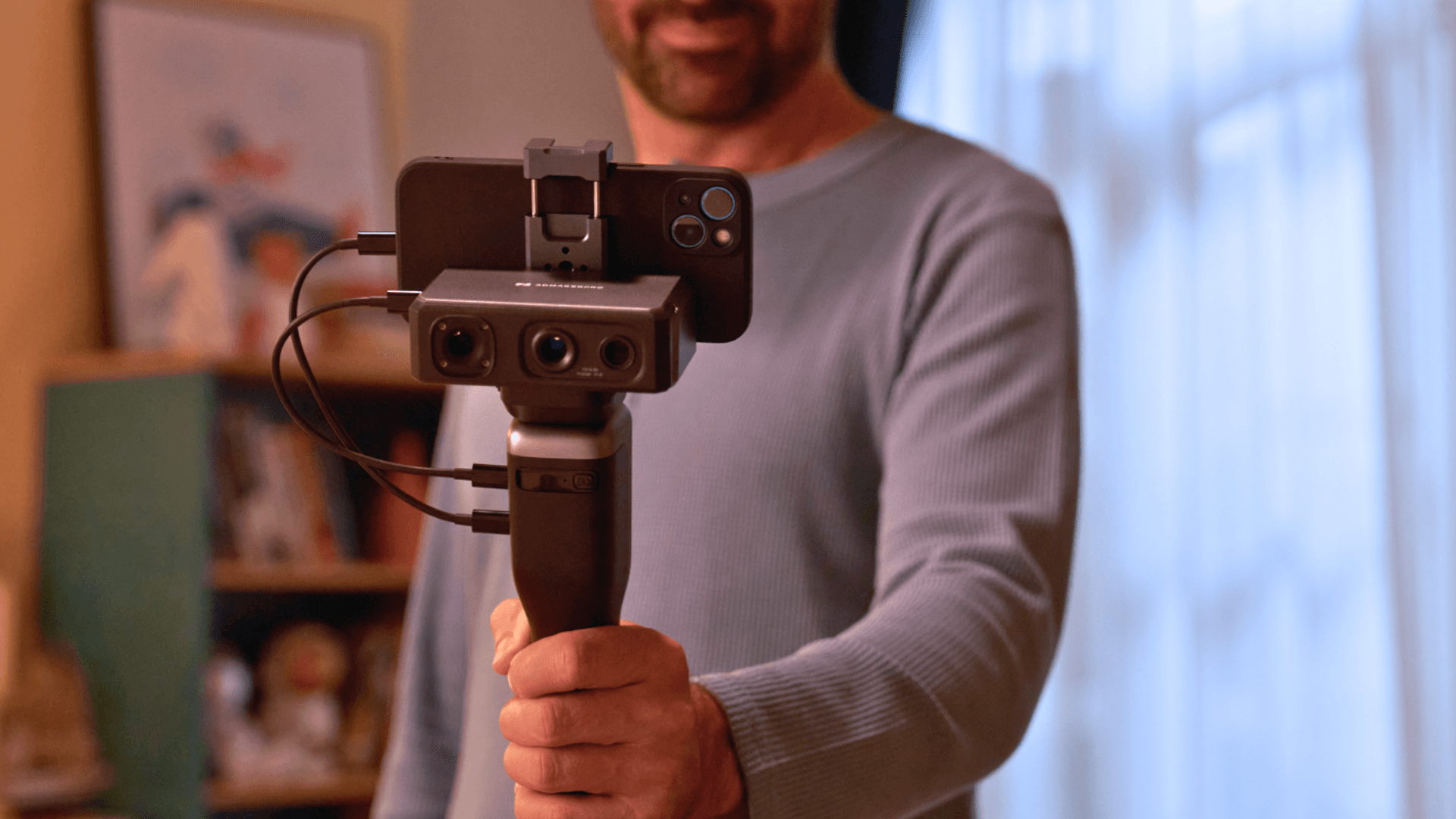

Smart Grip

Smart Grip

Smart Grip connects Seal to your smartphone, enabling on-the-go scanning. Multi-Axis Turntable Easily scan objects with automation that lets beginners scan like a pro, and advanced customization with script editing for experts.

Tech Specs

Seal Lite 3D Scanner

Seal Lite 3D Scanner

Scan Performance Parameters: Accuracy: 0.02mm Resolution: 0.07mm Frame rate: 10fps Tracking mode: Visual tracking Work distance: 180-280mm Single capture range: 100x75mm Typical object sizes: 10-300mm Surface Treatment Recommendations: Certain surfaces and materials, such as transparent, reflective, or those hairy area may require a scanning spray for optimal scanning results. Software System Requirements: Output format: OBJ/STL/PLY/ASC Compatible system: Windows10/11 64bit, MacOS12/13 Compatible mobile: Android 10.0 or later, iOS 15.0 or later (Extended support) Minimum computer requirements: Intel Core i5 8th, 16GB RAM MX250 GPU with 2GB VRAM Recommended computer requirements: Intel Core i7 8th, 16GB RAMNVDIA 3060 GPU with 4GB VRAM Hardware Parameters: Light source: Blue light Color texture: Mono textures USB interface: USB2.0 Dimensions: 110×60×35mm Weight: 226g

In the box - Seal Lite 3D Scanner

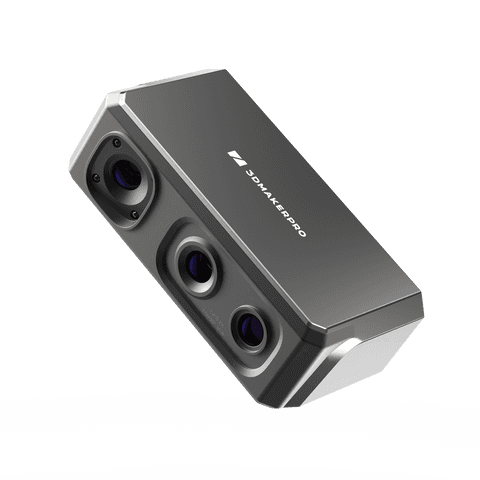

  • Seal Lite 3D scanner × 1

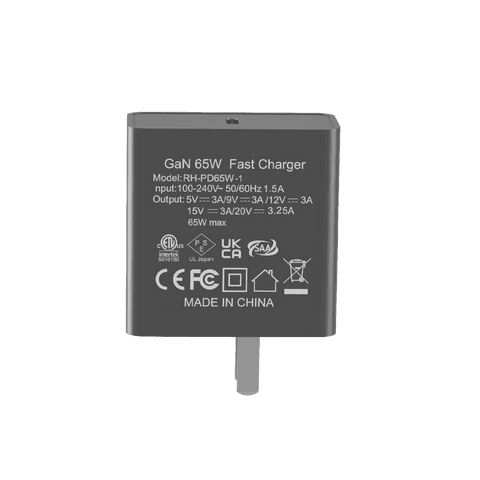

  • PD65W charger × 1

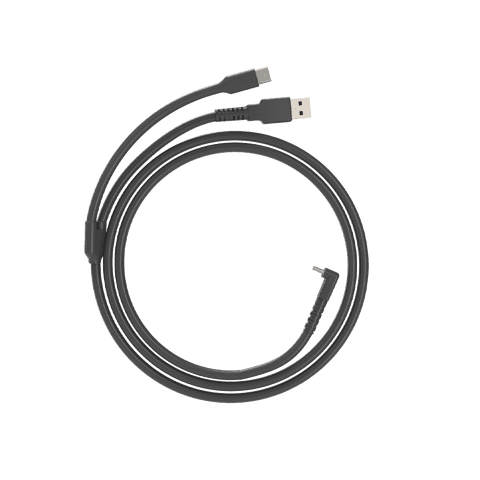

  • Data cable × 1

What's in the Box

  • What's in the Box - 1

  • What's in the Box - 2

  • What's in the Box - 3

Which model is right for you?

FeatureSeal Lite 3D ScannerSeal 3D Scanner
Accuracy0.02mm0.01mm
Resolution0.07mm0.05mm
Color scanningMono texture24-bit color texture
Weight226g254g
Outer casing materialPlasticAluminum alloy

Which model is right for you?

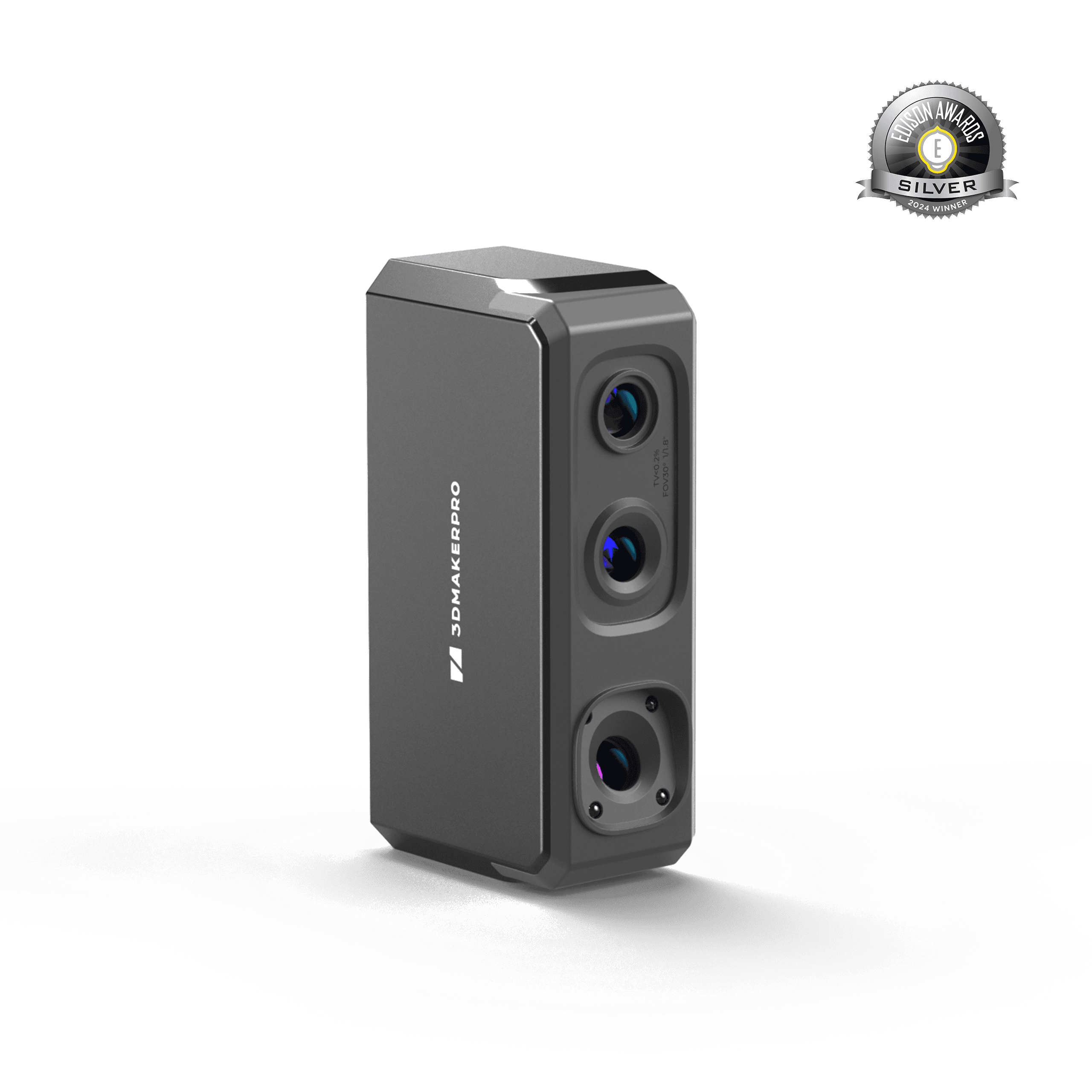

  • 3DMakerpro Seal Lite 3D Scanner, 2024 Edison Awards Silver winner, featuring 0.02mm high-precision scanning.

    3DMakerpro Seal Lite 3D Scanner, 2024 Edison Awards Silver winner, featuring 0.02mm high-precision scanning.

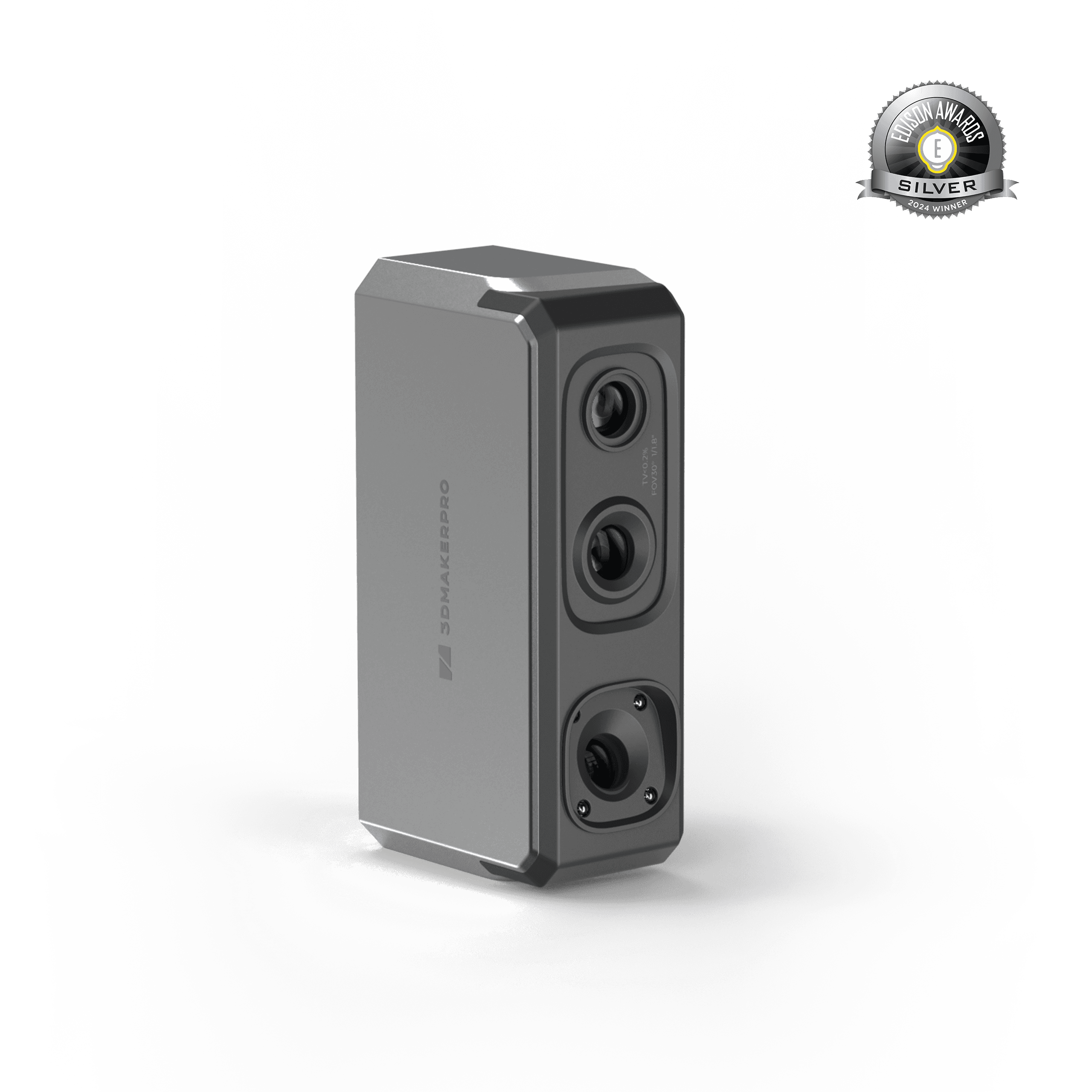

  • 3DMakerpro Seal 3D scanner, 2024 Edison Awards Silver winner, featuring 0.01mm industrial-grade precision.

    3DMakerpro Seal 3D scanner, 2024 Edison Awards Silver winner, featuring 0.01mm industrial-grade precision.

Technical specificationsDimensions, materials, compatibility and connectivity.

The details that matter

Technical specifications

Manufacturer figures, with plain-English notes where useful.

23 specifications

Key specifications

Accuracy
0.02 mm
Scan volume (min–max object size)
10–300 mmSupported object sizes, not the sensor working distance.
Colour / texture capture
Mono textures
Scan speed
10 fps
Form factor
Not specified
Warranty
Not specifiedCheck the stated cover and any conditions for your purchase.

Additional specifications

Resolution
0.07mm
Weight
226g
Dimensions
110×60×35mm
Frame rate
10fps
Light source
Blue light
Output format
OBJ/STL/PLY/ASC
Tracking mode
Visual tracking
Usb interface
USB2.0
Work distance
180-280mm
Color scanning
Mono texture
Compatible mobile
Android 10.0 or later, iOS 15.0 or later (Extended support)
Compatible system
Windows10/11 64bit, MacOS12/13
Single capture range
100x75mm
Typical object sizes
10-300mm
Outer casing material
Plastic
Minimum computer requirements
Intel Core i5 8th, 16GB RAM MX250 GPU with 2GB VRAM
Recommended computer requirements
Intel Core i7 8th, 16GB RAMNVDIA 3060 GPU with 4GB VRAM
