Whale 3D Scanner
The details make the difference. Check the fit before you order.
£5,471.24
SKU 3DM-WHALE-01
Delivery in 5–7 days.
Make it yours
Choose your options. The price updates as you go.
1

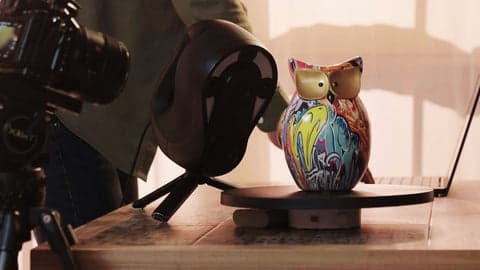

Whale: World’s First Dual-Scan 3D Scanner 0.05 mm Ultra-high Accuracy｜ No Marker Scanning | Scan in Bright Light | Black Object Scanning No Marker Anymore Featuring AI visual tracking technique, Whale can identify the textural features of objects automatically to capture the fine details perfectly. No need to stick markers manually anymore as you did with traditional 3D scanners. AI 3D Scanning Enables Modeling Easier The built-in software incorporates various algorithms of dealing with modeling automatically, which enables model optimization just within one click. Just scan with Whale at ease. 100% Color Fidelity Whale comes with a professional-level color kit and supports the shooting of colorful textures with mainstream DSLR cameras and mirrorless cameras. Whale will automatically map the colors to the models to achieve true color fidelity. Tech Specs Accuracy 0.1mm (wide-core) 0.05mm (micro-core) Resolution 0.5mm (wide-core) 0.2mm (micro-core) Work Distance 650±250mm (wide-core) 300±100mm (micro-core) Single Capture Range 536×371mm (wide-core) 300×200mm (micro-core) Frame Rate 10fps Light Source NIR/LED Alignment Automatic matching Texture Scan Yes Output format OBJ/STL/ASC/PLY Weight ≤1500g Dimensions 230×148×188mm required PC WIN10 64bit/MacOS 12 (support M1)
Features & product detailsExplore the design, capabilities and setup information.
A closer look
Whale 3D Scanner · Fabinity guide to 3DMakerpro features.
Explore product details (8)
Product details
Whale 3D Scanner - 1
Whale 3D Scanner - 2
Whale 3D Scanner - 3
Whale 3D Scanner - 4
Whale: Dual Scanner Captures it All

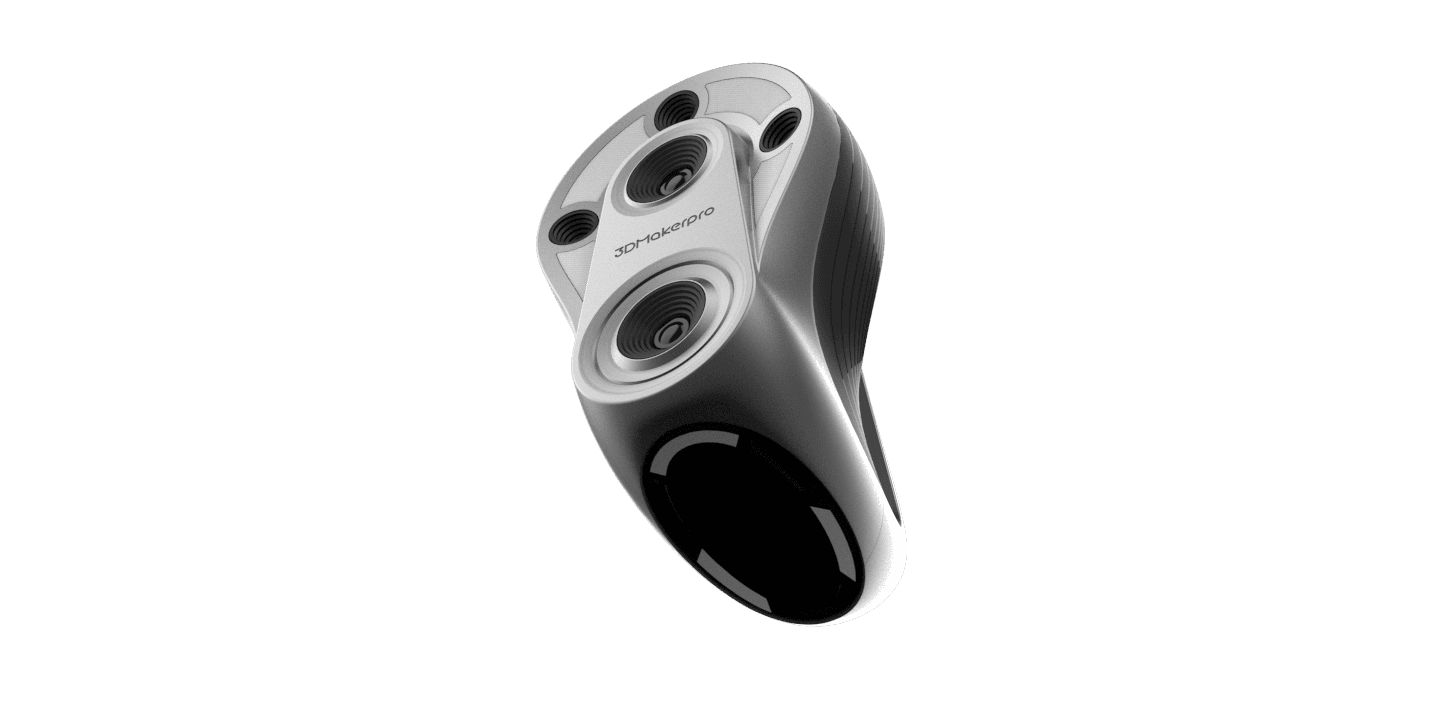

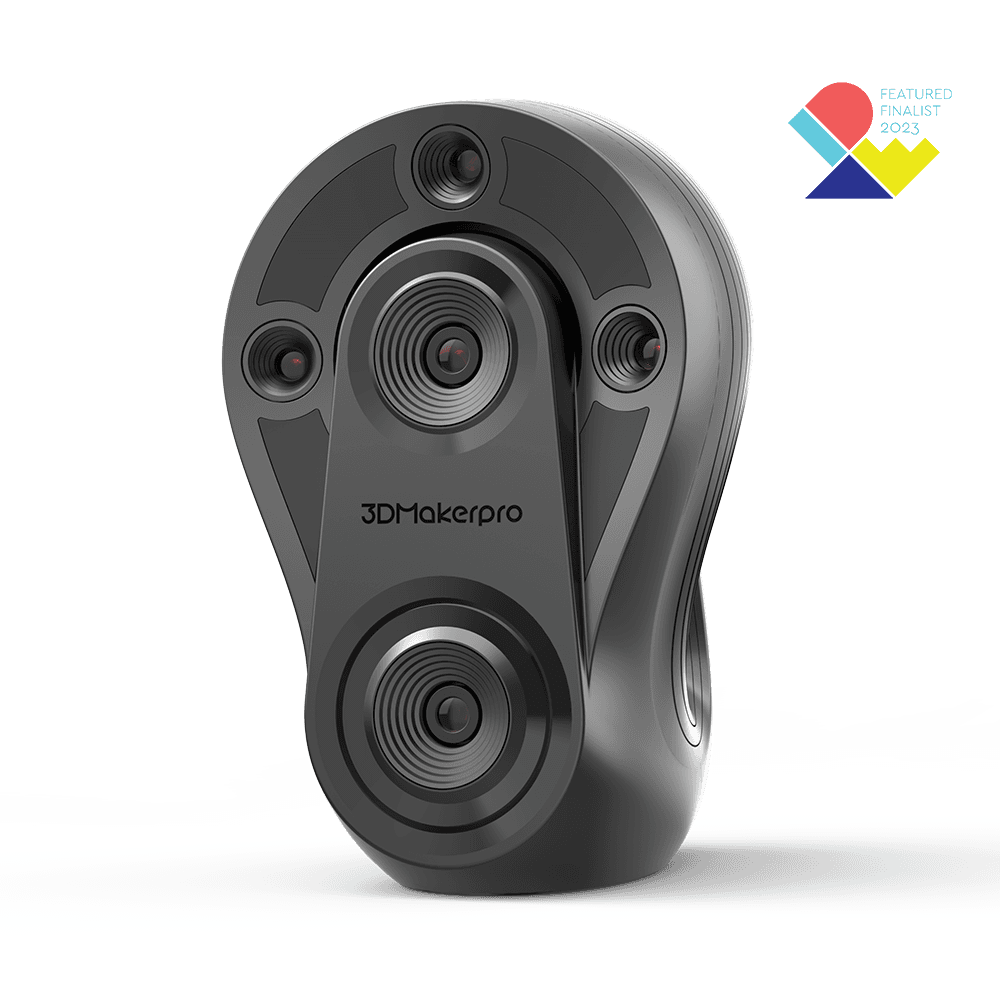

Whale 3D Scanner
Dual Scanner Core 0.05mm Accuracy 0.2mm High Resolution No Marker 10fps Scan Speed

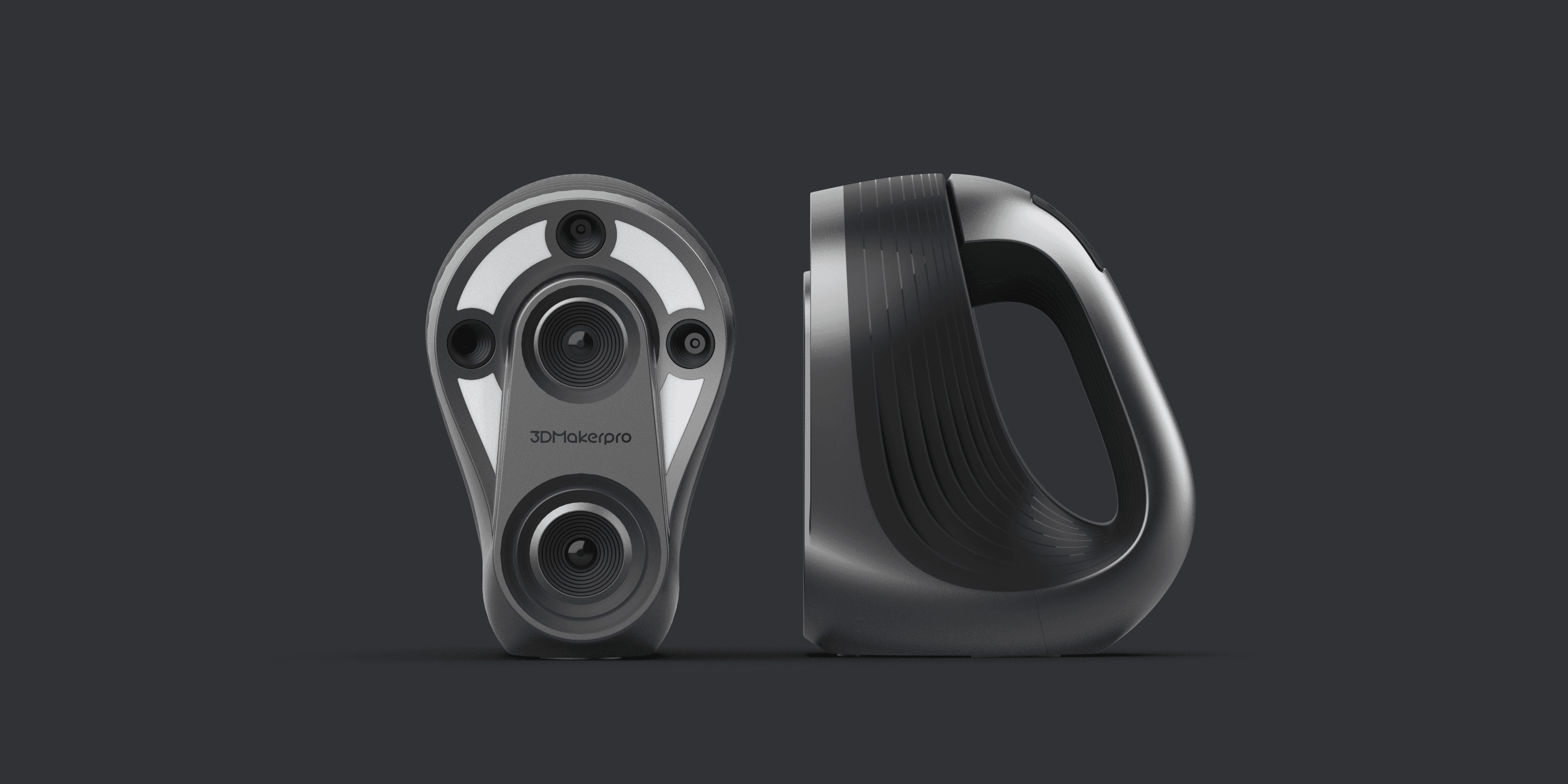

3d maker
3d maker
3d maker
face scanner
Dual Cores
Dual Cores 0.05 mm Ultra-high Accuracy The Whale scanner is ideal for modifying and designing. lt can swiftly scan industrial spare parts with complicated forms and surfaces and generate models with a scanning resolution of 0.2mm High Resolution.
Whale 3D Scanner
Micro-Core Accuracy: 0.05mm Resolution: 0.2mm Work Distance: 300±100mm Single Capture Range: 200×100mm Wide-Core Accuracy: 0.1mm Resolution: 0.5mm Work Distance: 650±250mm Single Capture Range: 530×370mm
Whale 3D Scanner - 1
3d scan
Dual
Dual Scanner - All-in-One Scans large structural components, as big as a car hood, while at the same time, accurately scanning all the object's tiny details. Dark Dark Object Scan Scans in bright light even in full sunshine, scans dark colors, even completely black objects.
Reverse Engineering Application
01Reverse Engineering Application Whale's swift 3D scanning capability is ideal for modifying, designing, and optimizing even the most complex industrial spare parts. Complicated forms and surfaces are quickly and easily scanned and generate precise models with 0.05mm optimum accuracy. Whale is capable of a reverse engineering scanner. It reconstructs precise CAD models that appear as a mirror image of the original congruent in every detail. Users have the power to reimagine, repair, and even redefine existing designs. 02Industry Specific Applications Whale’s accuracy makes it ideal for highly specialized tasks. This includes a diverse range of applications – from recording the specifics of a crime scene, or an archaeological relic, to vintage objects and significant historical items. The scanner accurately reproduces the color and form of all manner of items - furniture, evidence markers, and details that may need to be recorded from walls and other textured surfaces. Whale’s capacity to generate impressions with a scanning precision of up to 0.05mm, contributes to intensely clear and highly detailed models. Whale is as accurate in scanning the minute details of small items, like bullets, or as broad and bulky as is required to scan a sofa or even an entire whole automobile. 03Medical Applications One of Whale's most sophisticated characteristics is its capability to gather comprehensive face and other physical data in seconds, which is setting a benchmark in the healthcare field. Whale provides personalized healthcare solutions in both pre-and post-operative analysis, and through the collection of data that aids the likes of plastic and rehabilitative surgery.
Reverse Engineering Application

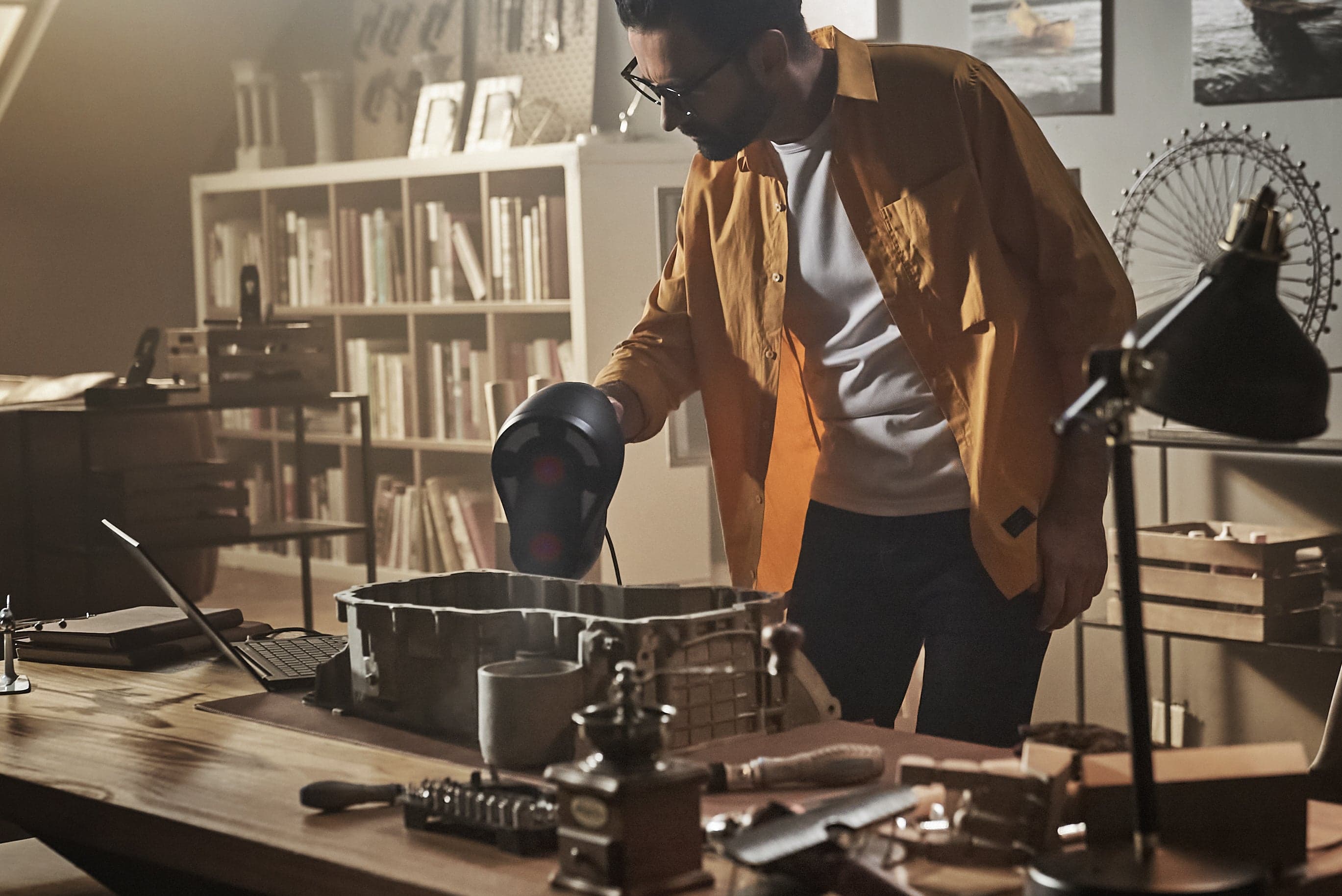

3d portable scanner
3d maker
Tech Specs
| Feature | Configuration 1 | Configuration 2 |
|---|---|---|
| Accuracy | 0.10mm (wide-core) | 0.05mm (micro-core) |
| Resolution | 0.50mm (wide-core) | 0.20mm (micro-core) |
| Work Distance | 650±250mm (wide-core) | 300±100mm (micro-core) |
| Single Capture Range | 530×370mm (wide-core) | 200×100mm (micro-core) |
| Frame Rate | 10fps | - |
| Light Source | NIR | - |
| Alignment | Yes | - |
| Texture Scan | Automatic matching | - |
| Output format | OBJ/STL/ASC/PLY | - |
| Weight | ≤1500g | - |
| Dimensions | 230×148×188mm | - |
| Required PC | WIN10 64bit/MacOS 12 (support M1) | - |
| Surface Treatment Recommendations | Certain surfaces and materials, such as transparent, reflective, or those hairy area may require a scanning spray for optimal scanning results. | - |

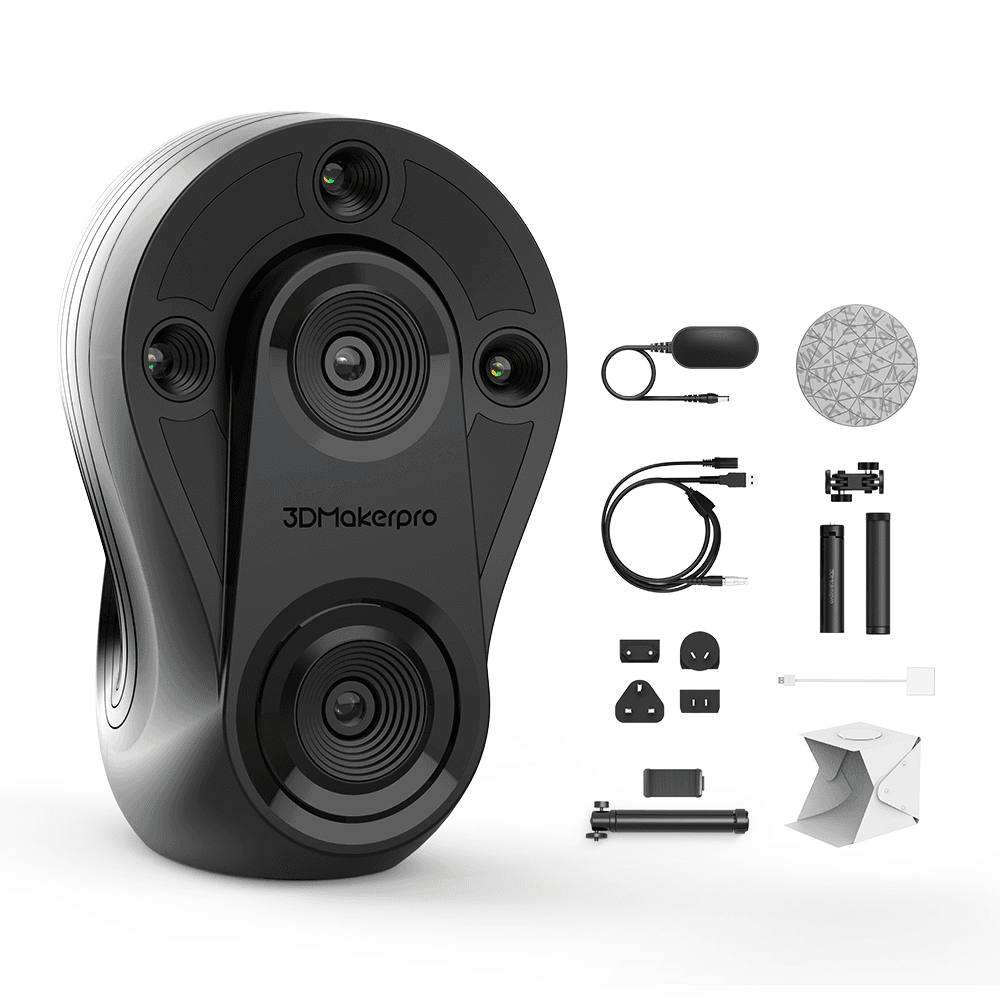

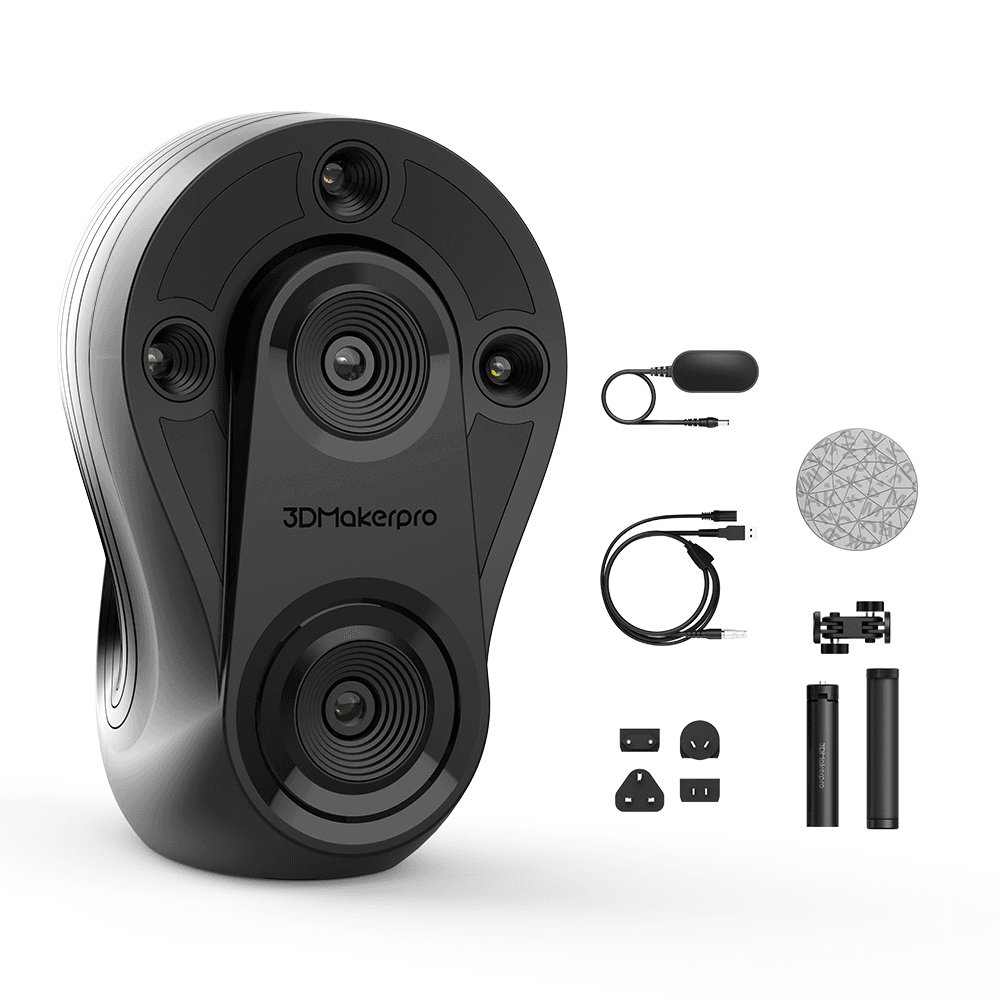

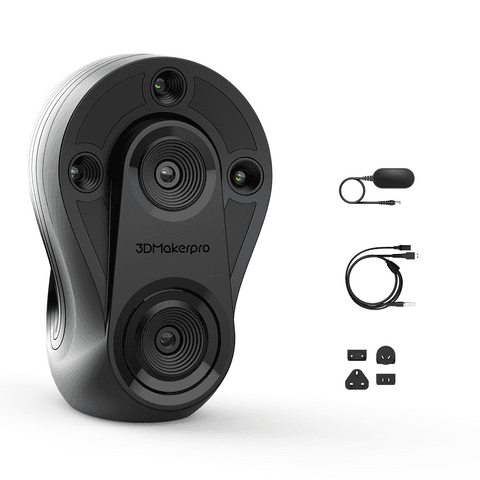

What's in the Box
What's in the Box - 1
What's in the Box - 2
What's in the Box - 3
Advanced Software Support
The JMStudio program has a streamlined and easy-to-operate UI, that allows you to perform each operation quickly. It is compatible with all mainstream professional software applications and supports three standard output formats (STL\OBJ\PLY).
Advanced Software Support
Unity
3D Systems
Autodesk Maya
Autodesk Meshmixer
Unreal Engine
AutoCAD
SketchUp
MeshLab
3ds Max
Rhinoceros 3D
ZBrush
Free 3D Scanning Software by 3DMakerpro
From connection and calibration to optimization and export, JMStudio keeps your entire scanning workflow simple and guided. COMPATIBLE SOFTWAREJMStudio - Built for Your Scanner The exclusive 3D scanning software by 3DMakerpro. Real-time capture, one-click optimization, and seamless export to STL, OBJ, PLY & ASC formats. Real-Time Capture One-Click Optimize STL / OBJ / PLY / ASC Export Free with every scanner
Technical specificationsDimensions, materials, compatibility and connectivity.
The details that matter
Technical specifications
Manufacturer figures, with plain-English notes where useful.
17 specifications
Key specifications
- Accuracy
- 0.1mm (wide-core) 0.05mm (micro-core)
- Scan volume (min–max object size)
- Not specifiedSupported object sizes, not the sensor working distance.
- Colour / texture capture
- Not specified
- Scan speed
- 10 fps
- Form factor
- Not specified
- Warranty
- Not specifiedCheck the stated cover and any conditions for your purchase.
Additional specifications
- Resolution
- 0.5mm (wide-core) 0.2mm (micro-core)
- Weight
- ≤1500g
- Alignment
- Automatic matching
- Dimensions
- 230×148×188mm
- Frame rate
- 10fps
- Required pc
- WIN10 64bit/MacOS 12 (support M1)
- Light source
- NIR/LED
- Texture scan
- Yes
- Output format
- OBJ/STL/ASC/PLY
- Work distance
- 650±250mm (wide-core) 300±100mm (micro-core)
- Single capture range
- 536×371mm (wide-core) 300×200mm (micro-core)
