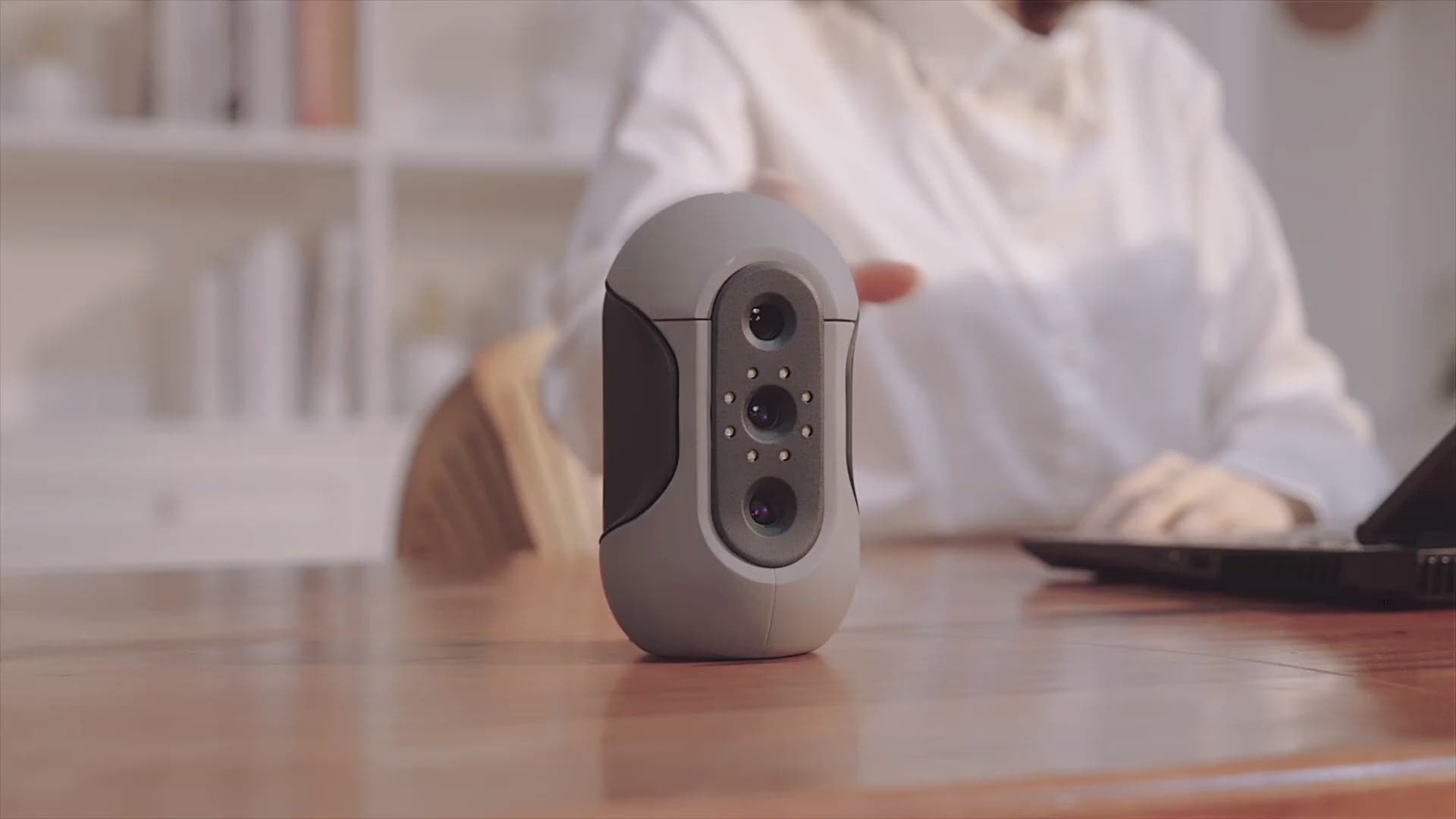

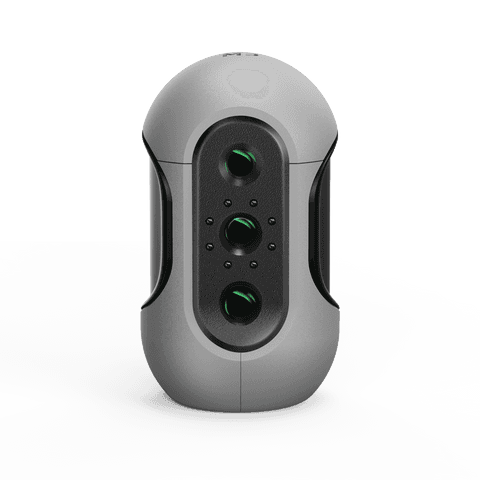

Mole 3D Scanner

The details make the difference. Check the fit before you order.

Mole 3D Scanner1 / 5

Mole 3D Scanner

1 / 5

£493.24

SKU 3DM-MOLE-01

Contact us for availability and delivery information.

Make it yours

Choose your options. The price updates as you go.

1

Open comparison

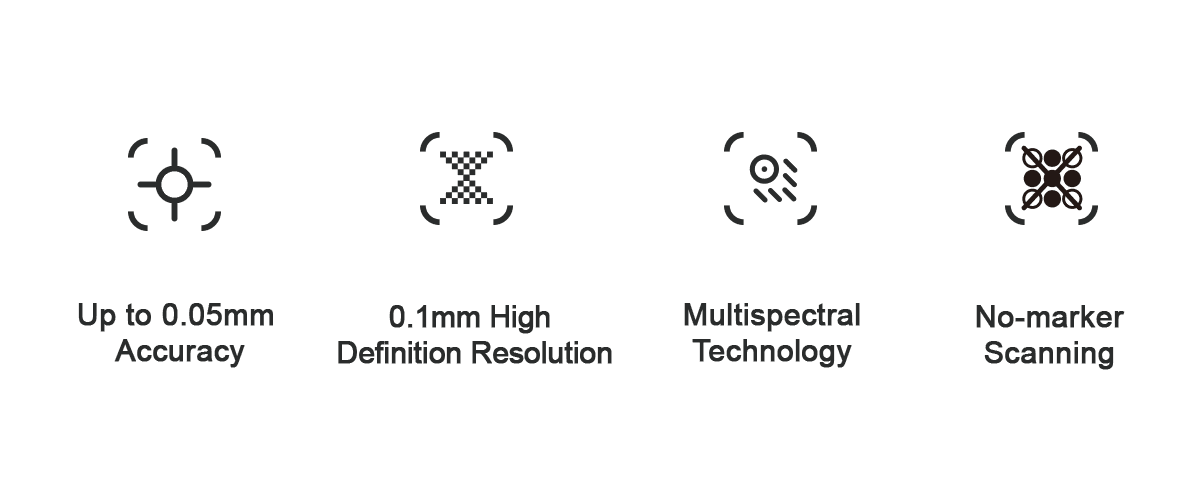

· 0.05MM ACCURACY· 0.1MM RESOLUTION· MULTISPECTRAL TECHNOLOGY· DEDICATED MOBILE SCANNING APP Mole features high precision, scanning objects with an accuracy of up to 0.05mm to capture fine details. With a single capture range of 200*100mm and a scanning speed of up to 10FPS, it can quickly scan a medium-sized object. All of this can be output in the most widely used 3D file formats OBJ/STL/PLY, supporting immediate application or further creativity.

Features & product detailsExplore the design, capabilities and setup information.

A closer look

Mole 3D Scanner · Fabinity guide to 3DMakerpro features.

Explore product details (13)

3DMakerpro Mole: Precise Accuracy, Seamless Tracking

3DMakerpro Mole: Precise Accuracy, Seamless Tracking

3DMakerpro Mole: Precise Accuracy, Seamless Tracking

  • 3DMakerpro Mole: Precise Accuracy, Seamless Tracking - 1

A Cumulation of Hardware and Software

Mole features high precision, 3D scanning objects with an accuracy of up to 0.05mm to capture fine details. With a single capture range of 200*100mm and a scanning speed of up to 10FPS, it can quickly scan a medium-sized object. All of this can be output in the most widely used 3D file formats OBJ/STL/PLY, supporting immediate application or further creativity.

3d scanner model

3d scanner model

  • Mole 3D Scanner - 1

3d camera scanner

3d camera scanner

  • 3d camera scanner

    3d camera scanner

3d scanner model

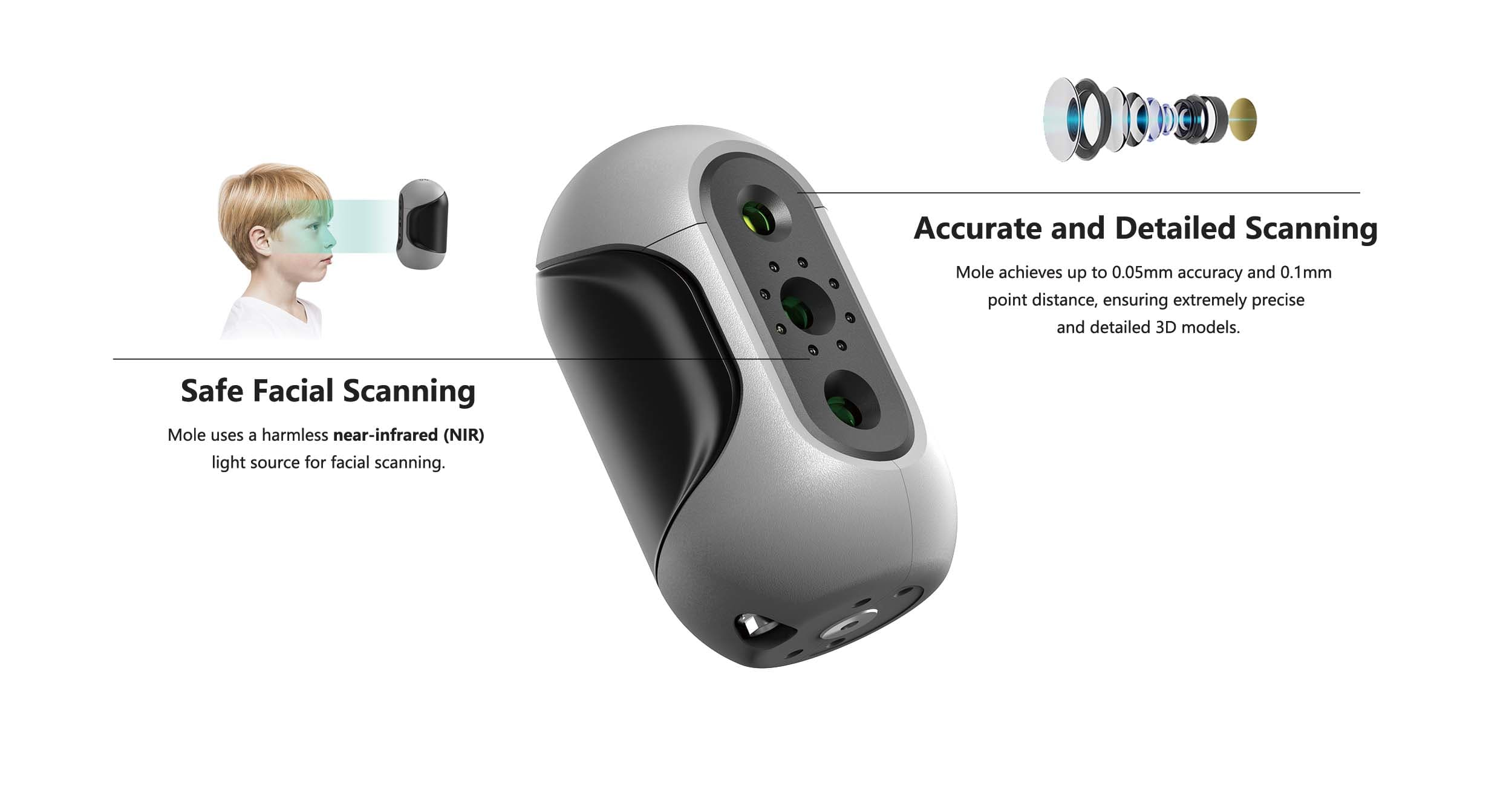

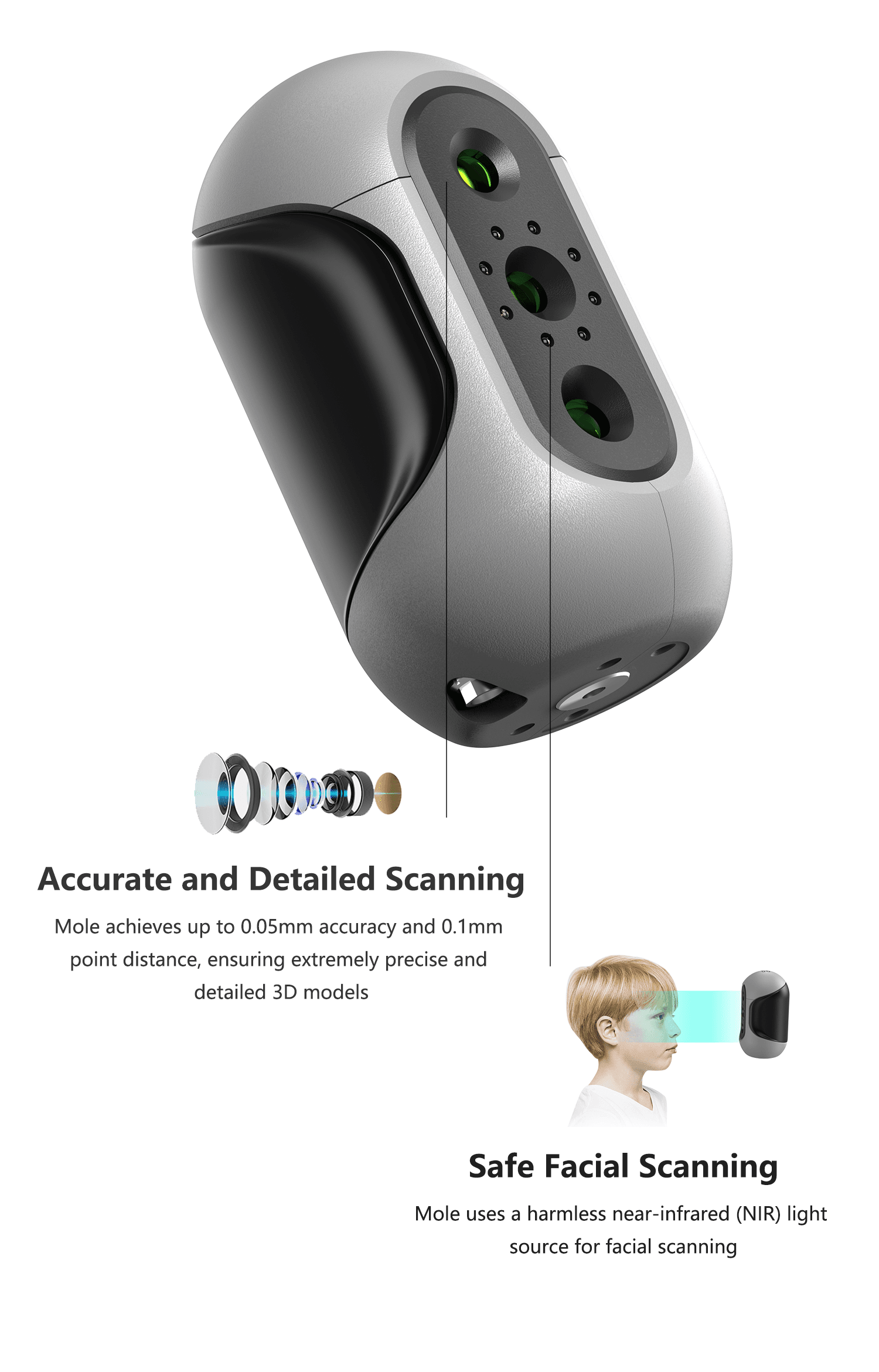

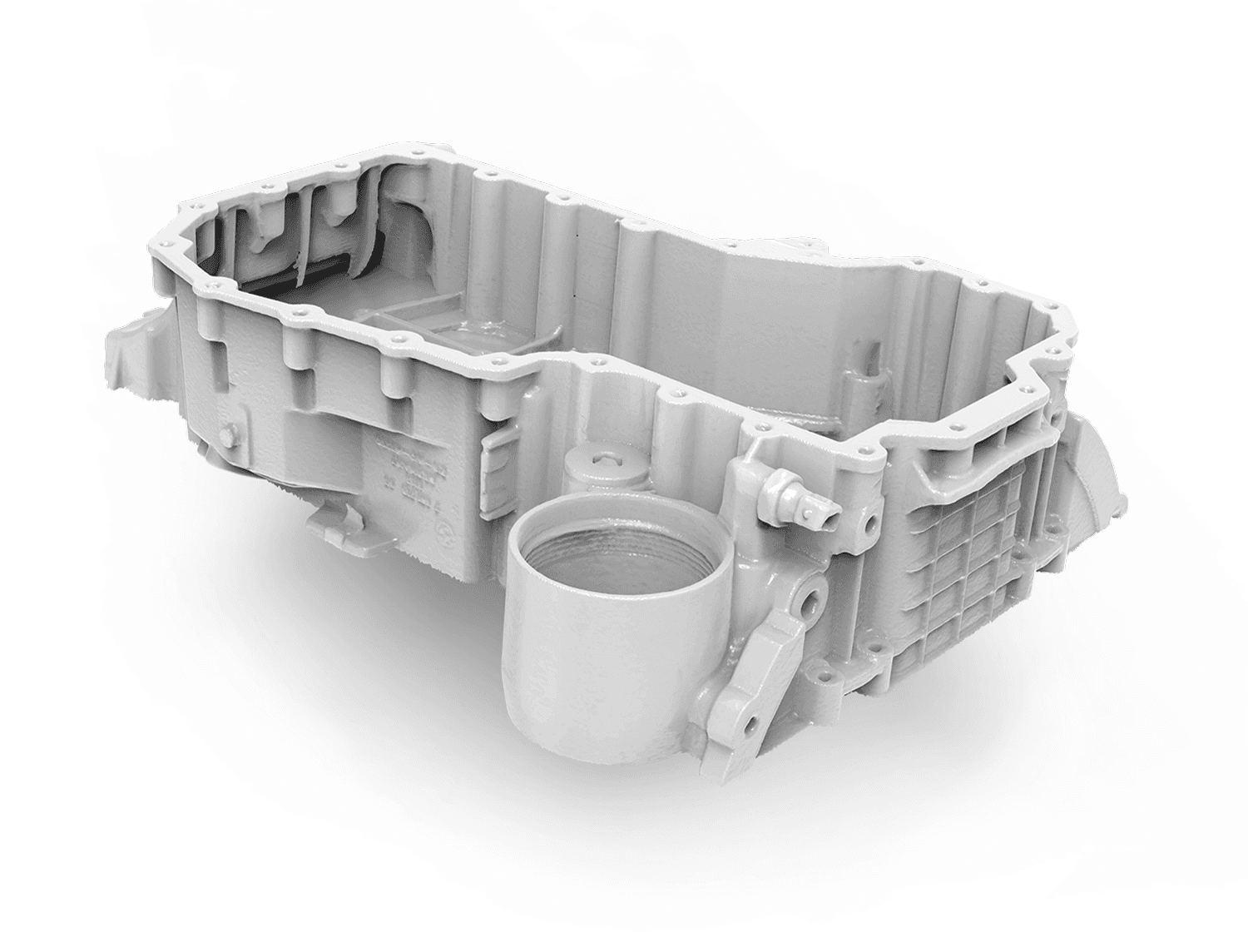

0.05mm Accuracy, 0.1mm Resolution

With high-precision and high-resolution lenses, Mole can accurately recreate the size of scanned objects and capture more intricate details. Ultra-Clear Texture Mode Accurately reproduce the color and texture of your sneakers with high-fidelity texture mapping. Tips: Color models require the color kit (included in the luxury combo).

0.05mm Accuracy, 0.1mm Resolution

  • 3d scanner model

    3d scanner model

3d scanner

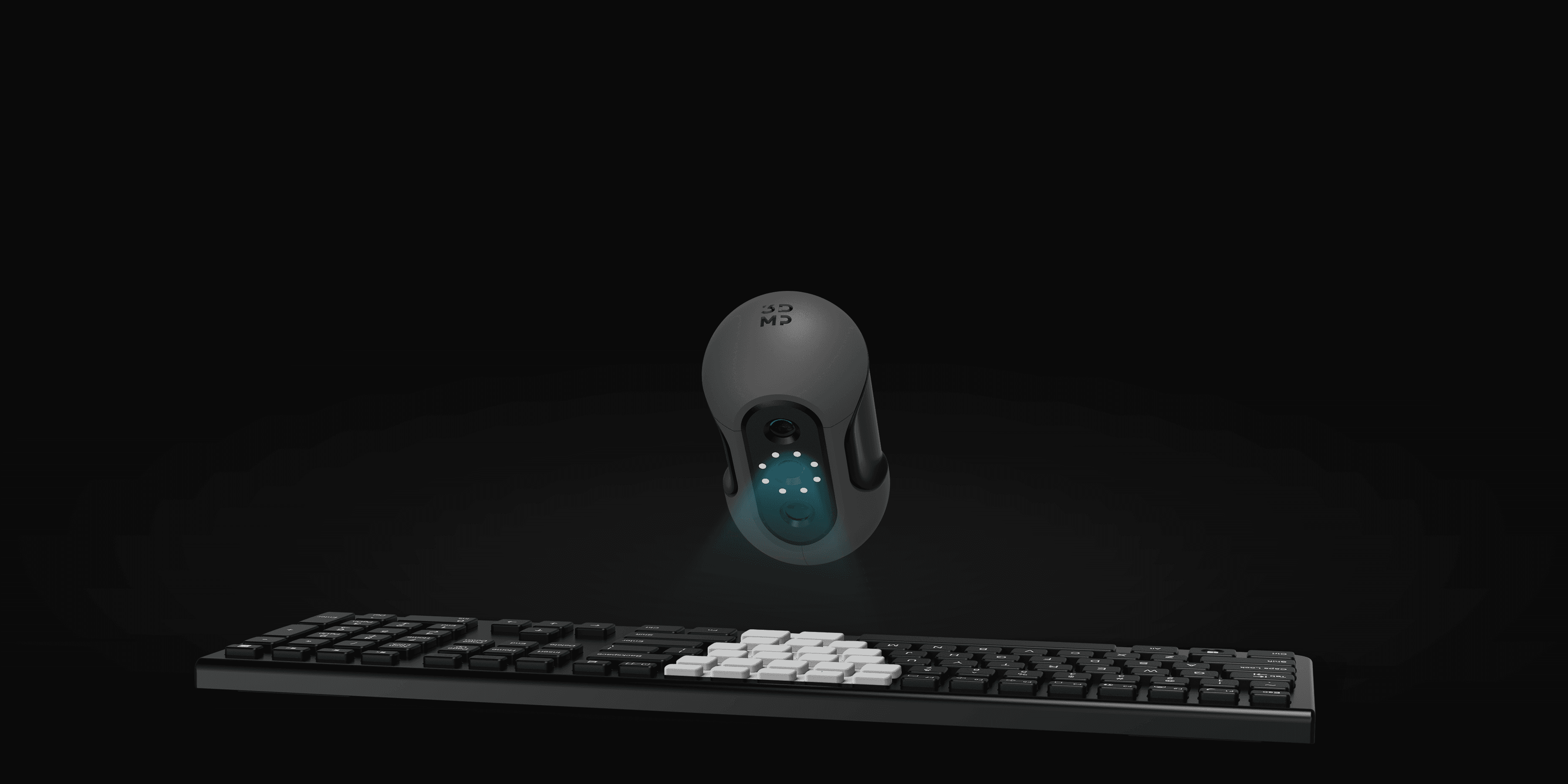

Black objects? No problem

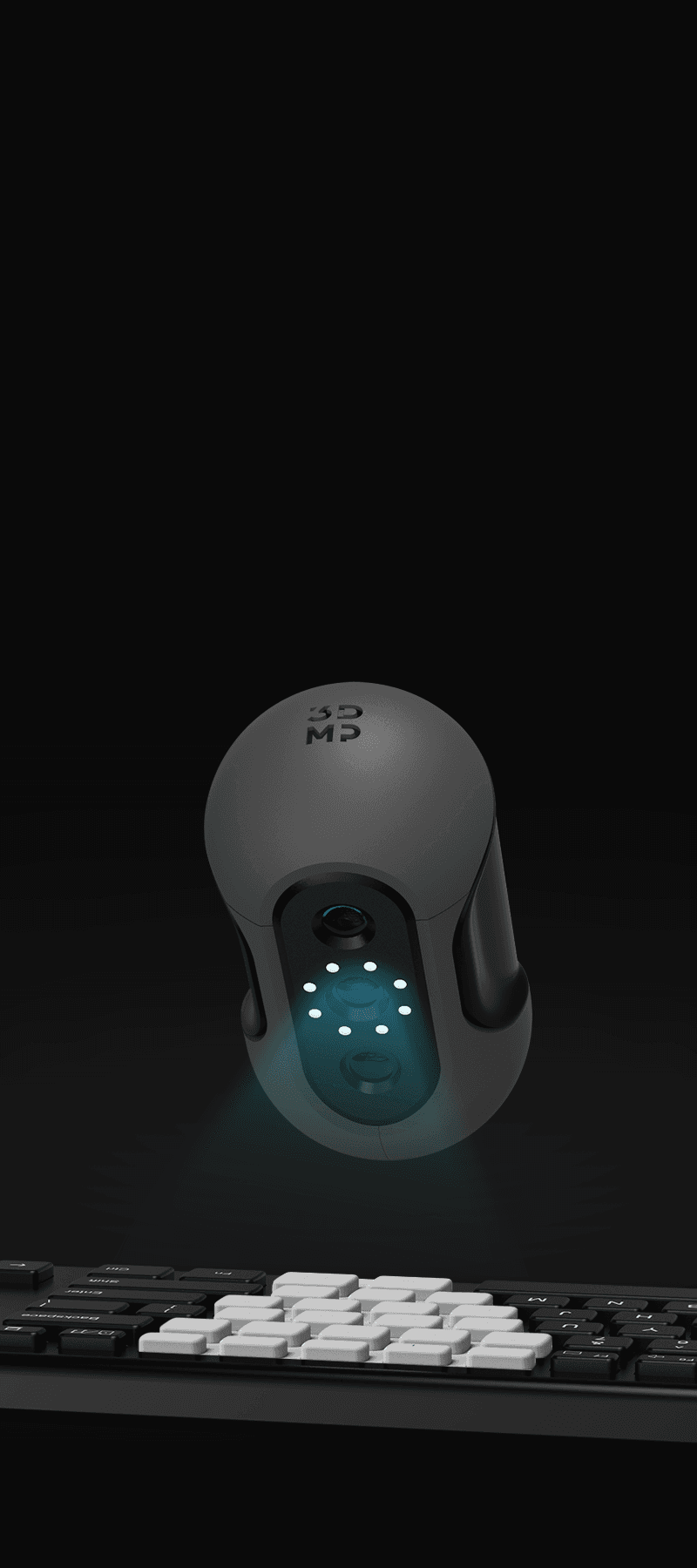

Near Infrared (NIR) has excellent optical compatibility, so even black objects are clearly visible. Mole now includes NIR in its configuration list, enabling it to produce excellent scanning results for objects of different colors.

Black objects? No problem

  • 3d portable scanner

    3d portable scanner

Incredible scan success rate

Optical anti-shake modules and visual tracking algorithms ensure you get a complete and accurate model with every scan.

Visual tracking

Visual tracking

Using visual tracking technology and Prusa's self-developed AI algorithm, Mole enables markerless scanning, saving you significant time.

Visual tracking

  • 3d scanner sale

    3d scanner sale

Optical anti-shake modules

Optical anti-shake modules

Equipped with optical anti-shake modules, Mole ensures smooth and stable scanning, even in handheld mode, with high frame rates and minimal distortion.

Optical anti-shake modules

  • 3d scanner sale

    3d scanner sale

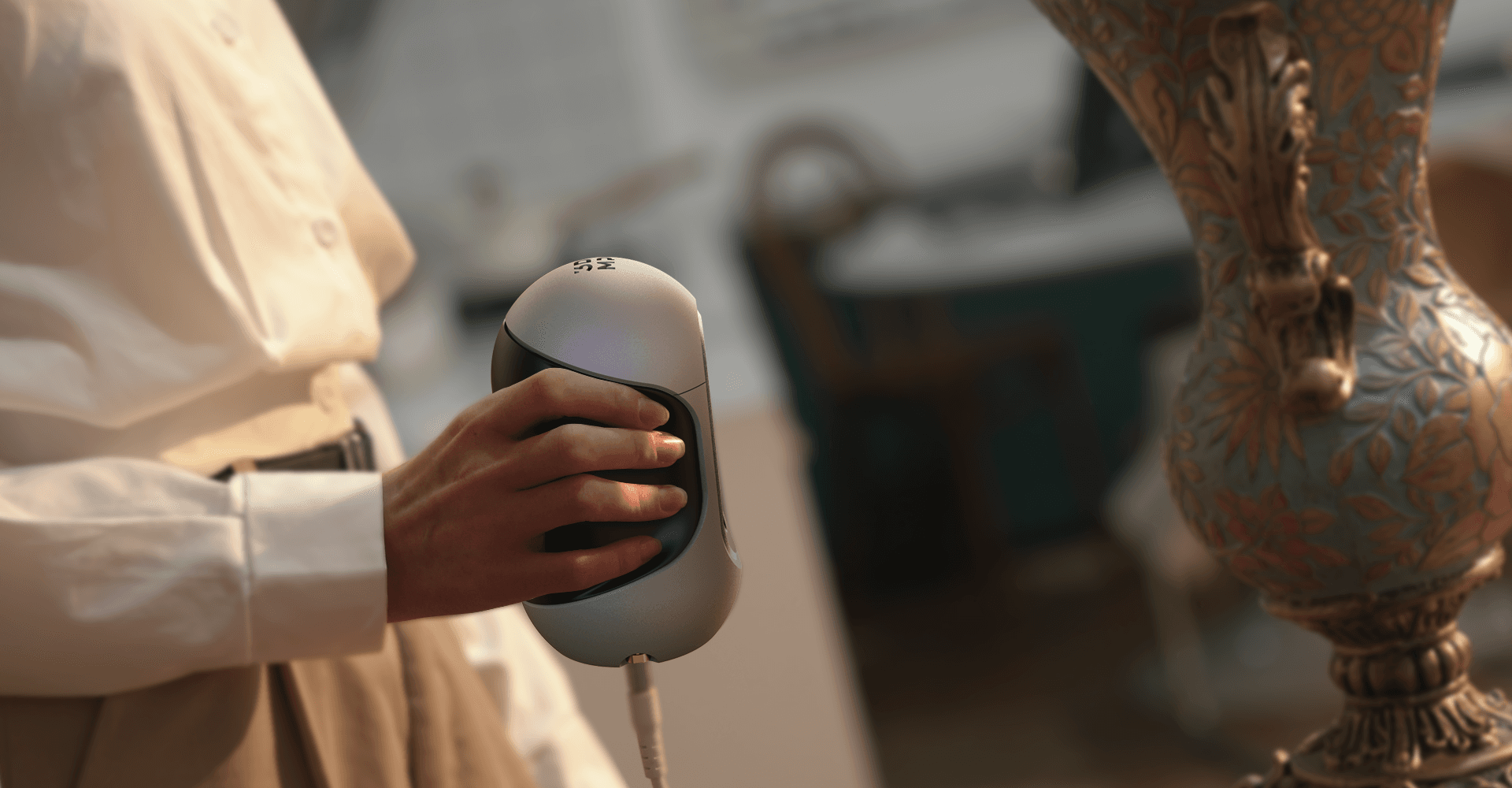

3d scanning

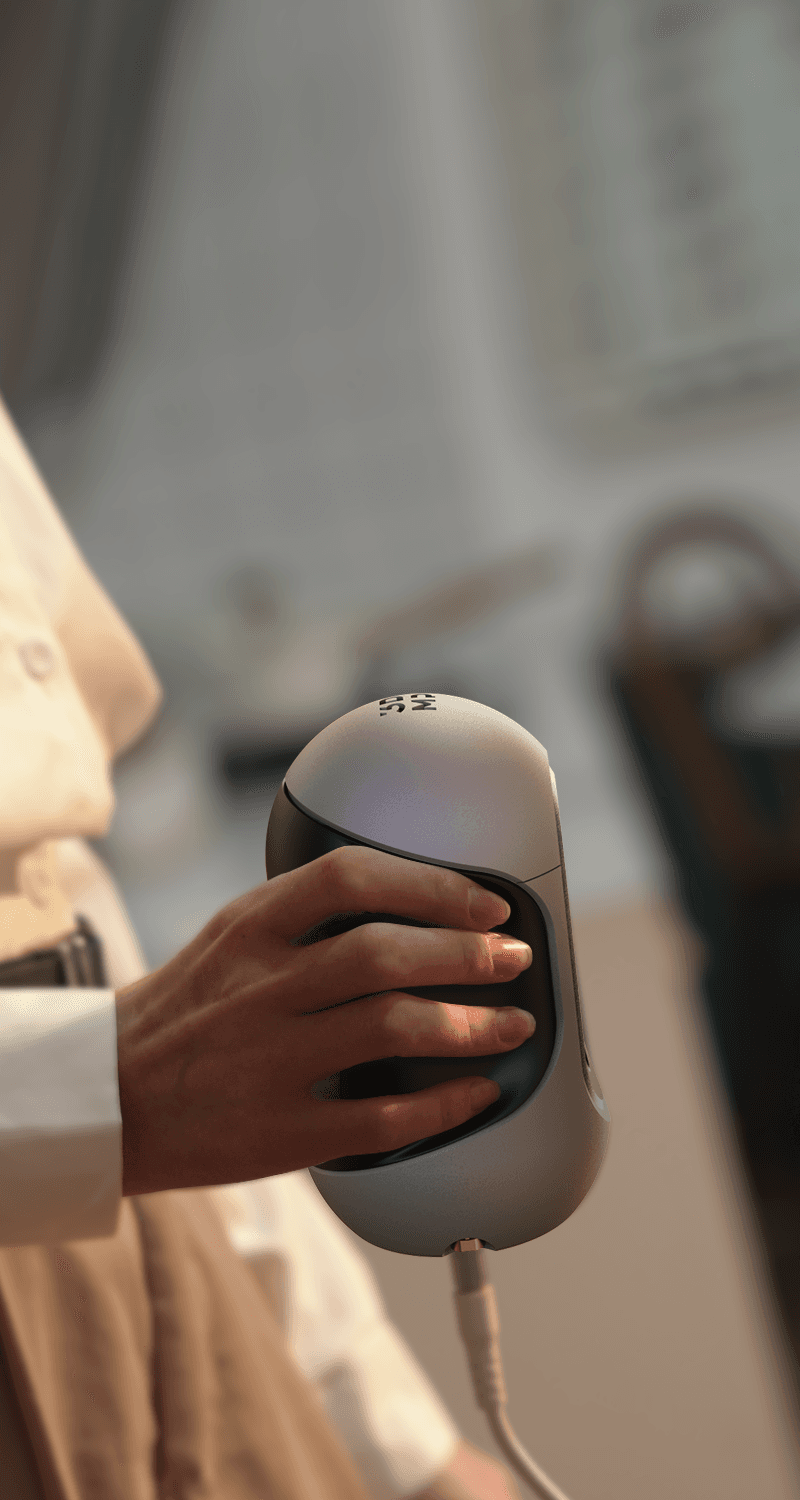

Comfortable to use

Mole's compact and ergonomic design makes scanning effortless, whether in handheld or turntable mode. Its internal cooling fan operates quietly yet significantly reduces the temperature, ensuring that Mole can operate for extended periods of time.

Comfortable to use

  • 3d scanner

    3d scanner

3d portable scanner

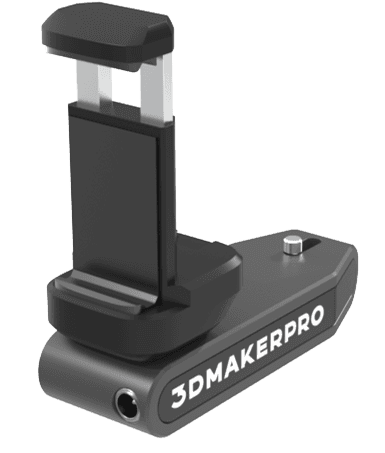

Adding CONNECT transforms MOLE into a portable scanner

Introducing 3DMakerpro Connect, which is designed for portable and stable scanning actions. Enjoy the freedom of scanning with zero limits, wherever and whenever you want. Tips: Connect requires a power bank with a 12V PD 22.5W type C interface.

Powerful graphics chip

3d scanner sale

Powerful graphics chip

The 3DMakerpro Connect image processing chip connects the Mole to your mobile phone, ensuring high-quality scans even when scanning outdoors. Simple and reliable 3DMakerpro Connect quickly connects Mole, tripod, phone, and power supply, ready to go anytime.

3d scanner sale

Mole 3D Scanner

JMStudio supports exporting files in formats like OBJ, PLY, STL, ASC, empowering you to edit, refine, render, or print your scans using your preferred design software.

JM_Studio software 3dmakerpro

Free 3D Scanning Software by 3DMakerpro

From connection and calibration to optimization and export, JMStudio keeps your entire scanning workflow simple and guided. COMPATIBLE SOFTWAREJMStudio - Built for Your Scanner The exclusive 3D scanning software by 3DMakerpro. Real-time capture, one-click optimization, and seamless export to STL, OBJ, PLY & ASC formats. Real-Time Capture One-Click Optimize STL / OBJ / PLY / ASC Export Free with every scanner

Mole 3D Scanner

See how to use Mole in detail >

Tech Specs

Mole 3D Scanner

Mole 3D Scanner

Scan Performance Parameters: Accuracy: 0.05mm Resolution: 0.1mm Frame rate: 10fps Tracking mode: Visual tracking Work distance: 150-400mm Single capture range: 200x100mm Typical object sizes: 15-1500mm Surface Treatment Recommendations: Certain surfaces and materials, such as transparent, reflective, or those hairy area may require a scanning spray for optimal scanning results. Software System Requirements: Output format:OBJ/STL/PLY Compatible system: Windows10/11 64bit, MacOS12/13 Compatible mobile: Android 10.0 or later, iOS 15.0 or later (Extended support) Minimum computer requirements: Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM Recommended computer requirements: Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM Hardware Parameters: Light source: NIR Color texture: Extended support USB interface: USB2.0 Dimensions: 141x80x80mm Weight: 390g

In the box - Standard

  • Mole 3D scanner × 1

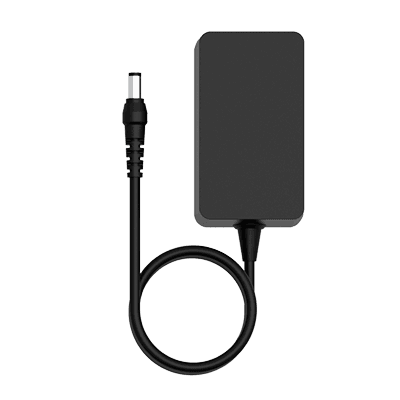

  • Power cord × 1

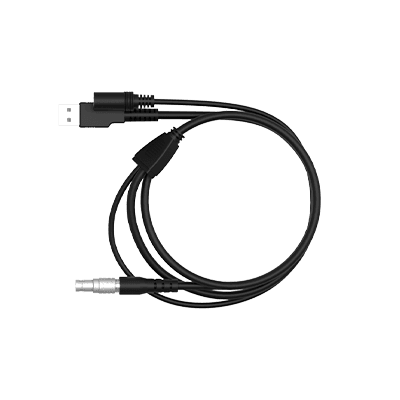

  • Data cable × 1

In the box - Premium

  • Mole 3D scanner × 1

  • Power cord × 1

  • Data cable × 1

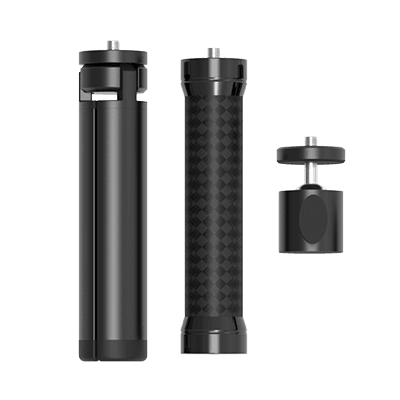

  • Tripod × 1

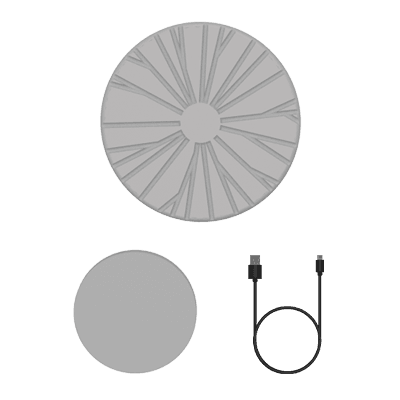

  • Turntable kit × 1

In the box - Luxury

  • Mole 3D scanner × 1

  • Power cord × 1

  • Data cable × 1

  • Tripod × 1

  • Turntable kit × 1

  • Color kit × 1

What's in the Box

  • What's in the Box - 1

  • What's in the Box - 2

  • What's in the Box - 3

  • What's in the Box - 4

  • What's in the Box - 5

Technical specificationsDimensions, materials, compatibility and connectivity.

The details that matter

Technical specifications

Manufacturer figures, with plain-English notes where useful.

21 specifications

Key specifications

Accuracy
0.05 mm
Scan volume (min–max object size)
15–1500 mmSupported object sizes, not the sensor working distance.
Colour / texture capture
Extended support
Scan speed
10 fps
Form factor
Not specified
Warranty
Not specifiedCheck the stated cover and any conditions for your purchase.

Additional specifications

Resolution
0.1mm
Weight
390g
Dimensions
141x80x80mm
Frame rate
10fps
Light source
NIR
Output format
OBJ/STL/PLY
Tracking mode
Visual tracking
Usb interface
USB2.0
Work distance
150-400mm
Compatible mobile
Android 10.0 or later, iOS 15.0 or later (Extended support)
Compatible system
Windows10/11 64bit, MacOS12/13
Single capture range
200x100mm
Typical object sizes
15-1500mm
Minimum computer requirements
Intel Core i5 8th, 16GB RAM, MX250 GPU with 2GB VRAM
Recommended computer requirements
Intel Core i7 8th, 16GB RAM, NVDIA1060 GPU with 4GB VRAM
Frequently asked questionsAnswers to common questions about this product.
Does for the Mole have a size limitation of what it can scan?

Mole can scan objects from 15mm to1500mm, but you can always challenge yourself to scan larger ones when you get a hang of it.

What's the function of color kit? What's included in it?

The color kit is for mapping the realistic colors onto the 3D model.It consists of a white camera controller, a lightbox, and some cables for connection.

What time will you ship the Mole?

MOLE pre-sale orders are estimated to ship within15-30 days after purchase. Prusa is working hard to fulfill all orders as quickly as possible and thank you for your patience and loyalty.

Can Mole scan black objects?

Yes, it can scan black objects, while for some highly-reflective and transparent things, you may need to spray on them.

What kind of power source do I need to operate Mole with the Connect?

The power bank is required to have a minimum power output of 22.5W with a USB C port, and supports PD 12V charging.

What are the system requirements for using Connect (mobile scanning) on Android and iOS?

For Android devices, the mobile application requires Android 10.0 or later. It is recommended to use mobile phones with 8GB of RAM or above, and ensure that there is at least 2GB of available storage space.For iOS devices, the mobile application requires iOS 15.0 or later. It is recommended to use an iPhone 12 or a higher model to download and use this application.
