Toucan 3D Scanner

The details make the difference. Check the fit before you order.

Toucan 3D Scanner1 / 4

Toucan 3D Scanner

1 / 4

£987.24

SKU 3DM-TOUCAN-01

Delivery in 5–7 days.

Make it yours

Choose your options. The price updates as you go.

1

Open comparison

3DMakerpro Toucan: Scan, edit & export on one device. A powerful phase-shifting 3D scanner with 0.03mm accuracy & MEMS optics.

Features & product detailsExplore the design, capabilities and setup information.

A closer look

Toucan 3D Scanner · Fabinity guide to 3DMakerpro features.

Explore product details (13)

Toucan 3D Scanner

Toucan 3D Scanner

One for all, all in one Watch Video X

Introducing 3DMakerpro Toucan

Introducing 3DMakerpro Toucan

From desktop figurines to life-size sculptures, Toucan lets you scan, edit, and fuse complete 3D models - all without a computer. Everything happens inside the device. X

Toucan 3D scanner specs overview: 0.03mm accuracy, 48MP camera, and versatile dual-camera system for small to large objects.

Toucan 3D scanner specs overview: 0.03mm accuracy, 48MP camera, and versatile dual-camera system for small to large objects.

  • Toucan 3D scanner specs overview: 0.03mm accuracy, 48MP camera, and versatile dual-camera system for small to large objects.

    Toucan 3D scanner specs overview: 0.03mm accuracy, 48MP camera, and versatile dual-camera system for small to large objects.

What Toucan Sees

Check out real 3D scans of cars, furniture, and more - proof of Toucan’s accuracy in action.

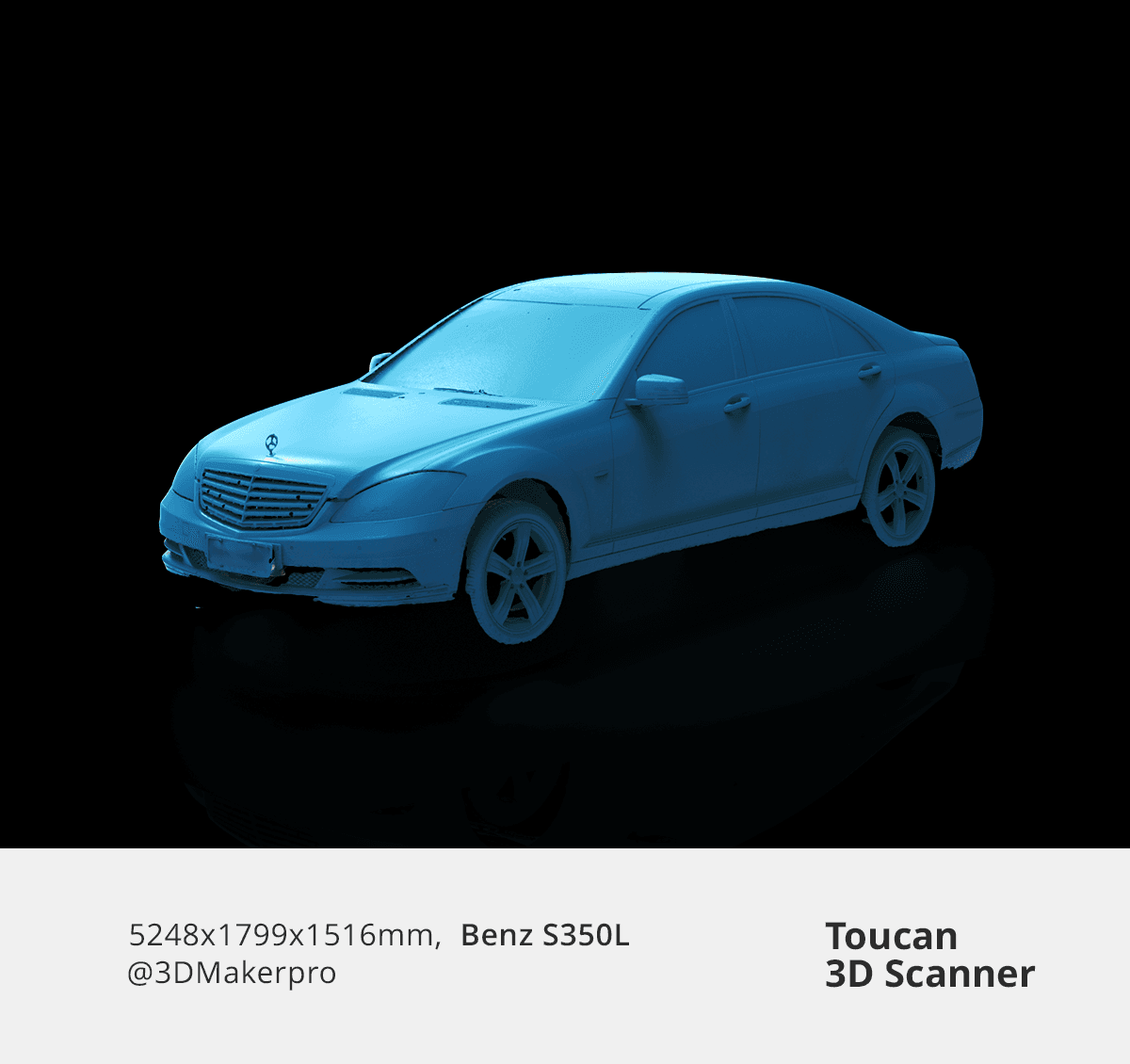

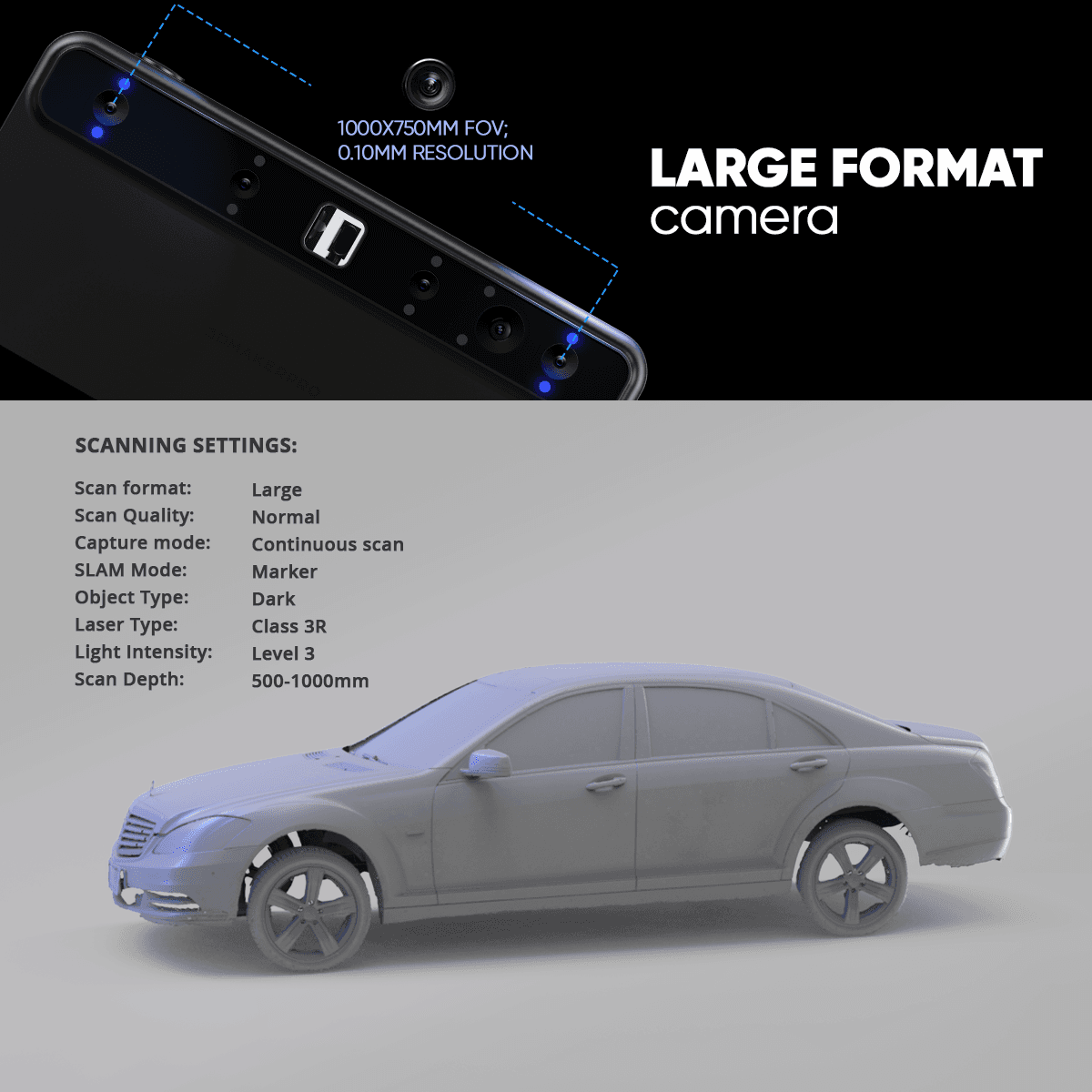

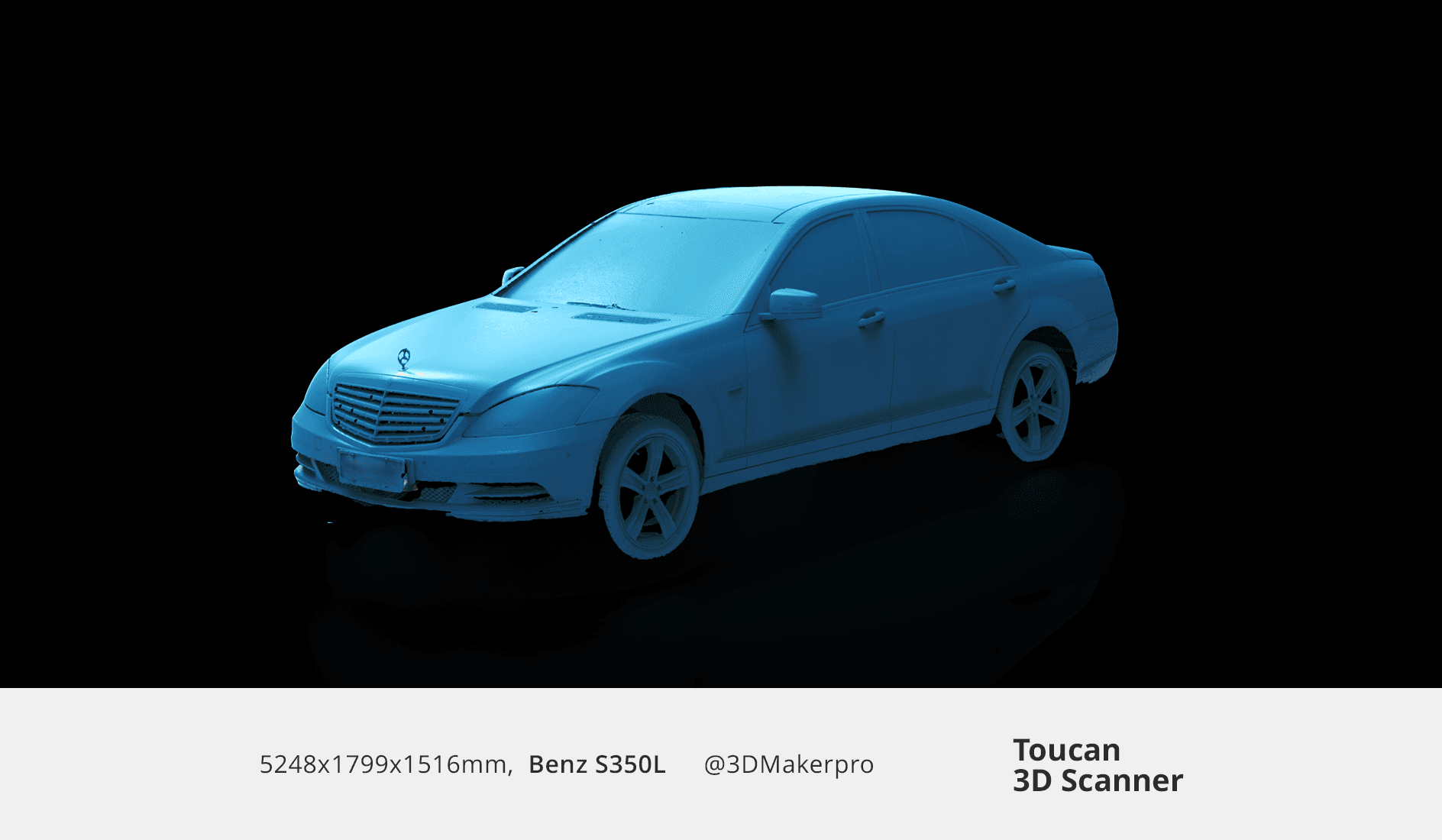

Complete 3D scan of a Benz S350L car model created by Toucan 3D scanner.

Complete 3D scan of a Benz S350L car model created by Toucan 3D scanner.

  • Complete 3D scan of a Benz S350L car model created by Toucan 3D scanner.

    Complete 3D scan of a Benz S350L car model created by Toucan 3D scanner.

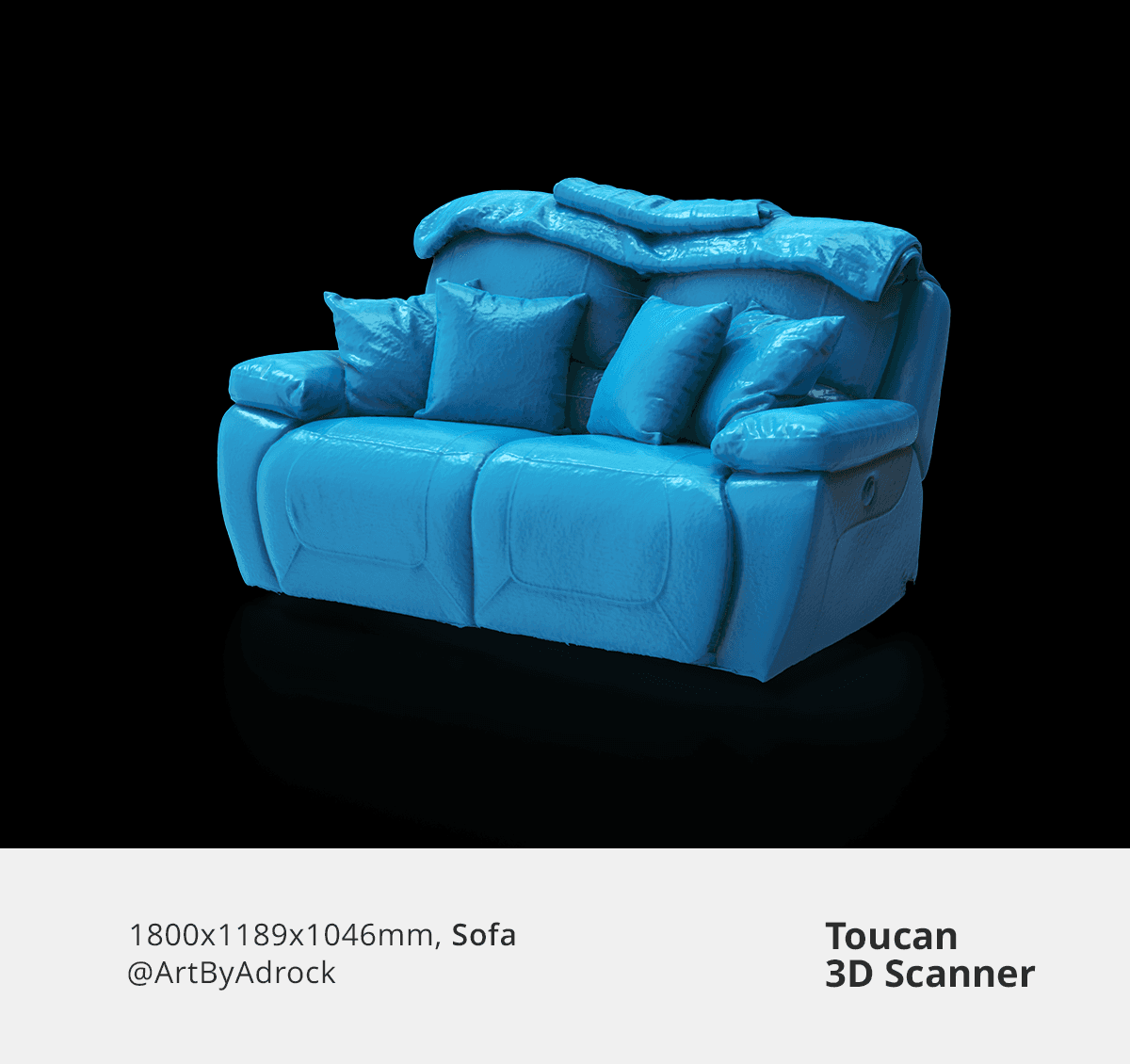

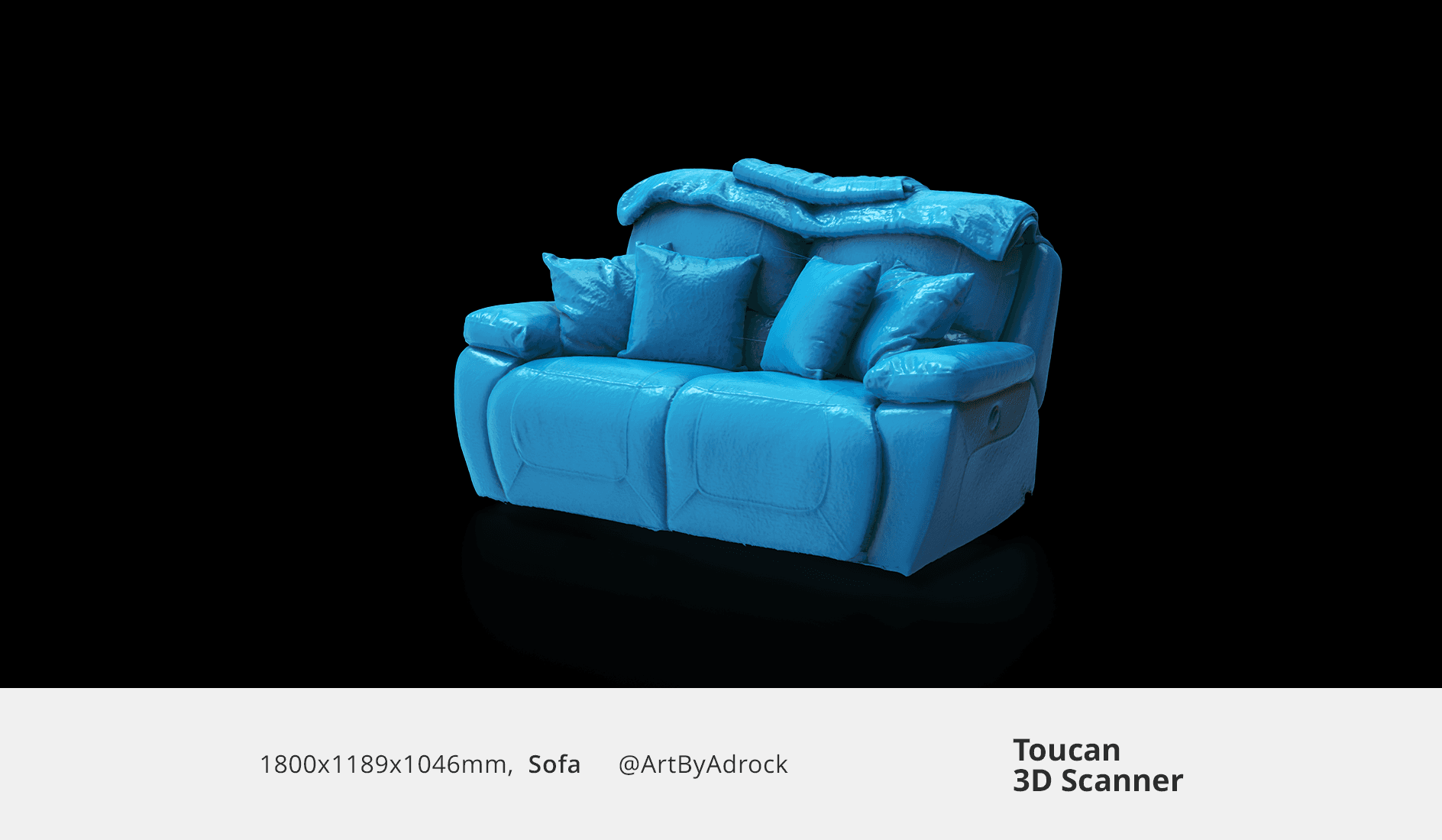

  • High-fidelity 3D scan of a sofa model produced with Toucan 3D scanner.

    High-fidelity 3D scan of a sofa model produced with Toucan 3D scanner.

  • High-fidelity 3D scan of a sofa model produced with Toucan 3D scanner.

    High-fidelity 3D scan of a sofa model produced with Toucan 3D scanner.

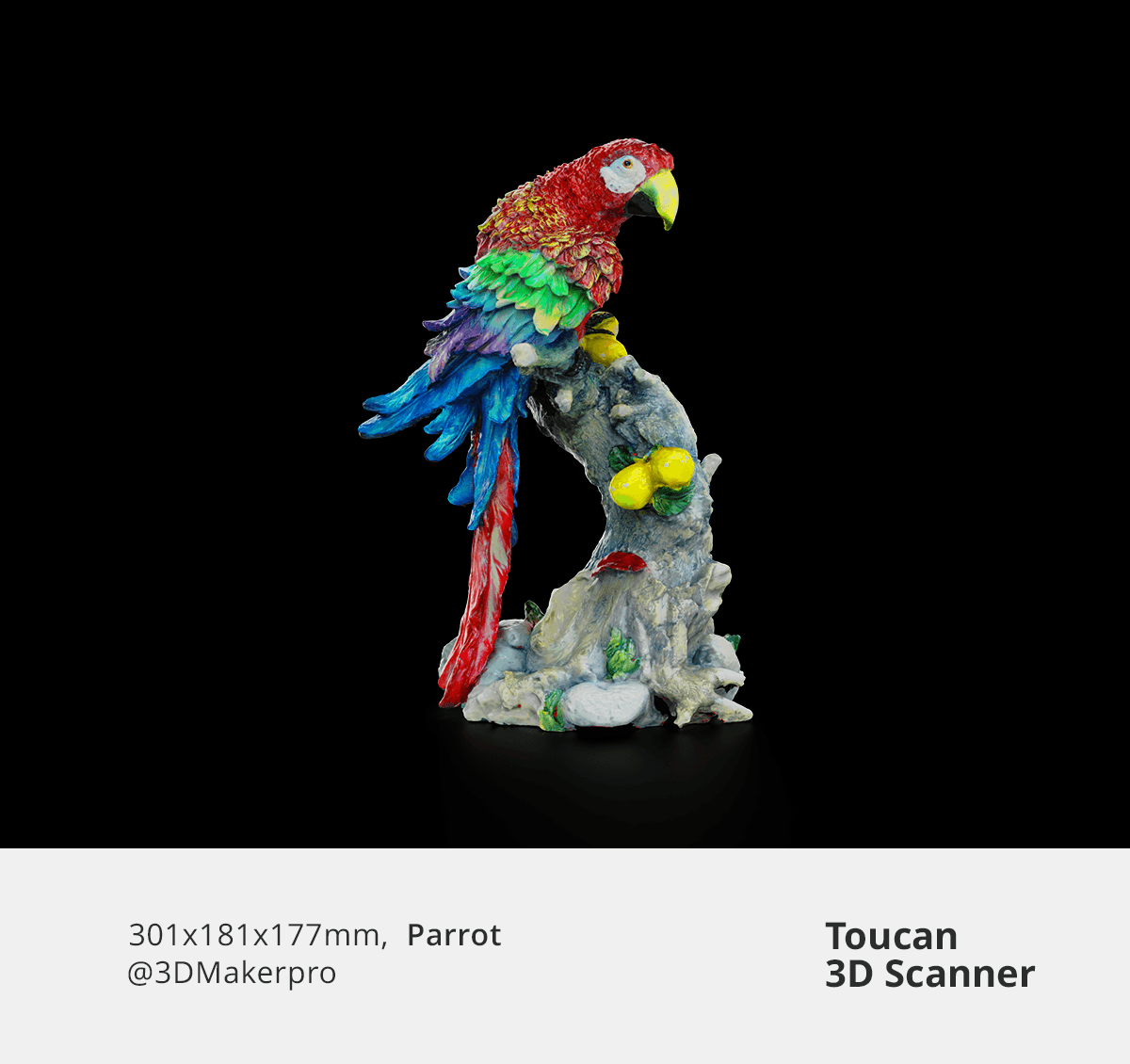

  • Detailed color 3D scan of a parrot model captured by Toucan 3D scanner.

    Detailed color 3D scan of a parrot model captured by Toucan 3D scanner.

  • Detailed color 3D scan of a parrot model captured by Toucan 3D scanner.

    Detailed color 3D scan of a parrot model captured by Toucan 3D scanner.

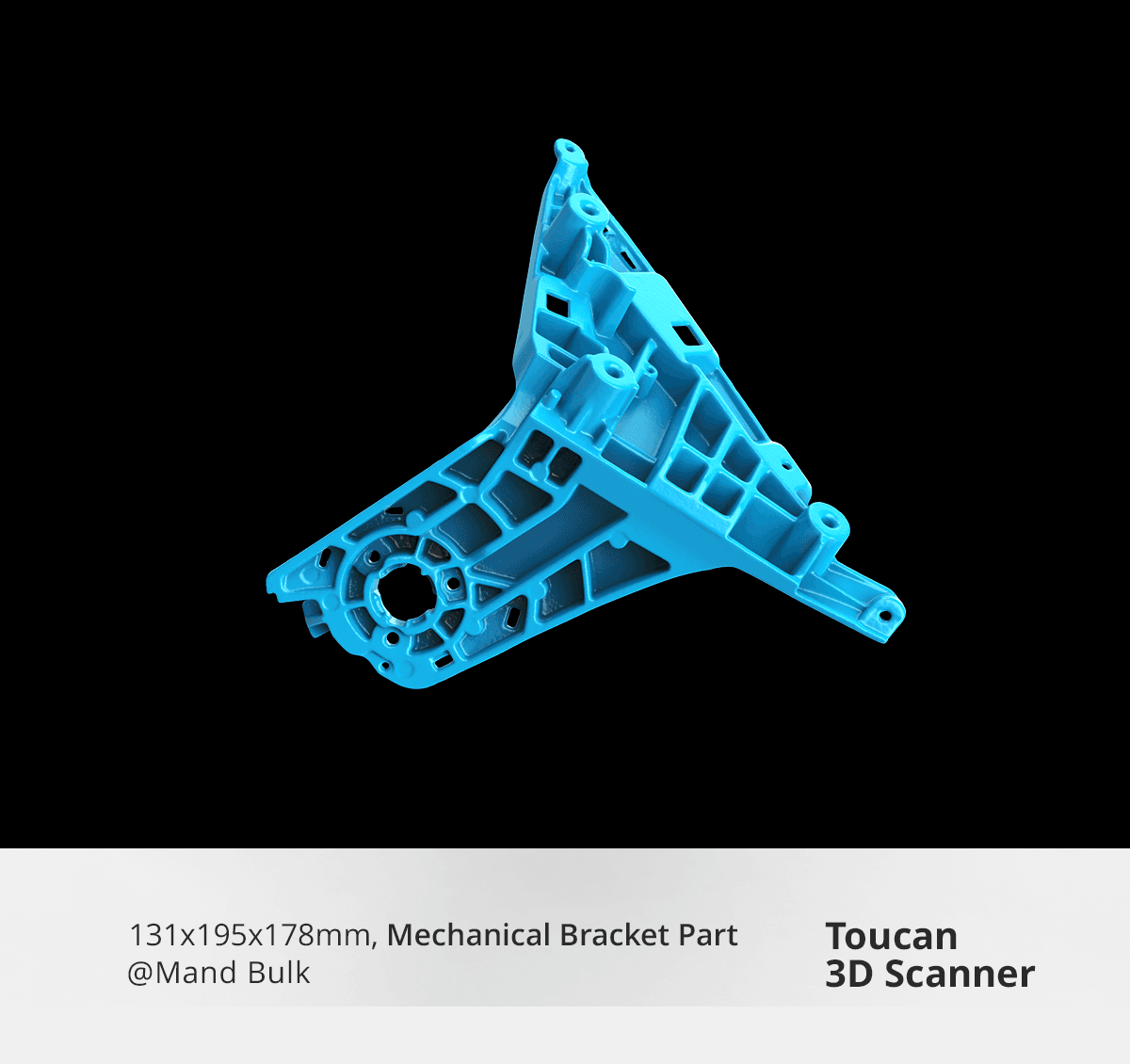

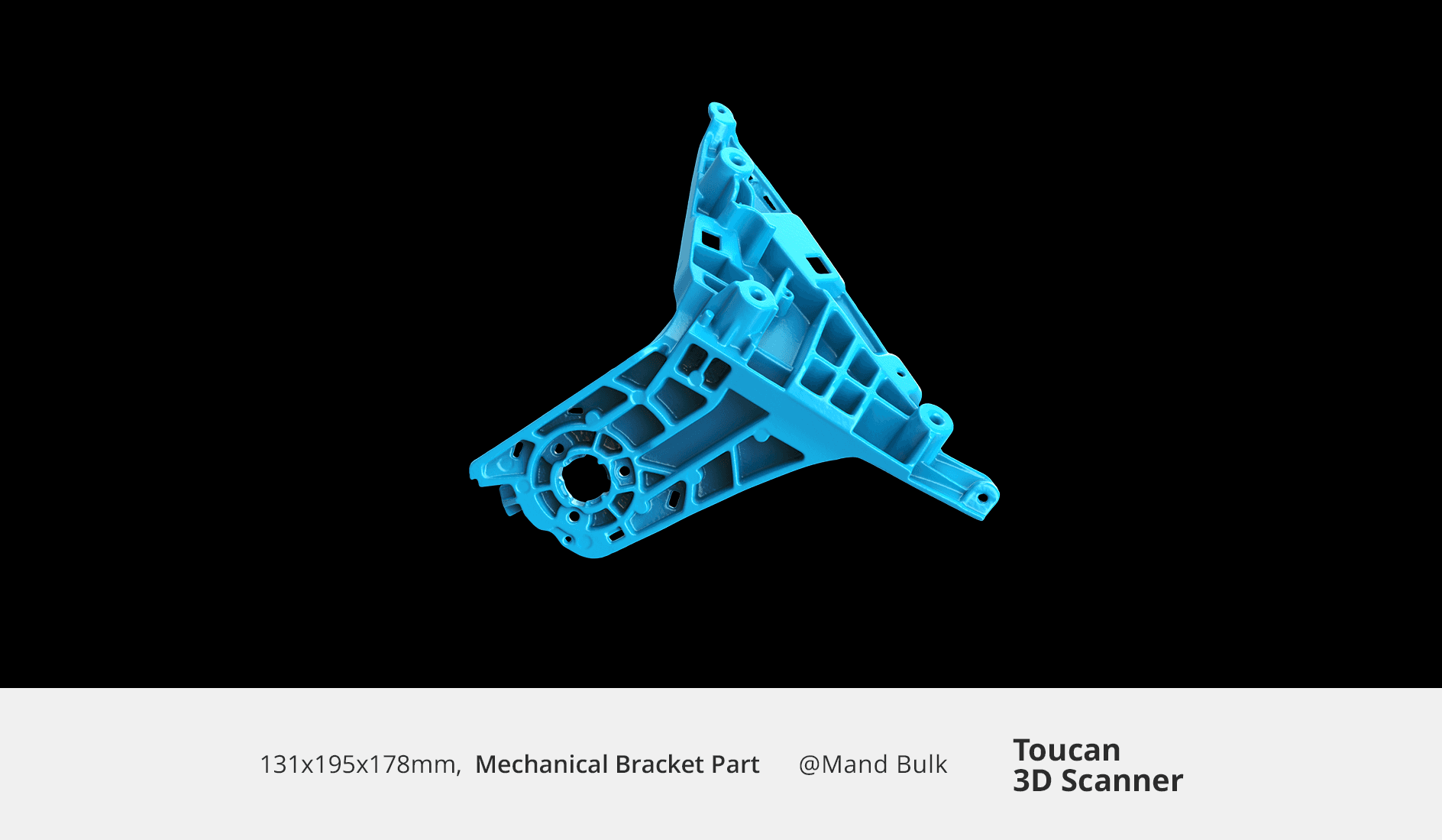

  • 3D scanned model of a mechanical bracket part showcasing Toucan's precision.

    3D scanned model of a mechanical bracket part showcasing Toucan's precision.

  • 3D scanned model of a mechanical bracket part showcasing Toucan's precision.

    3D scanned model of a mechanical bracket part showcasing Toucan's precision.

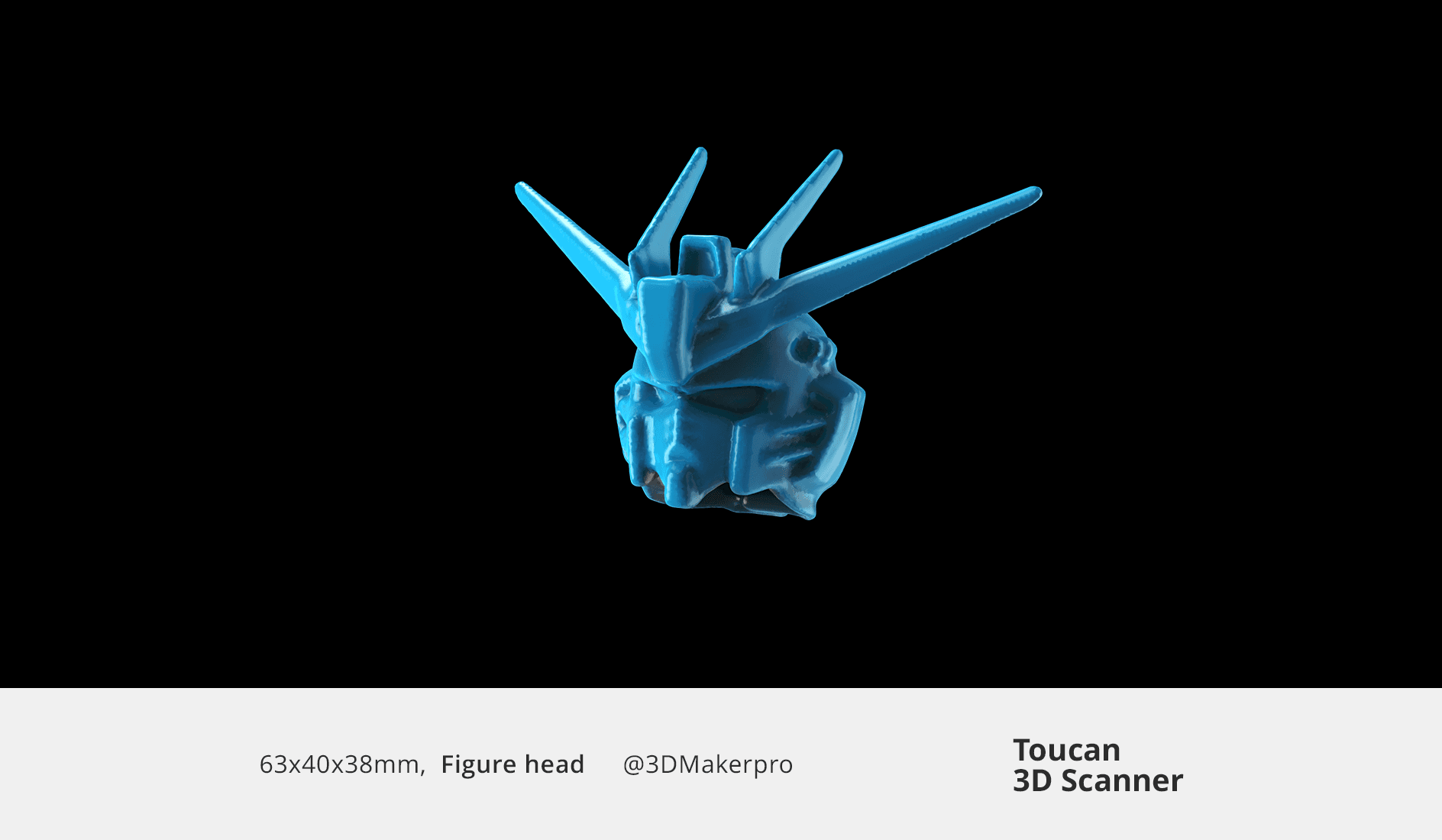

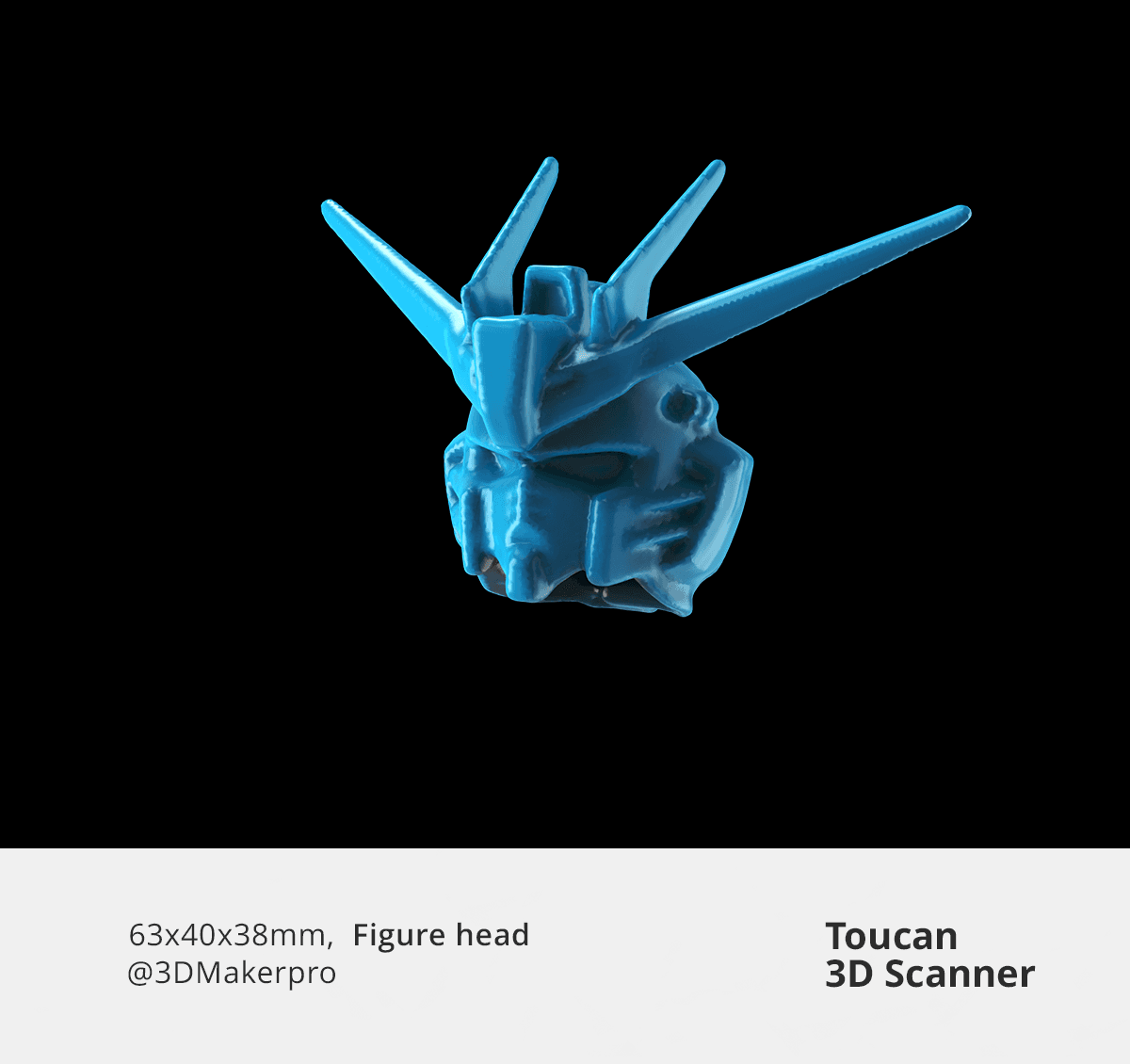

  • High-detail 3D scan of a figure head model produced by Toucan 3D scanner.

    High-detail 3D scan of a figure head model produced by Toucan 3D scanner.

  • High-detail 3D scan of a figure head model produced by Toucan 3D scanner.

    High-detail 3D scan of a figure head model produced by Toucan 3D scanner.

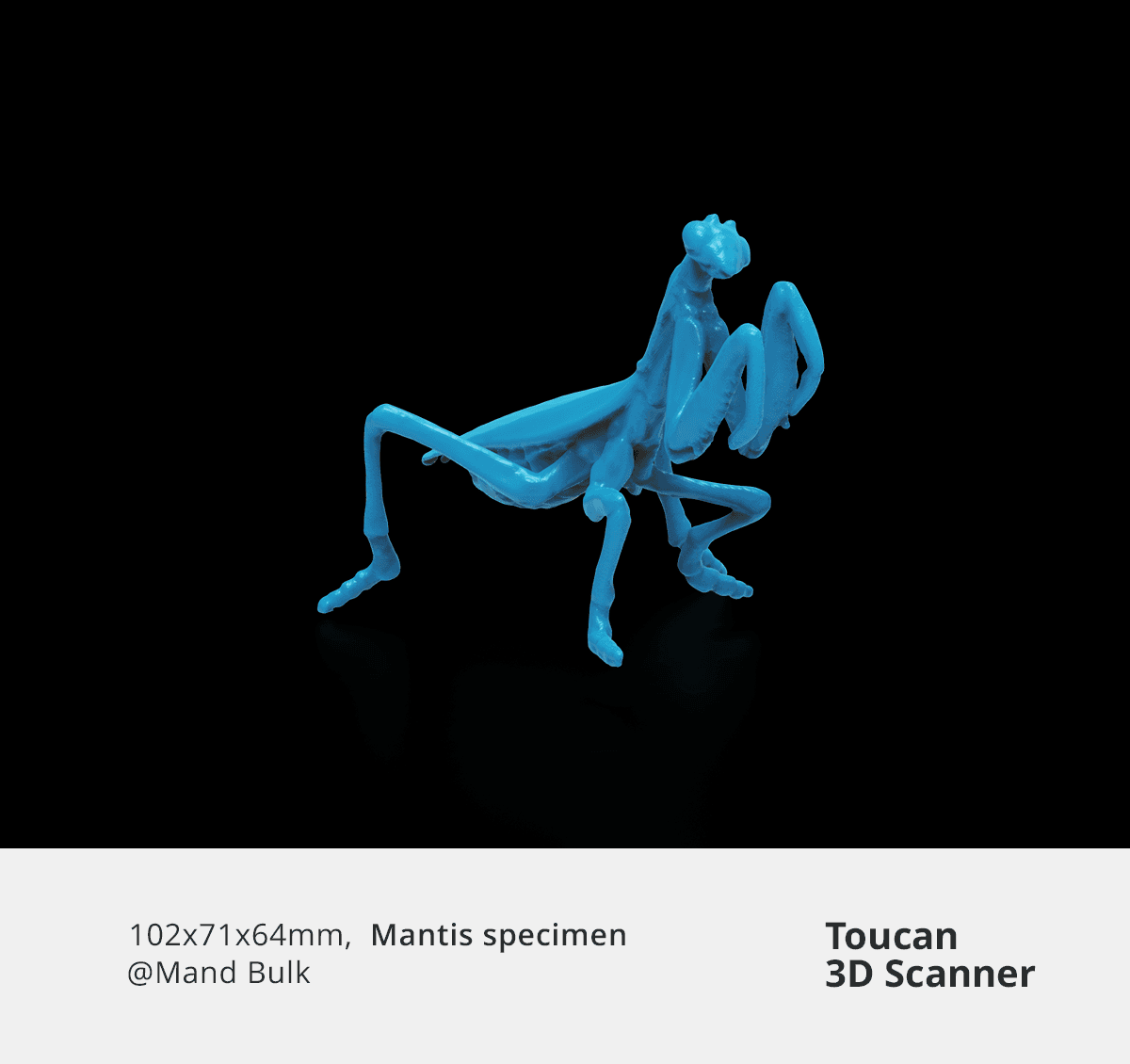

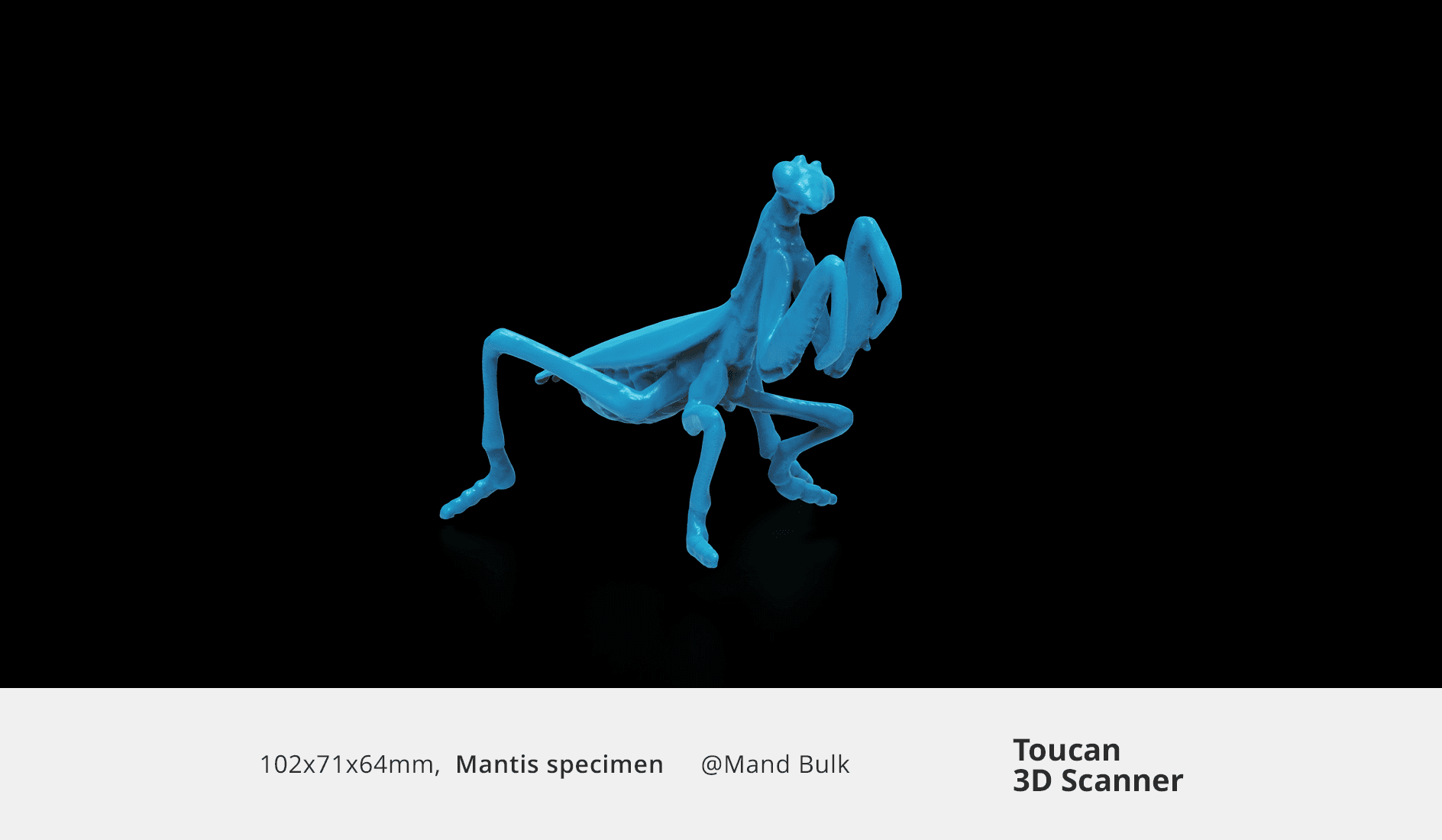

  • Intricate 3D scan of a mantis specimen model captured with Toucan 3D scanner.

    Intricate 3D scan of a mantis specimen model captured with Toucan 3D scanner.

  • Intricate 3D scan of a mantis specimen model captured with Toucan 3D scanner.

    Intricate 3D scan of a mantis specimen model captured with Toucan 3D scanner.

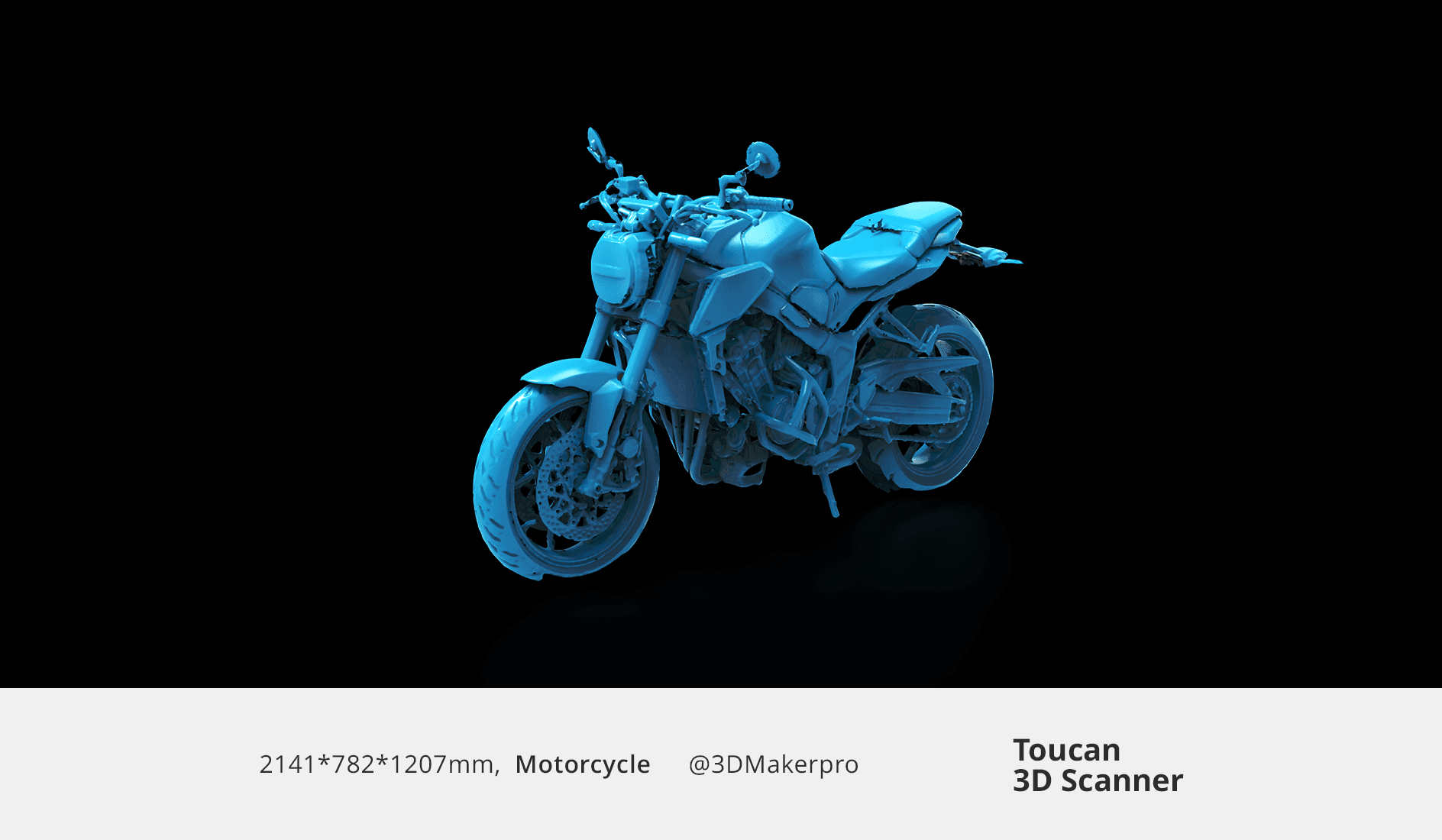

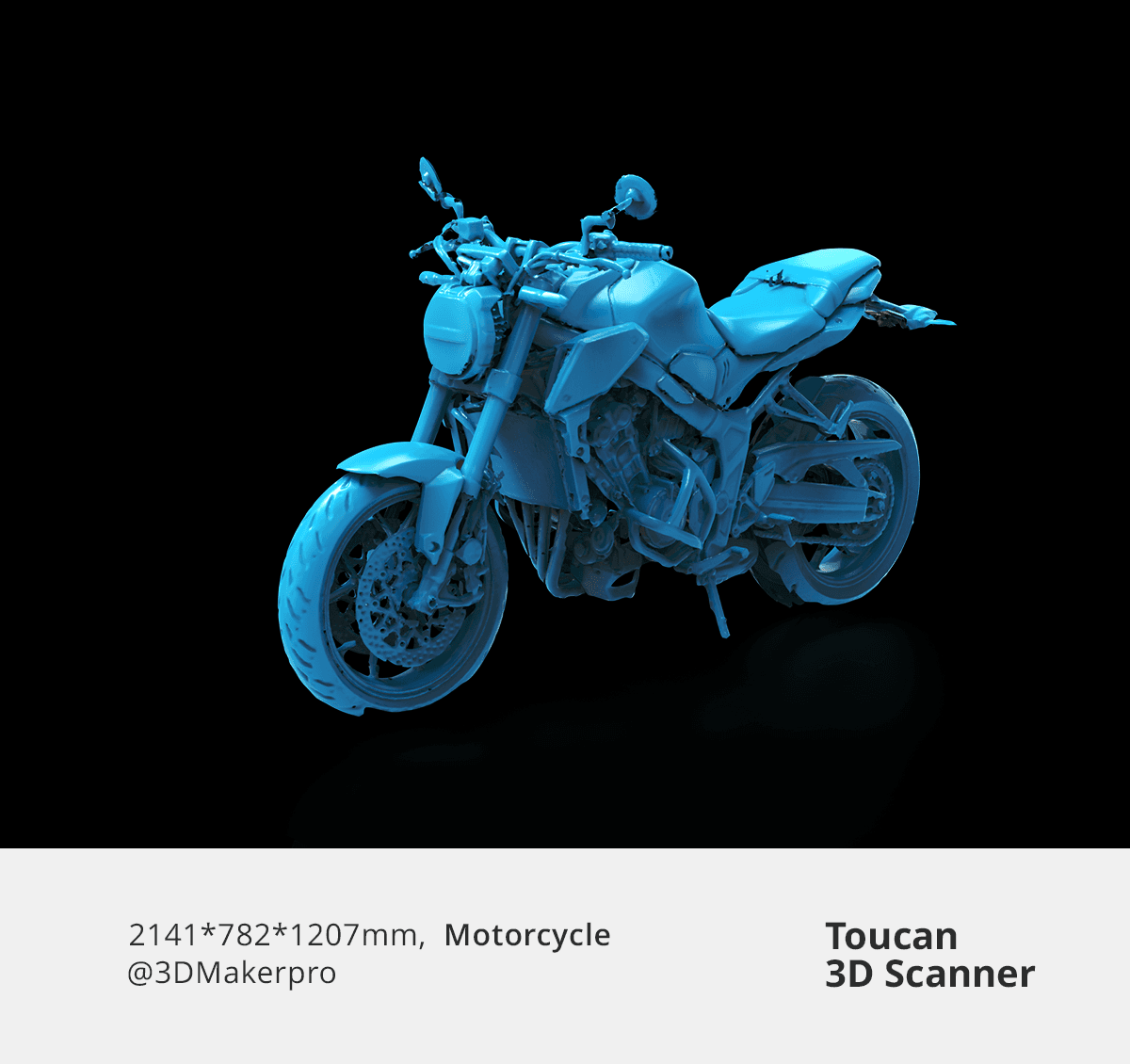

  • Large-scale 3D scan of a motorcycle model demonstrating Toucan's versatility.

    Large-scale 3D scan of a motorcycle model demonstrating Toucan's versatility.

  • Large-scale 3D scan of a motorcycle model demonstrating Toucan's versatility.

    Large-scale 3D scan of a motorcycle model demonstrating Toucan's versatility.

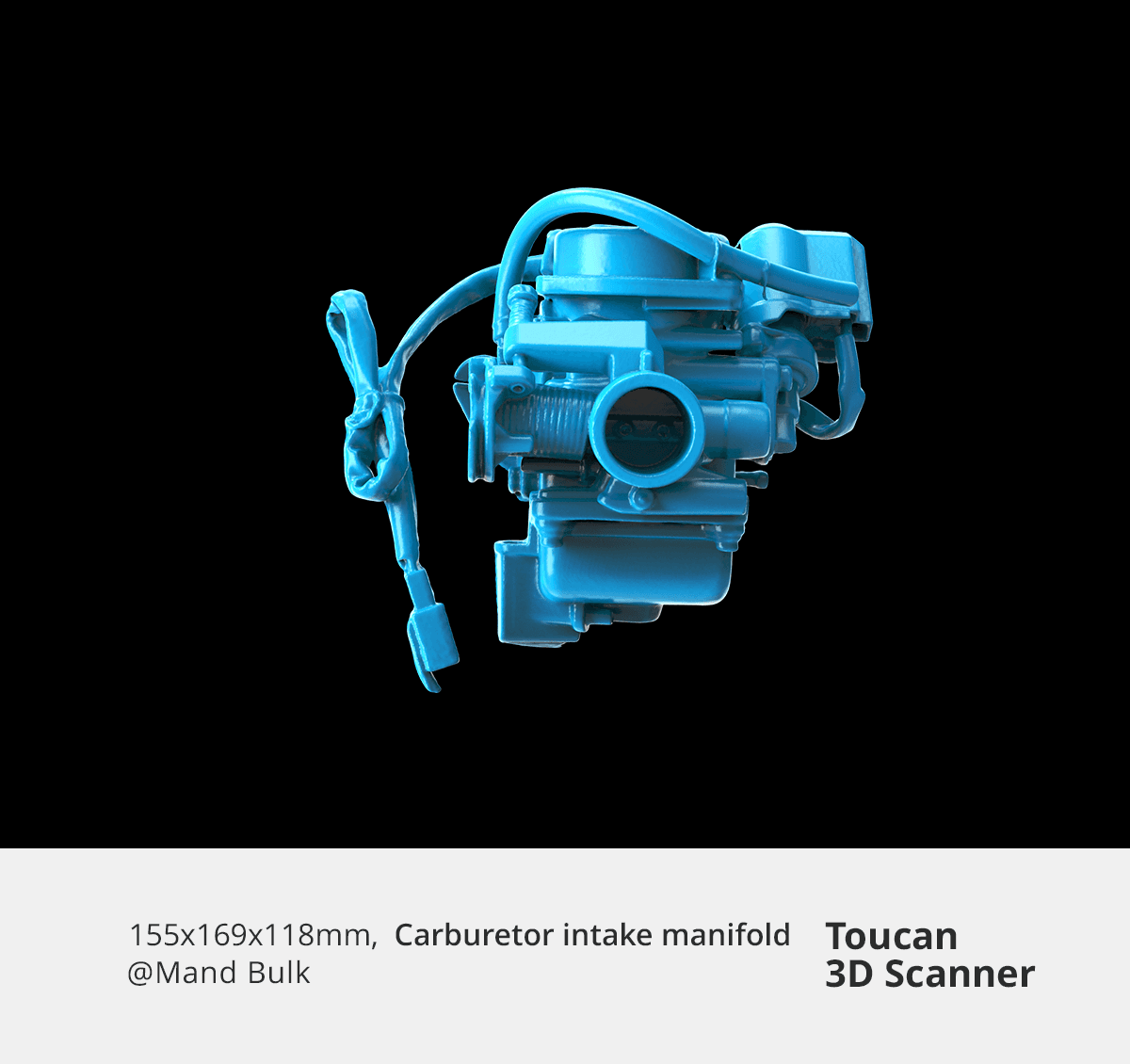

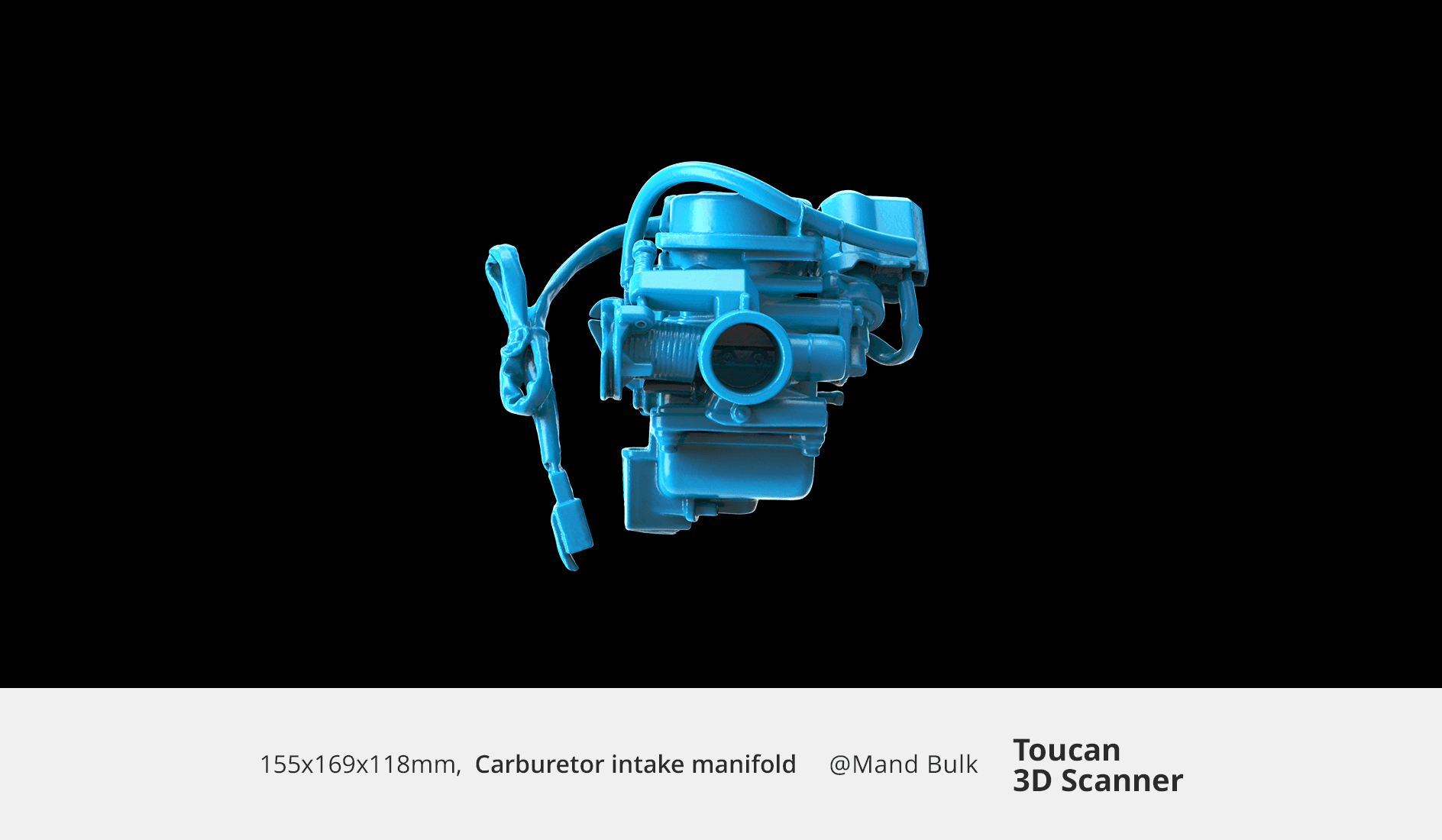

  • 3D scanned model of a carburetor intake manifold showing intricate internal details.

    3D scanned model of a carburetor intake manifold showing intricate internal details.

  • 3D scanned model of a carburetor intake manifold showing intricate internal details.

    3D scanned model of a carburetor intake manifold showing intricate internal details.

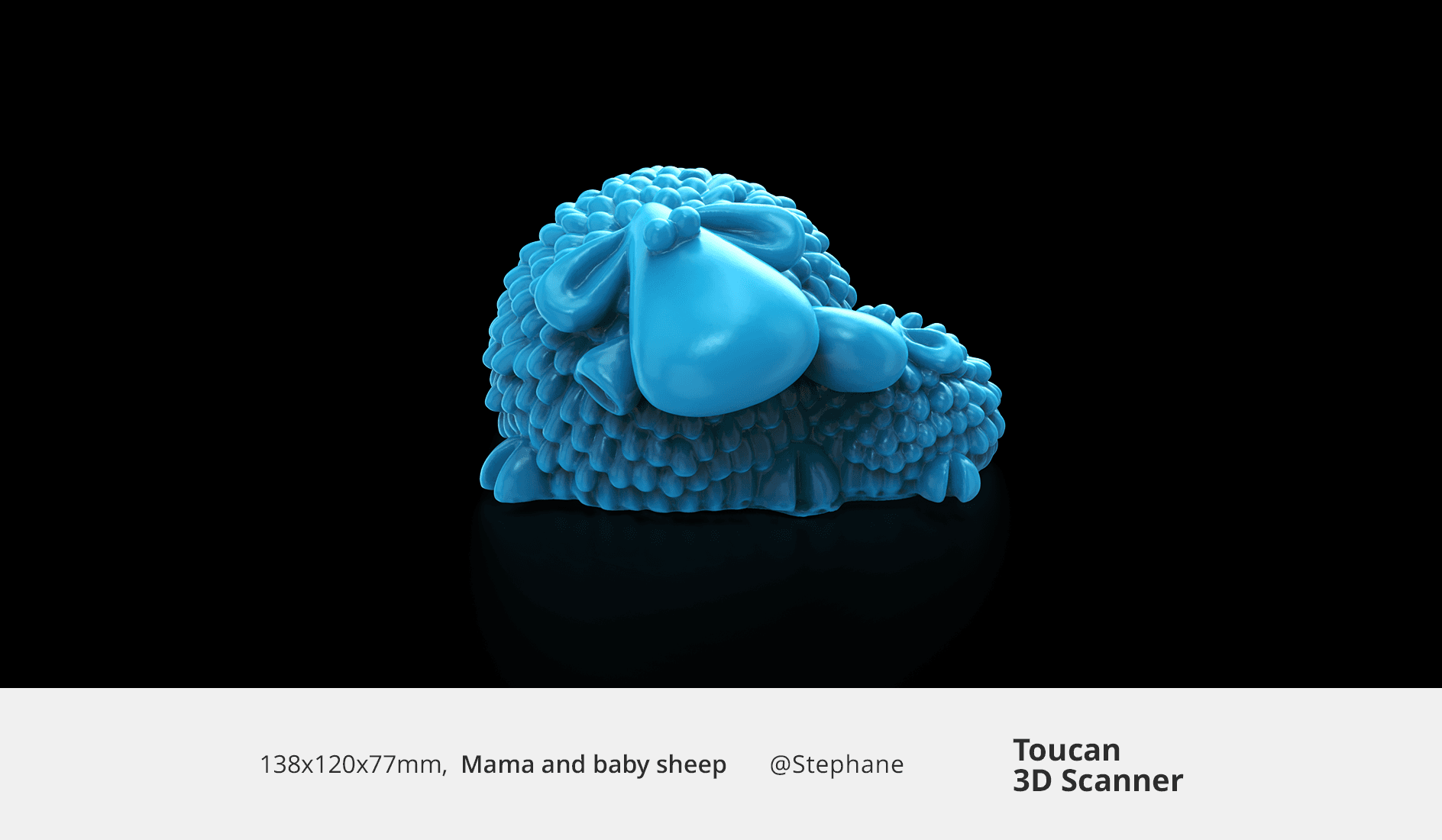

  • 3D scanned model of mama and baby sheep figurines by Toucan 3D scanner.

    3D scanned model of mama and baby sheep figurines by Toucan 3D scanner.

  • 3D scanned model of mama and baby sheep figurines by Toucan 3D scanner.

    3D scanned model of mama and baby sheep figurines by Toucan 3D scanner.

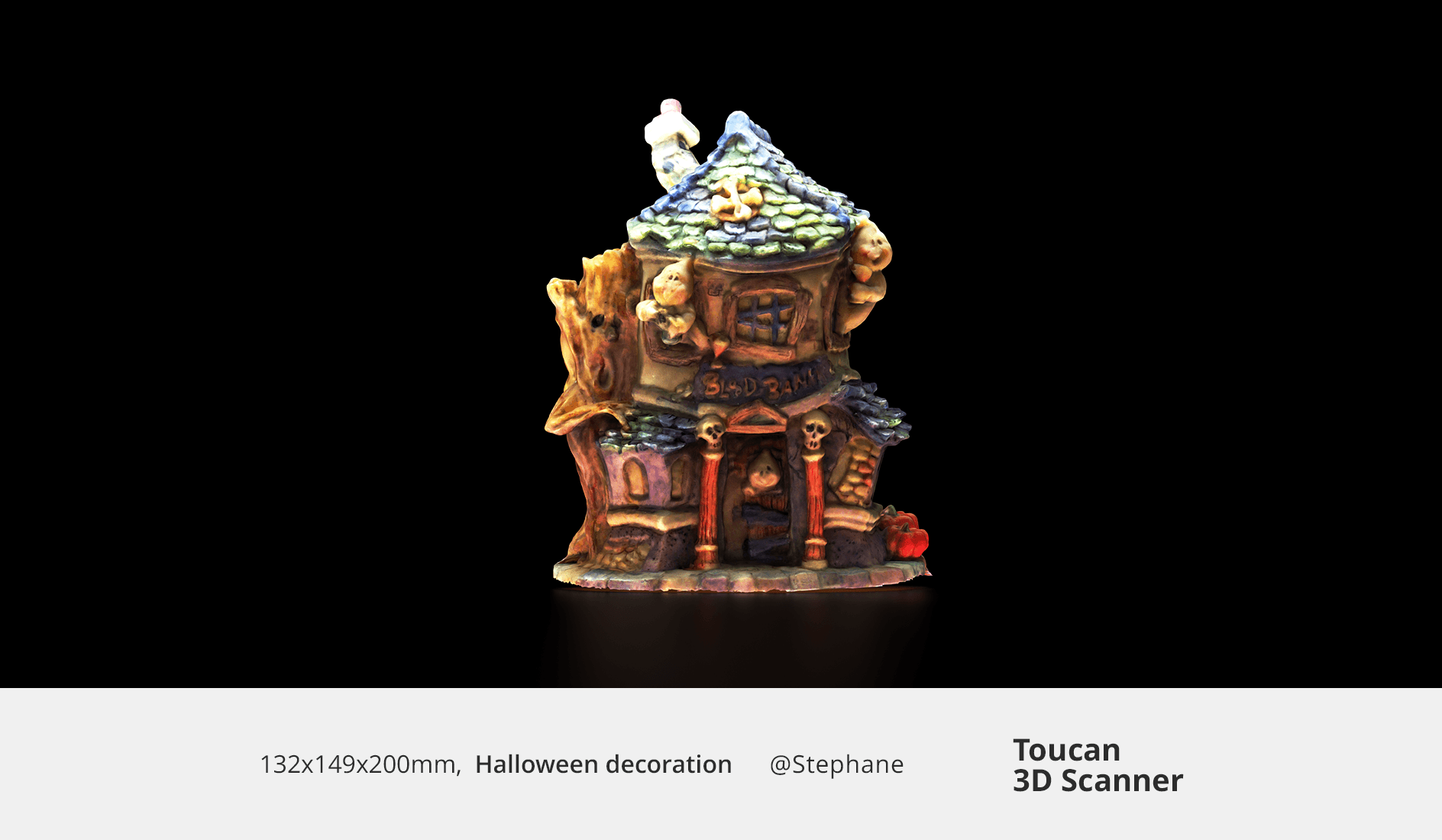

  • Full-color 3D scan of a Halloween decoration showing Toucan's color restoration.

    Full-color 3D scan of a Halloween decoration showing Toucan's color restoration.

  • Full-color 3D scan of a Halloween decoration showing Toucan's color restoration.

    Full-color 3D scan of a Halloween decoration showing Toucan's color restoration.

Finer, Larger, Brighter

  • A man scans a black motorcycle with the Toucan 3D scanner's powerful MEMS projector in a dark workshop.

A man scans a black motorcycle with the Toucan 3D scanner's powerful MEMS projector in a dark workshop.

Finer, Larger, Brighter

Toucan’s upgraded hardware boasts a powerful MEMS projector with better accuracy and adaptability. Near/far scan modes target objects of all sizes.

0.03 mm

Accuracy 0.05 mm Resolution 1,000 mm Working Distance

  • Toucan 3D Scanner

  • Toucan 3D Scanner

  • Toucan 3D Scanner

  • Toucan 3D Scanner

  • Toucan 3D Scanner

  • Toucan 3D Scanner

Toucan 3D Scanner

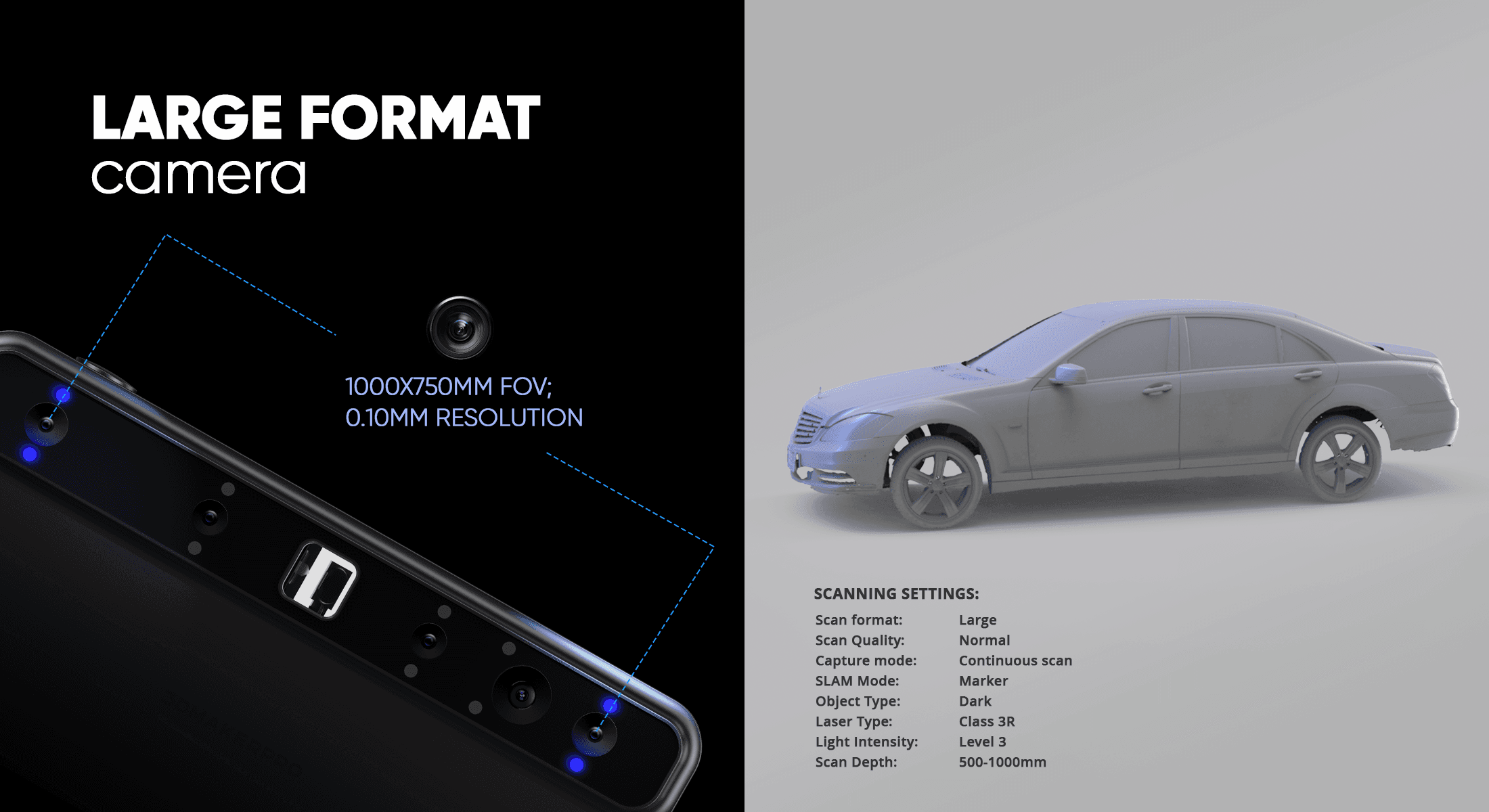

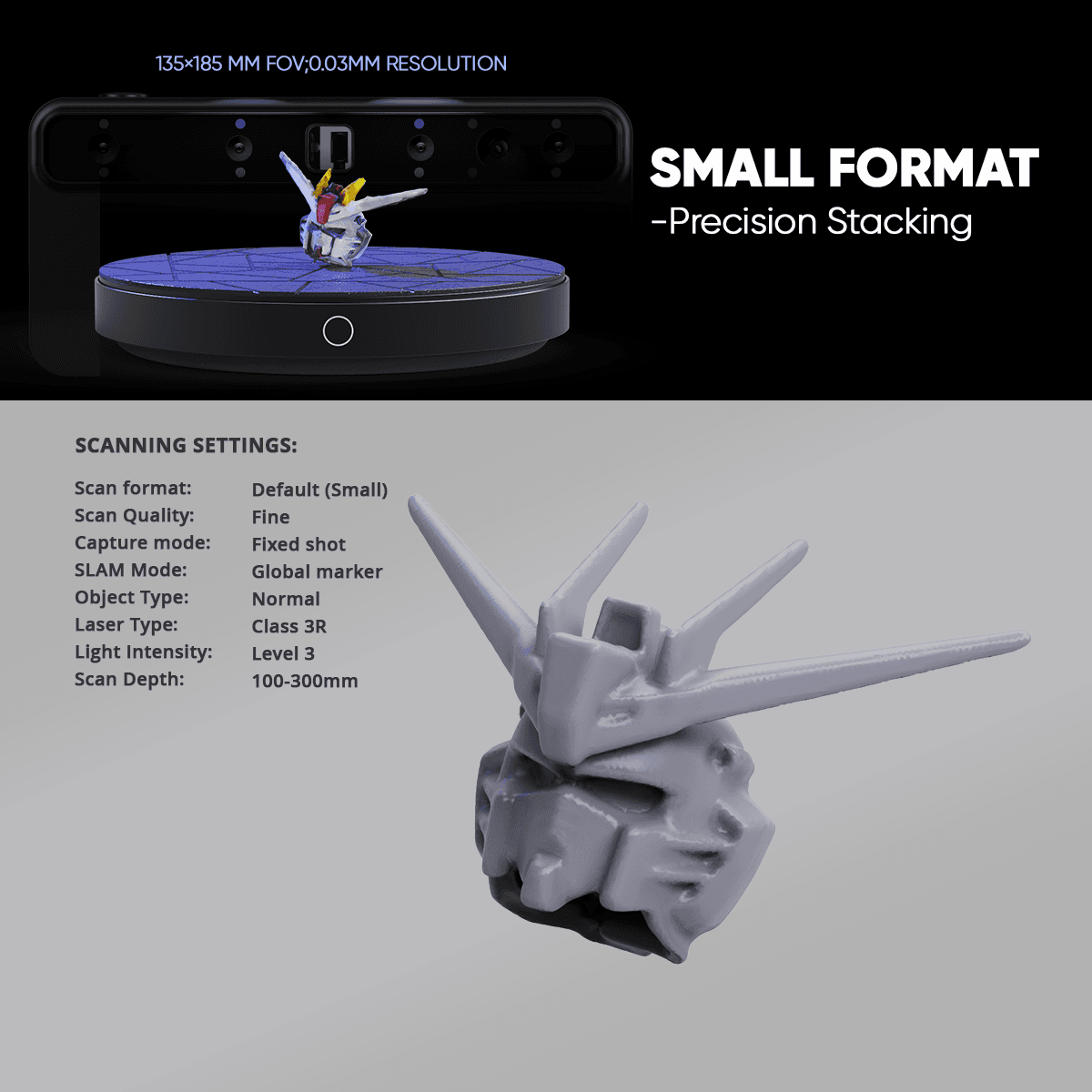

Ultra-Large Range Fine Scan Professional Precision Effortlessly scan cars, bodies, and furniture with expansive coverage. Achieve full, detailed models in seconds, ideal for large-scale objects. Capture portraits, figurines, electronics, and car parts with sharp accuracy. Deliver intricate, high-quality scans for small to medium items, even on the go. Scan specimens, jewelry, and dental molds with exceptional clarity using Phase-Shifting Structured Light, excelling with fine, thin targets. Create flawless, detailed models (paired with electric turntable, sold separately).

  • Toucan 3D Scanner - 1

  • Toucan 3D Scanner - 2

  • Toucan 3D Scanner - 3

  • Toucan 3D Scanner - 4

  • Toucan 3D Scanner - 5

Super Scan Depth

  • Toucan scans deep 33cm vase interiors and cavities with its powerful 200-1000mm super scan depth.

Toucan scans deep 33cm vase interiors and cavities with its powerful 200-1000mm super scan depth.

Super Scan Depth

Deep Detection, Fearless of Cavities Scans 200-1000mm, probing deep cavities like a 33cm vase interior.

Smart Resume Scan Mode

  • Toucan’s Smart Resume Mode automatically fills blanks and gaps to capture full internal structures in one go.

Toucan’s Smart Resume Mode automatically fills blanks and gaps to capture full internal structures in one go.

Smart Resume Scan Mode

Complete in One Go, No Blanks Left Toucan recognizes different object orientations, filling in gaps during the scanning process to effortlessly capture the underside and internal structures.

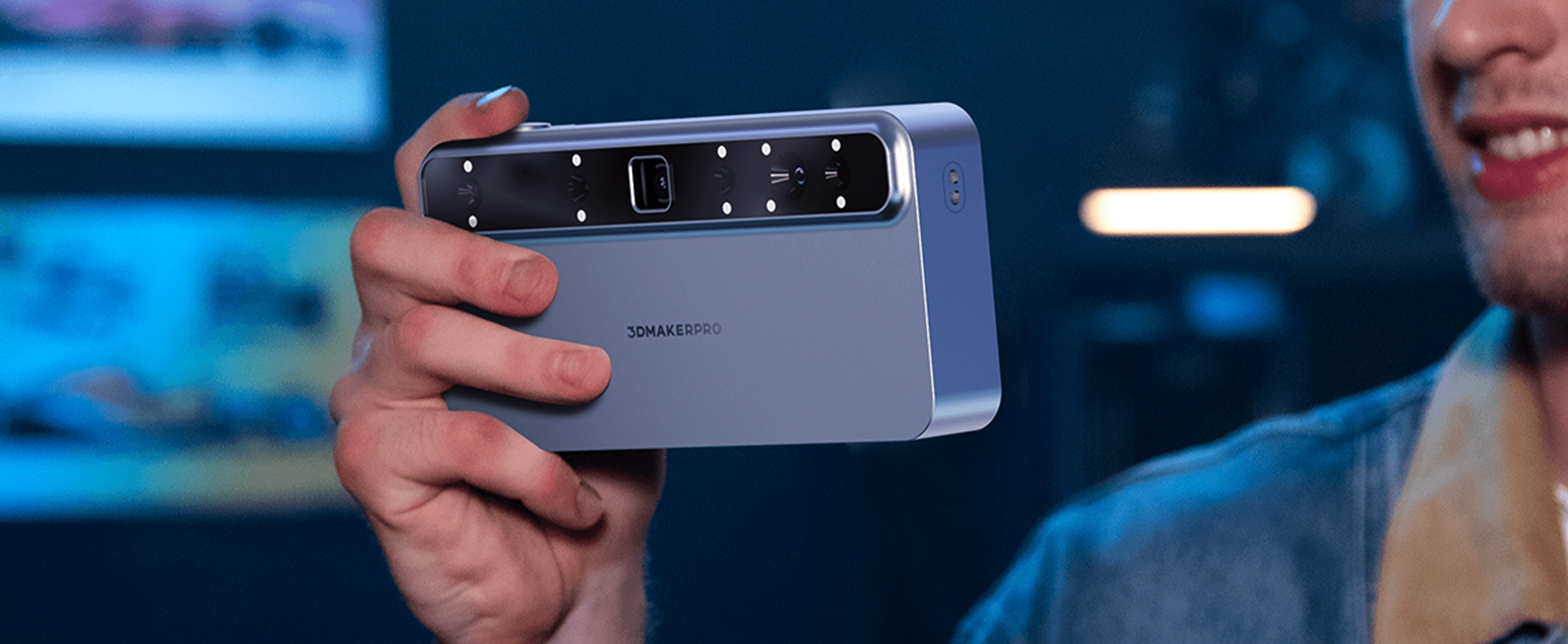

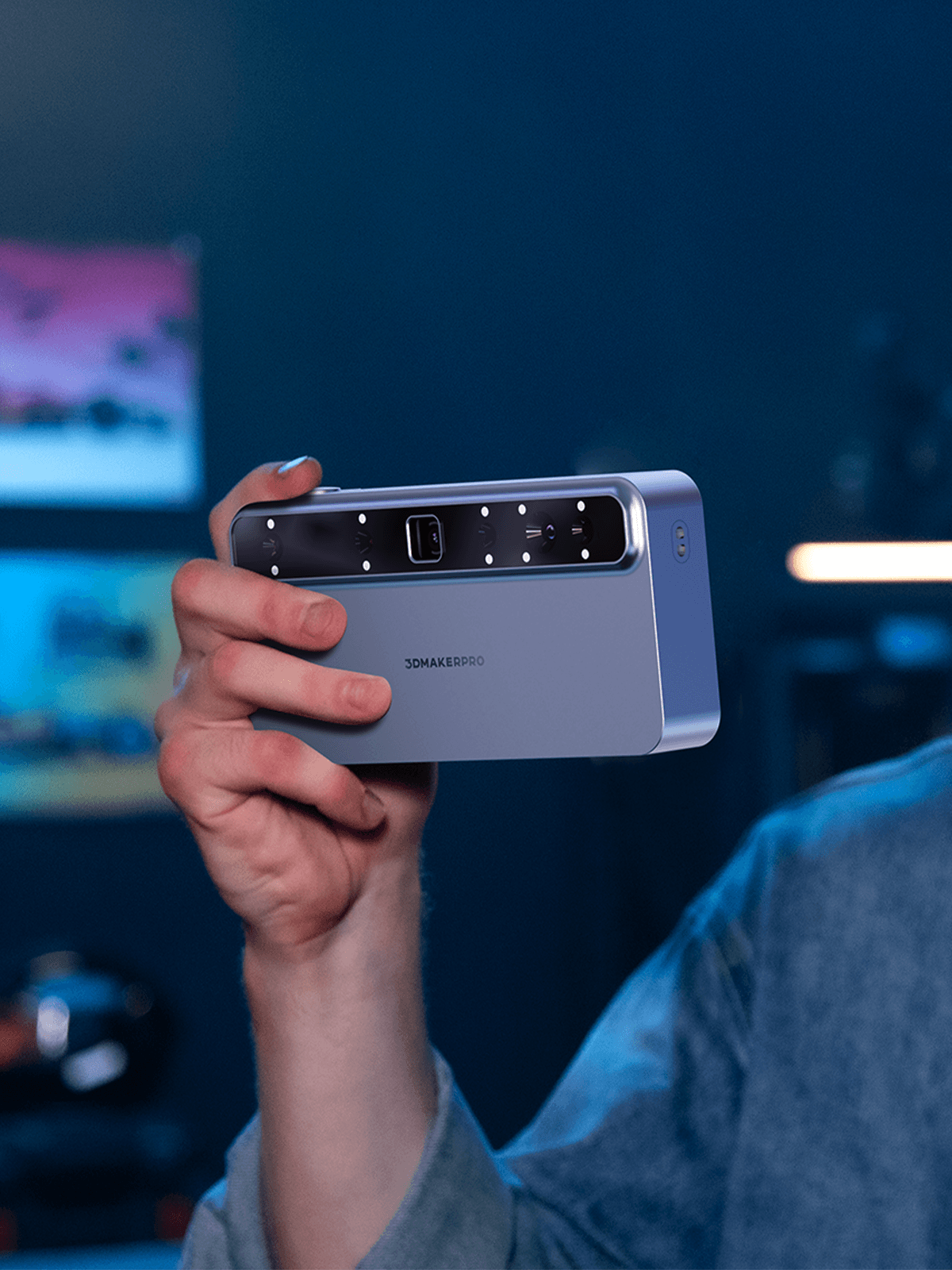

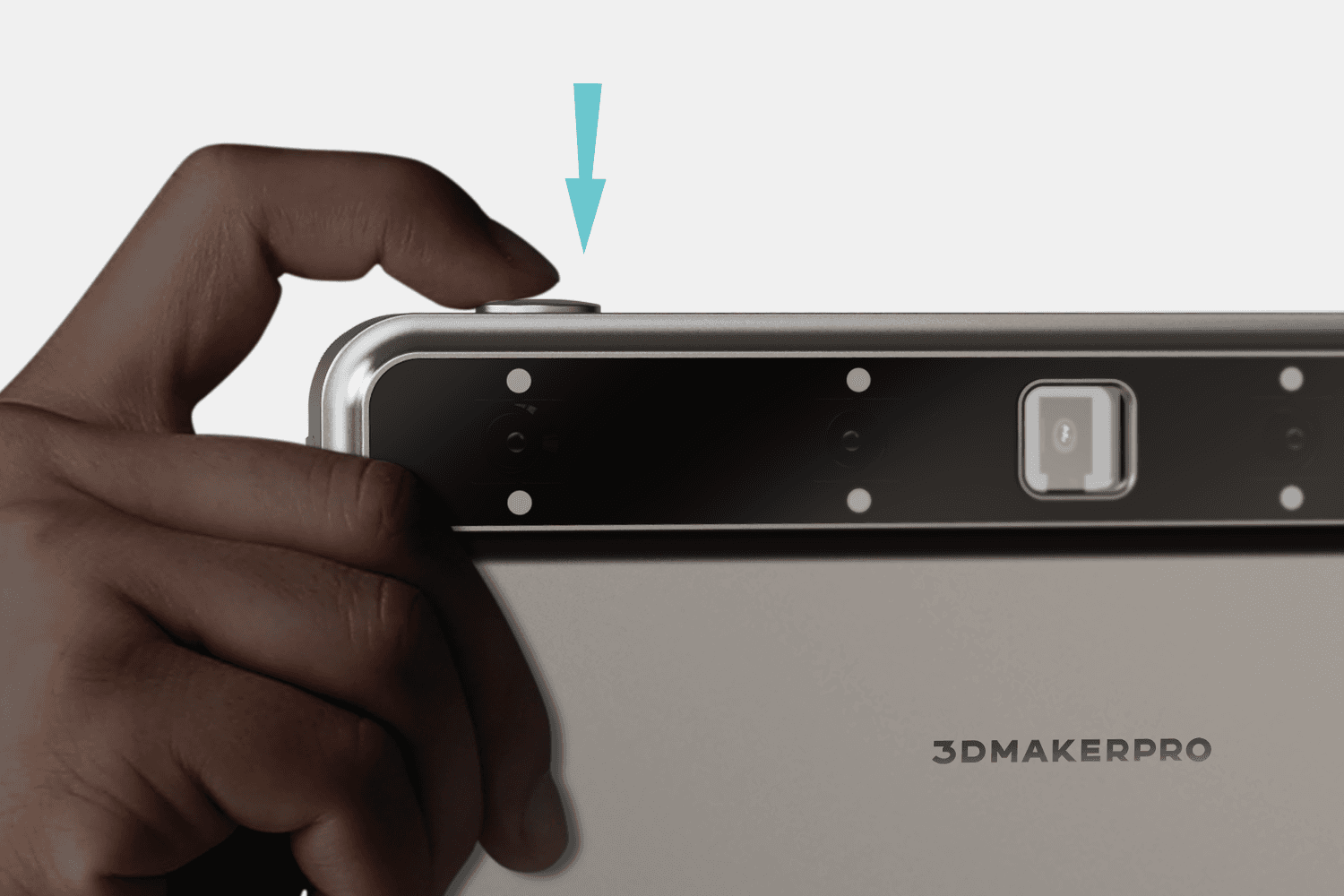

Hand pressing Toucan's quick button for fast scan start, pause, end, and single-shot photo mode.

Convenience Design

Toucan lets you use it just like a camera or smartphone, with operations that feel natural and intuitive.

Convenience Design

  • Hand pressing Toucan's quick button for fast scan start, pause, end, and single-shot photo mode.

    Hand pressing Toucan's quick button for fast scan start, pause, end, and single-shot photo mode.

Multi-Level Damping Wheel

Multi-Level Damping Wheel

Adjusts parameters, modes, and zoom effortlessly via the wheel.

Quick Buttons

For fast setup of scan start, pause, end, and serving as a single-shot photo mode.

Performance Parameters

  • Scan Type:

    Continuous Handheld Scan/ Photo Scan / Table Scan

  • Camera:

    3D Cameras *448 MP RGB Camera *1

  • Light Soure:

    Blue Laser Structured Light(Class1/Class3R)

  • Single-Frame Accuracy:

    ≤ 0.03mm (Small)/ ≤ 0.10mm (Large)

  • Resolution:

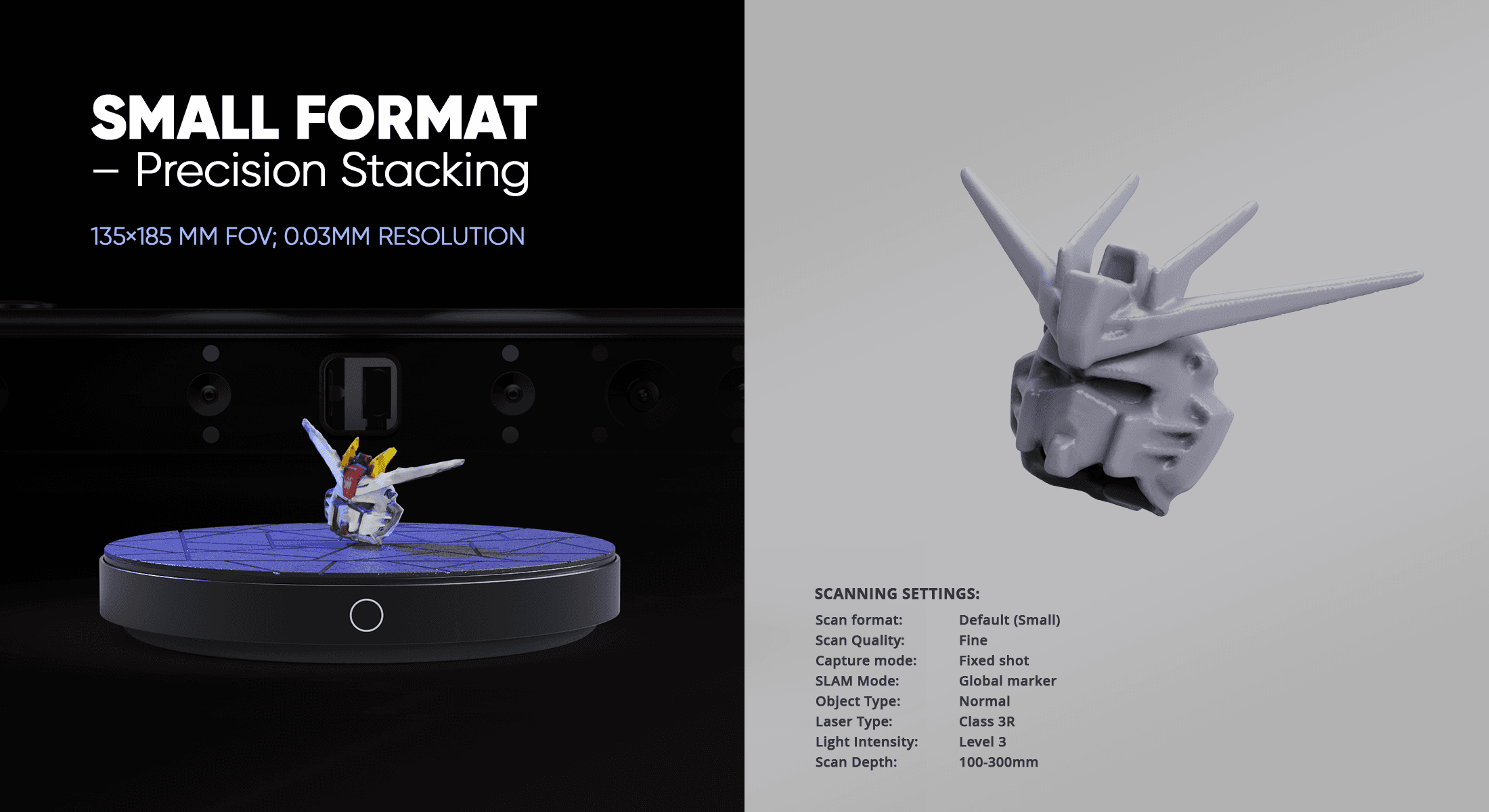

    ≤ 0.03mm (Fixed Shot)/ ≤ 0.05mm (Small)/ ≤ 0.10mm (Large)

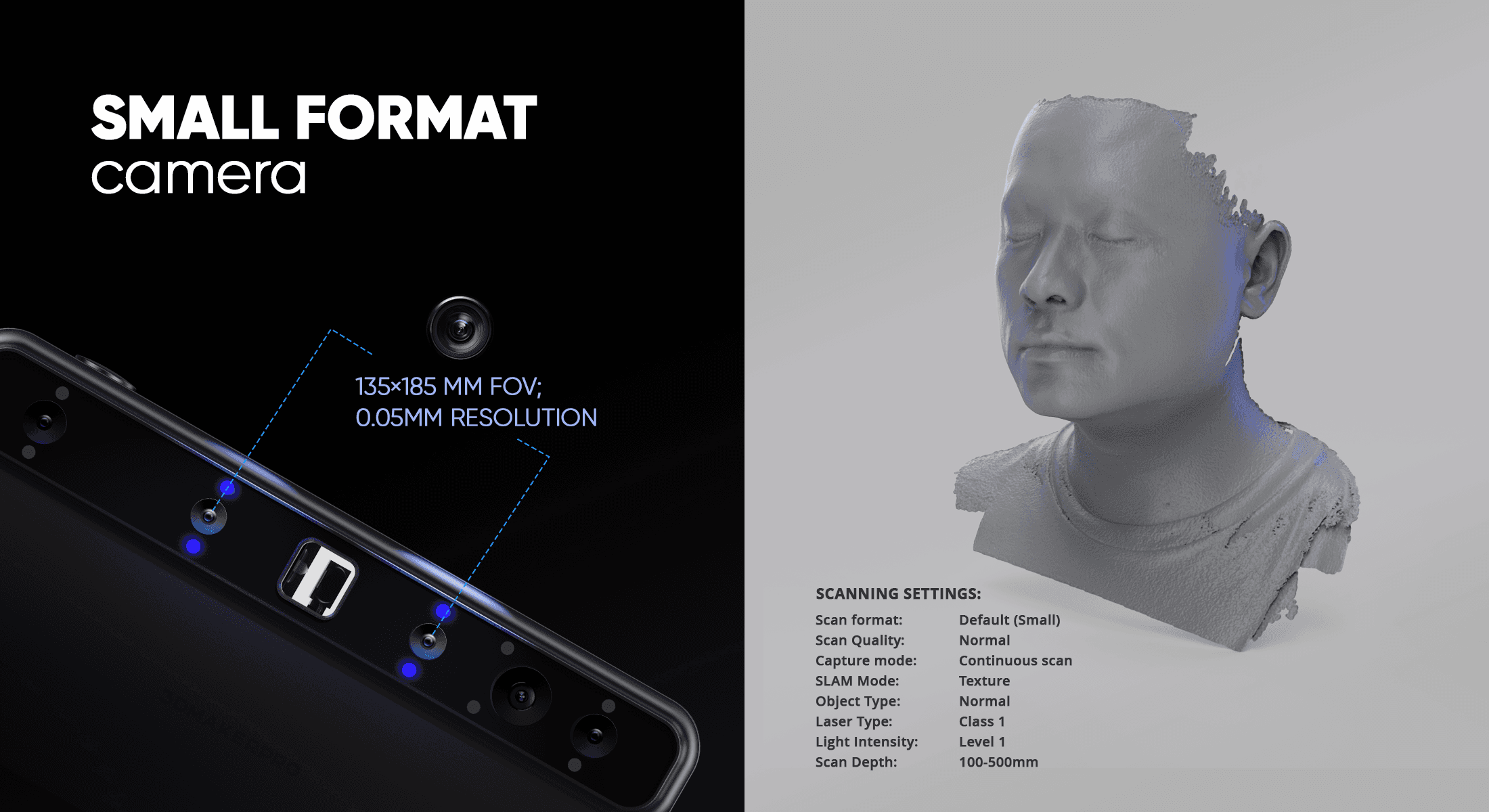

  • Scanning Range (FOV):

    135×185 mm (Small) / 1000×750 mm (Large)

  • Working distance:

    200–1000 mm

  • Scan Speed:

    Up to 15 fps

  • Processor:

    8-core 2.4 GHz CPU + Mali-G52 GPU

  • Memory/ Built-in Storage:

    32 GB DDR4 / 256 GB eMMC

  • Battery:

    6600 mAh

  • Connectivity:

    Wi-Fi 6, Bluetooth4.1, Interface: USB-C

  • Sensors & Interaction:

    Position Sensor: 9-axis IMUTracking Method: Features/ Markers/ Global MarkersButton: 2 Scroll Wheel : 1

  • Volume:

    200×93×37.5mm

  • Weight:

    735g

JM_Studio software 3dmakerpro

Free 3D Scanning Software by 3DMakerpro

From connection and calibration to optimization and export, JMStudio keeps your entire scanning workflow simple and guided. COMPATIBLE SOFTWAREJMStudio - Built for Your Scanner The exclusive 3D scanning software by 3DMakerpro. Real-time capture, one-click optimization, and seamless export to STL, OBJ, PLY & ASC formats. Real-Time Capture One-Click Optimize STL / OBJ / PLY / ASC Export Free with every scanner

Toucan 3D Scanner

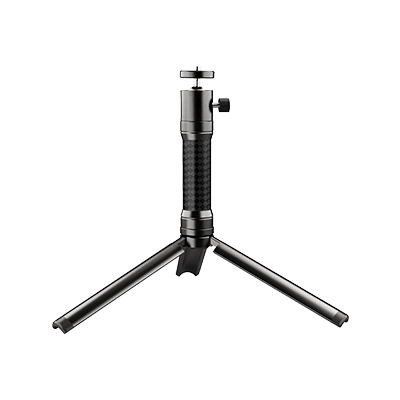

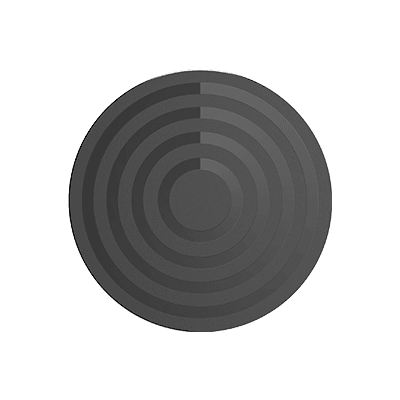

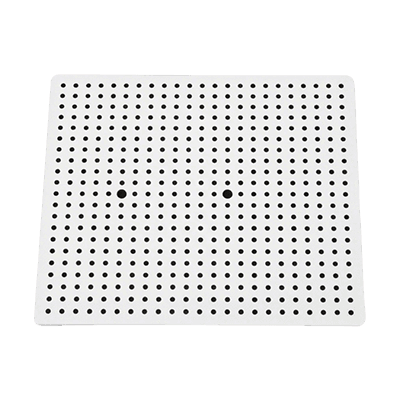

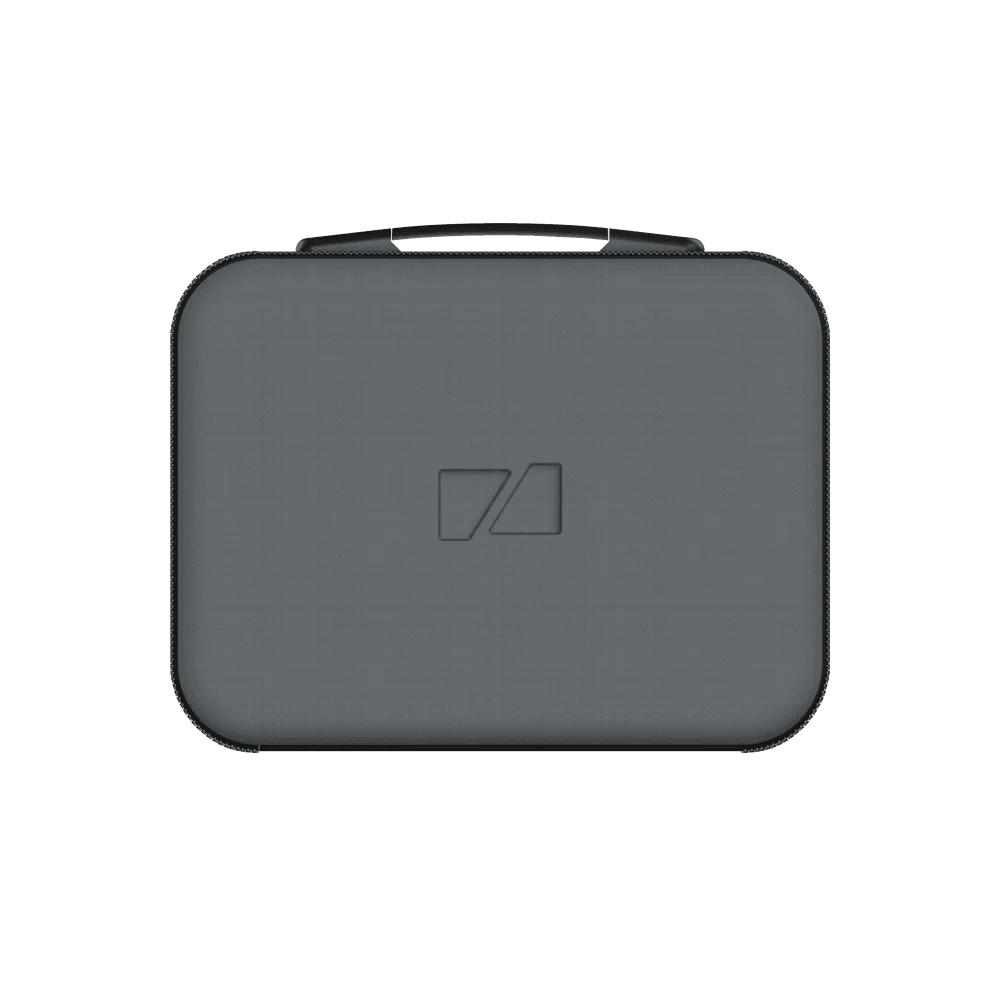

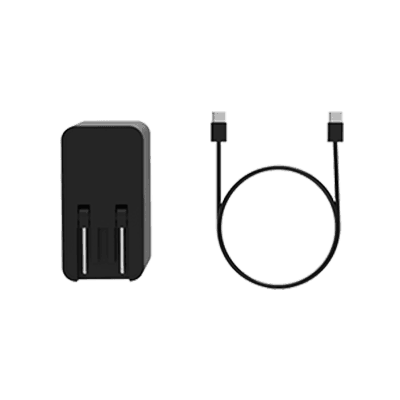

Standard Toucan 3D Scanner × 1 Power Adapter & Cable × 1 Manual Turntable × 1 Markers × 1 Calibration Board × 1 Silicone case × 1 Lanyard × 1 Premium Tripod × 1 Carrying Case × 1 Geomagic Wrap Lite (license)

Toucan 3D Scanner

  • Toucan 3D Scanner - 1

  • Toucan 3D Scanner - 2

  • Toucan 3D Scanner - 3

  • Toucan 3D Scanner - 4

  • Toucan 3D Scanner - 5

  • Toucan 3D Scanner - 6

  • Toucan 3D Scanner - 7

  • Toucan 3D Scanner - 8

  • Toucan 3D Scanner - 9

Technical specificationsDimensions, materials, compatibility and connectivity.

The details that matter

Technical specifications

Manufacturer figures, with plain-English notes where useful.

20 specifications

Key specifications

Accuracy
Not specified
Scan volume (min–max object size)
Not specifiedSupported object sizes, not the sensor working distance.
Colour / texture capture
Not specified
Scan speed
Up to 15 fps
Form factor
Not specified
Warranty
Not specifiedCheck the stated cover and any conditions for your purchase.

Additional specifications

Resolution
≤ 0.03mm (Fixed Shot)/ ≤ 0.05mm (Small)/ ≤ 0.10mm (Large)
Connectivity
Wi-Fi 6, Bluetooth4.1, Interface: USB-C
Camera
3D Cameras *448 MP RGB Camera *1
Volume
200×93×37.5mm
Weight
735g
Battery
6600 mAh
Processor
8-core 2.4 GHz CPU + Mali-G52 GPU
Scan type
Continuous Handheld Scan/ Photo Scan / Table Scan
Light soure
Blue Laser Structured Light(Class1/Class3R)
Working distance
200–1000 mm
Scanning range fov
135×185 mm (Small) / 1000×750 mm (Large)
Sensors interaction
Position Sensor: 9-axis IMUTracking Method: Features/ Markers/ Global MarkersButton: 2 Scroll Wheel : 1
Single frame accuracy
≤ 0.03mm (Small)/ ≤ 0.10mm (Large)
Memory built in storage
32 GB DDR4 / 256 GB eMMC
Frequently asked questionsAnswers to common questions about this product.
1. Does the Toucan 3D Scanner support color textures?

Yes, the Toucan 3D Scanner features a 48MP color texture camera, allowing it to generate detailed color models.

2. What should I keep in mind when using Toucan from 3DMakerpro for the first time?

Toucan 3D Scanner benefits from the well-established 3DMakerpro ecosystem. This includes free scanning software (JMStudio), the Reverse Engineering tool (Geomagic Wrap for 3DMakerpro), a wide range of accessories, and a comprehensive after-sales support network.

3. I'm a long-time 3DMakerpro user. How does the Toucan differ from previous scanners?

Thank you for your support of 3DMakerpro! The Toucan is Prusa's first all-in-one scanner, utilizing Phase-Shifting Structured Light technology. This makes it especially effective for scanning thin and delicate objects. Notably, the Toucan can independently complete scanning and meshing tasks without being tethered to a computer. However, you can still use JMStudio and Geomagic for further processing.

4. What is the Toucan workflow like?

Toucan 3D Scanner is capable of independently handling tasks such as scanning, point cloud editing, model fusion, and texture mapping. Once you've completed your scans, you can export the files to a computer via JMStudio for further processing or application.

5. What is the range of a Toucan single frame?

Near range: 135 x 185 mmFar range: 1000 x 750 mm

6. Does the Toucan 3D Scanner use the same scanning software as the Moose/Seal 3D Scanner?

Yes, all 3DMakerpro 3D scanners, including the Toucan, utilize JMStudio software.

7. What file formats does JMStudio software support for export?

JMStudio software supports exporting to the following formats: OBJ, STL, PLY, and ASC. If you need additional formats, you can use third-party software for conversion.

8. Can Prusa 3D print the scanned model directly?

Yes, if you export the file in STL format, it can be directly imported into any slicing software for 3D printing.

9. Can I modify the scanned model using other 3D design software?

Yes, the scanned model can be exported in formats such as OBJ and STL, which are compatible with all major design software, including Autodesk CAD, Blender, C4D, Maya, Rhino, ZBrush, and Fusion 360.

10. Can my scanned models be used in VR?

Yes, Prusa's scanned models can be directly imported into Unreal Engine or Unity3D to create VR applications. They also support the Apple ARKit for AR application development.

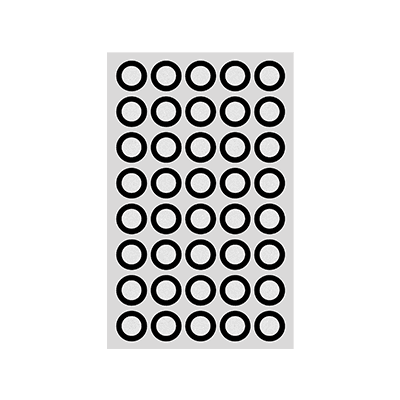

11. Do I need to apply markers for 3D scanning?

You can apply markers, but you don't need to. Applying markers is recommended if the object's features are unclear or difficult to identify. Toucan supports three tracking modes: feature recognition (no markers, local markers, and global markers).

13. Is scanning faces with the Toucan 3D Scanner harmful to the eyes?

The Toucan 3D Scanner has a faces mode that reduces the light level to Class 1, making it eye-safe. However, direct viewing of the light source is not recommended.
