Turtle Series S Module

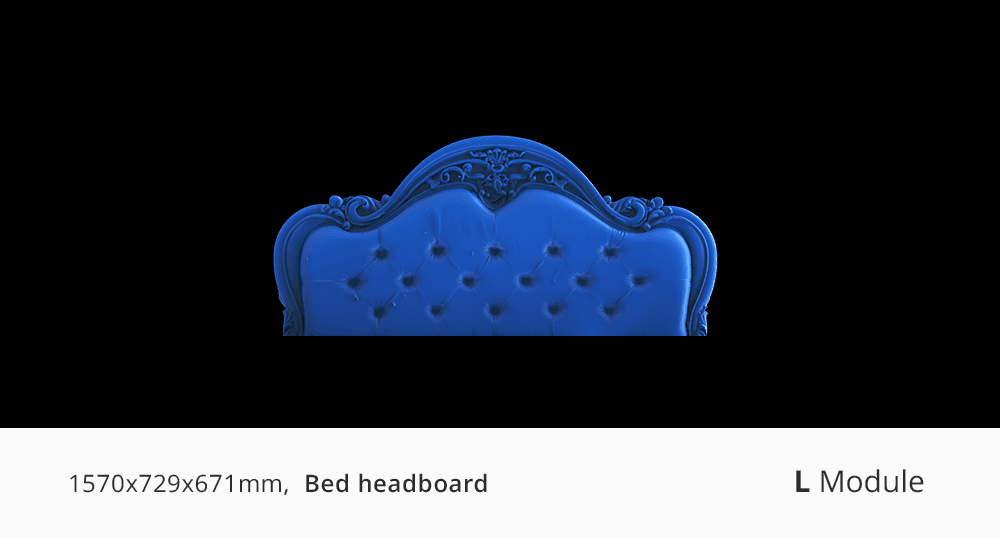

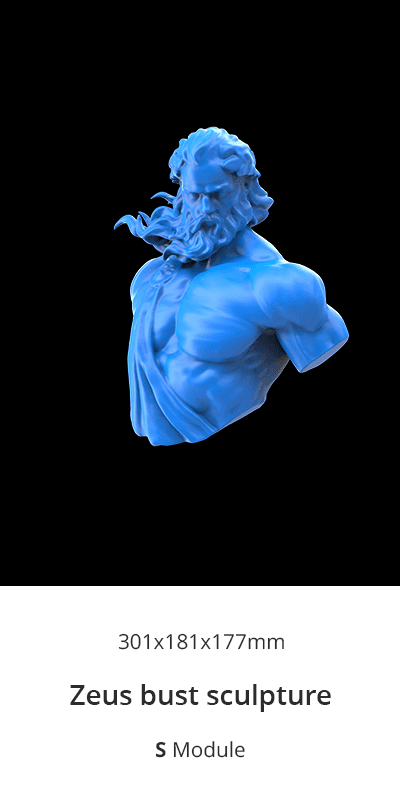

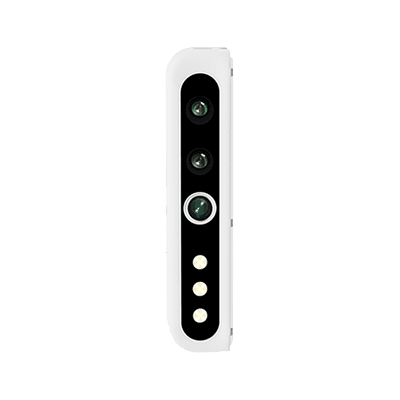

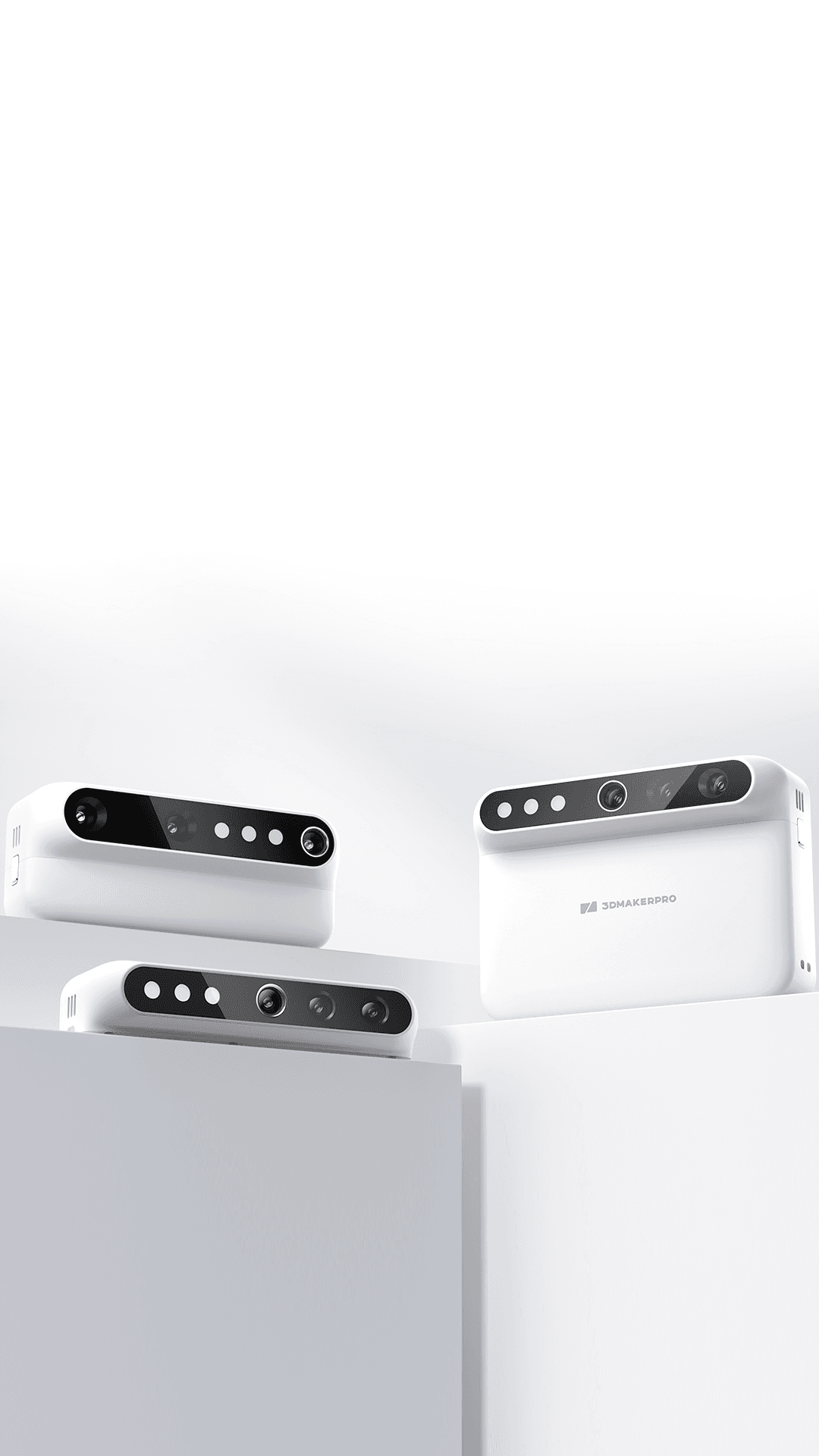

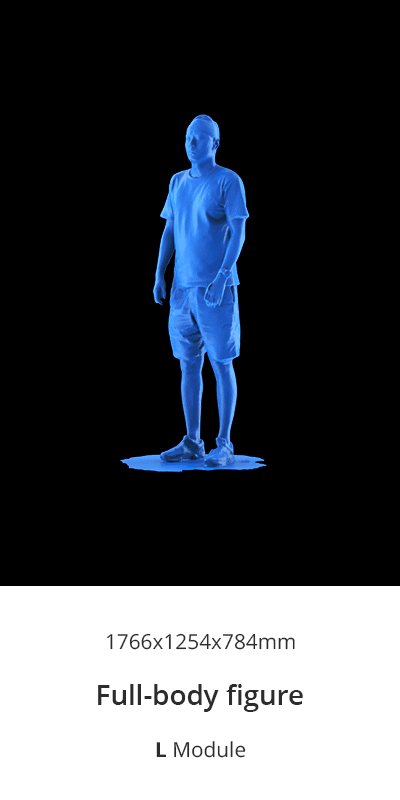

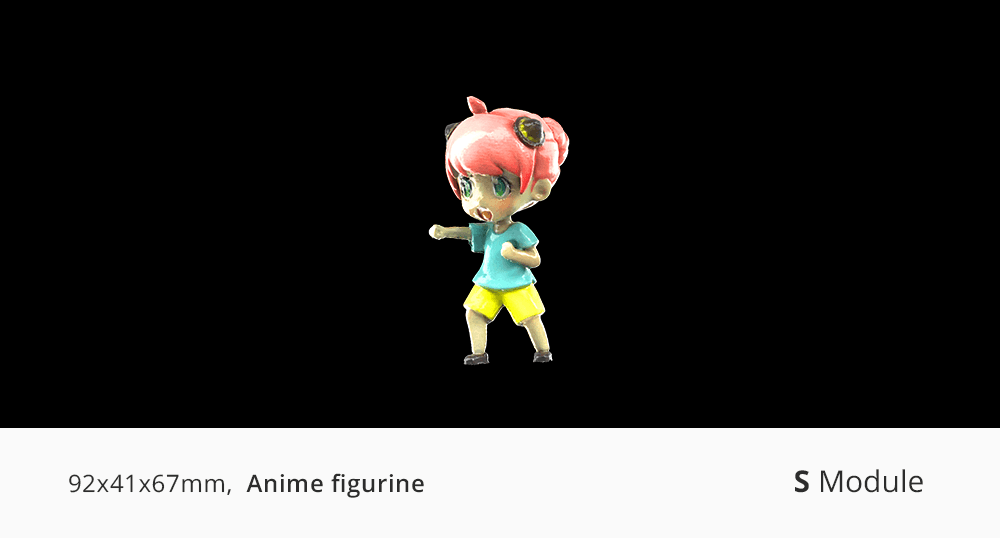

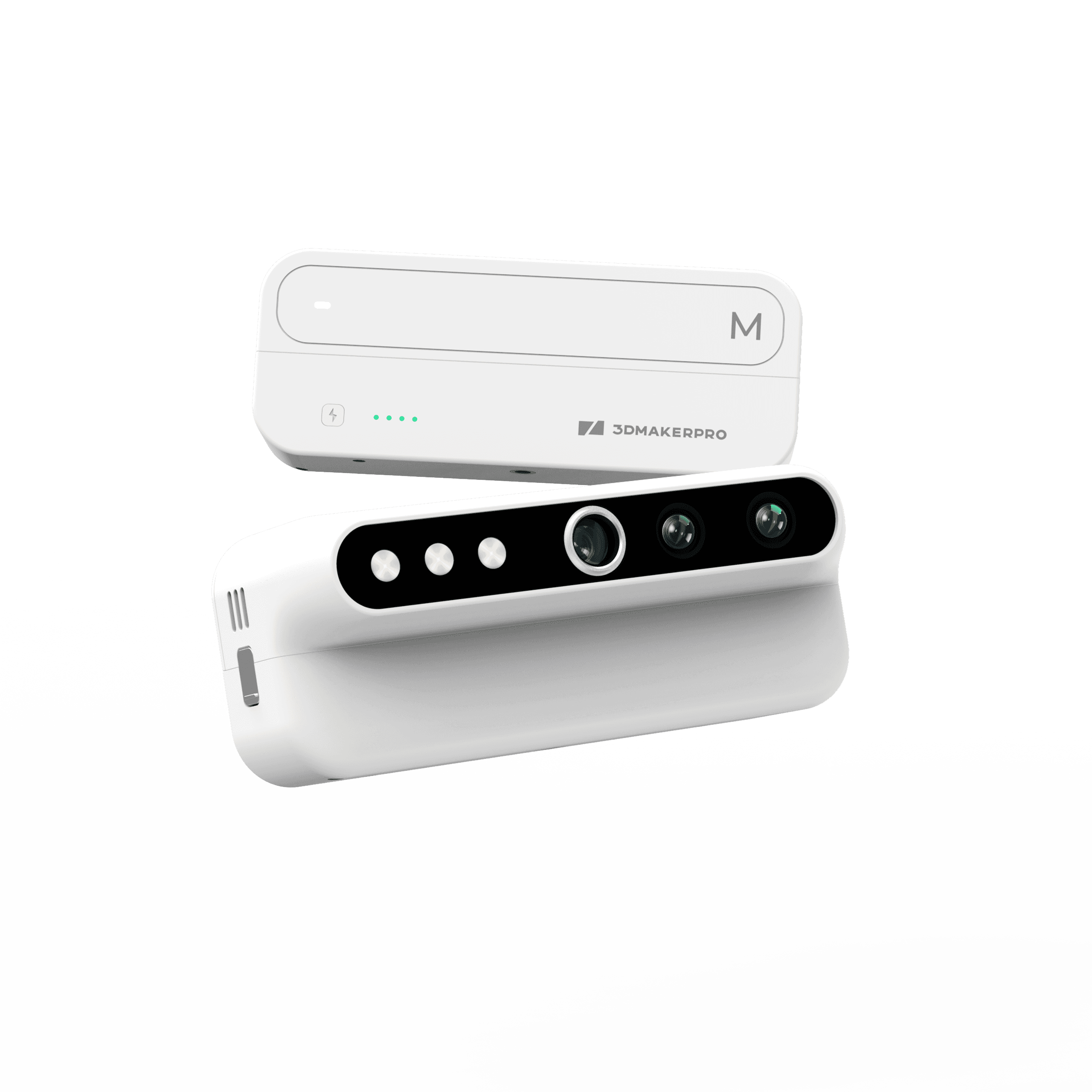

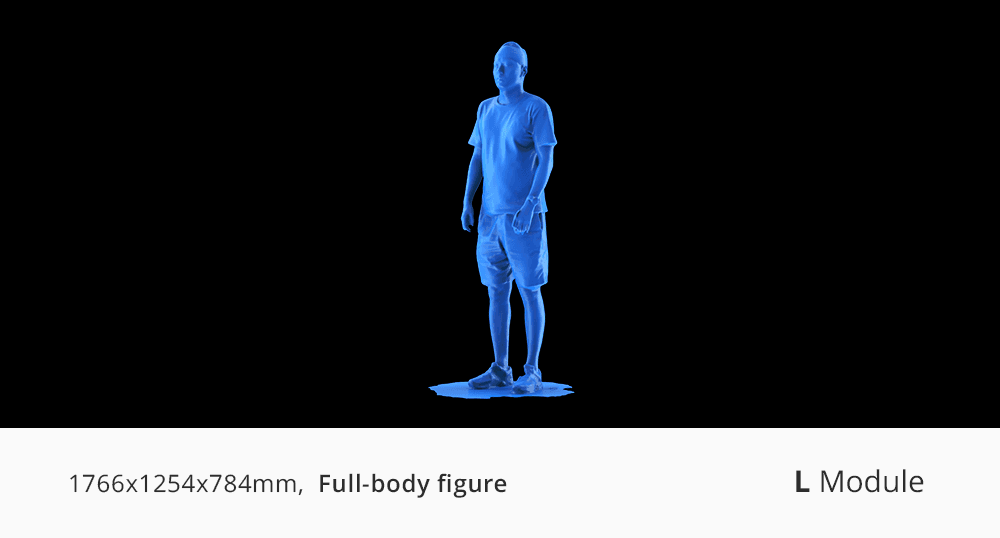

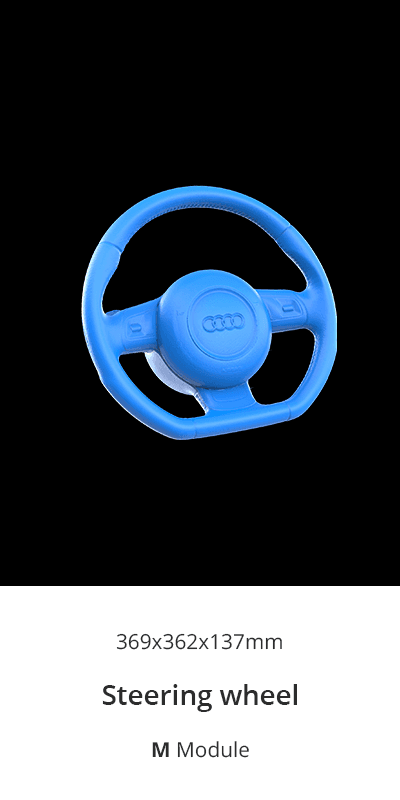

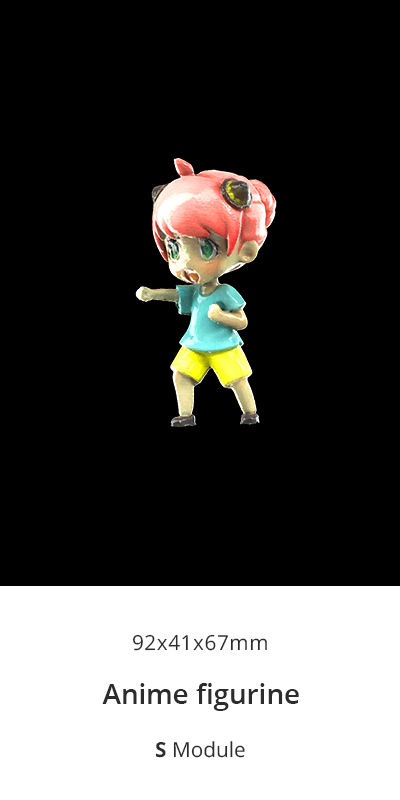

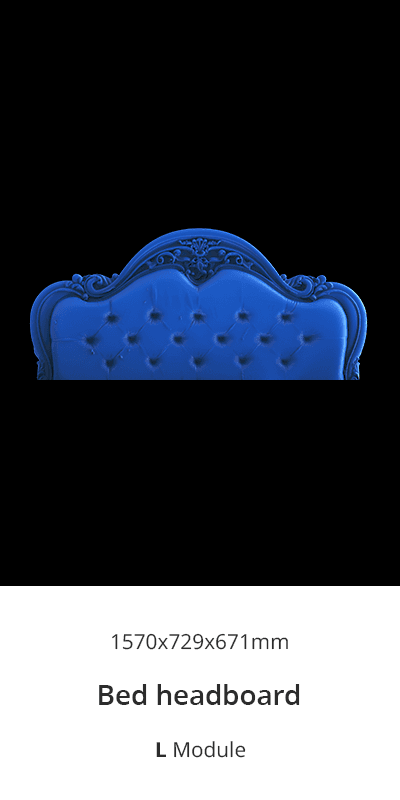

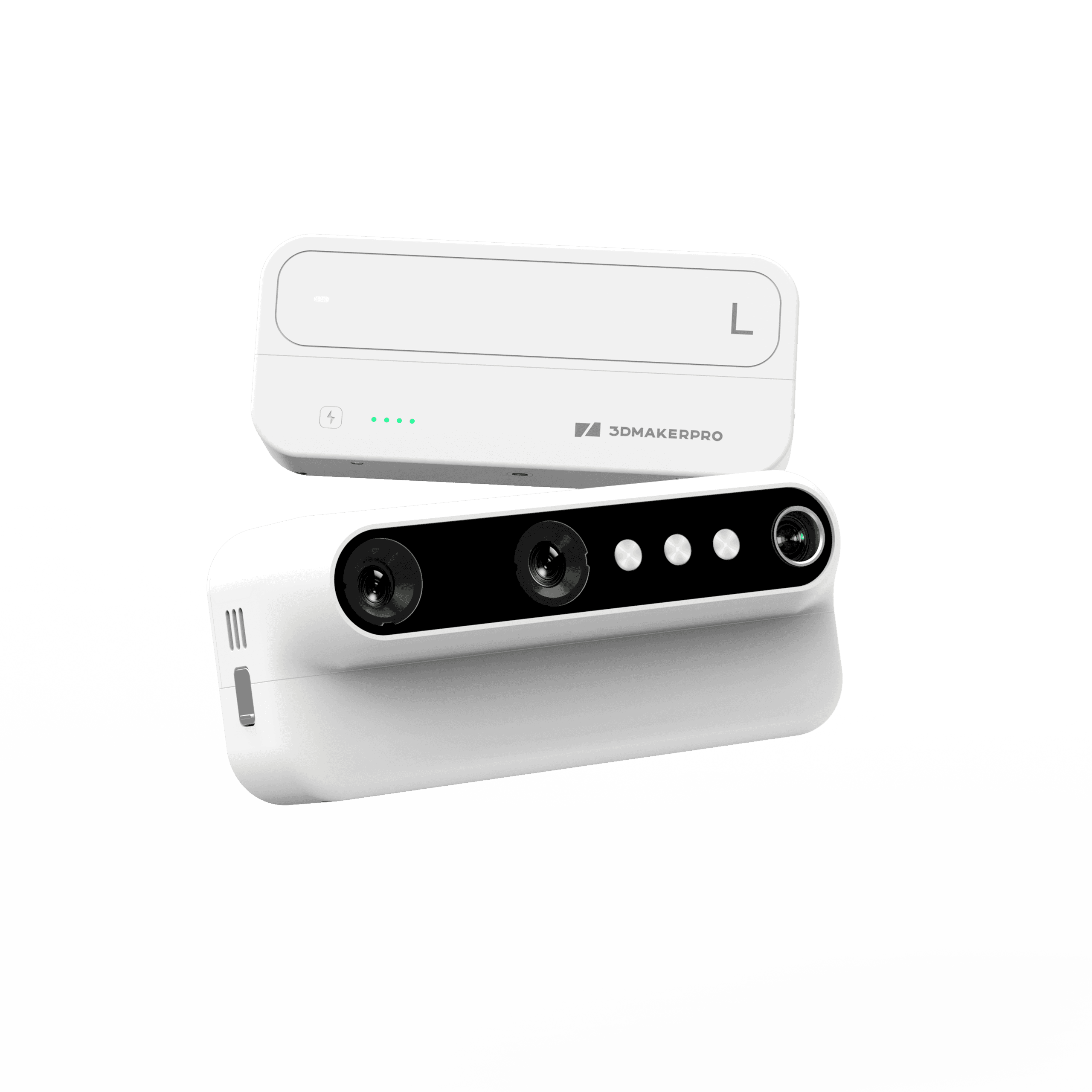

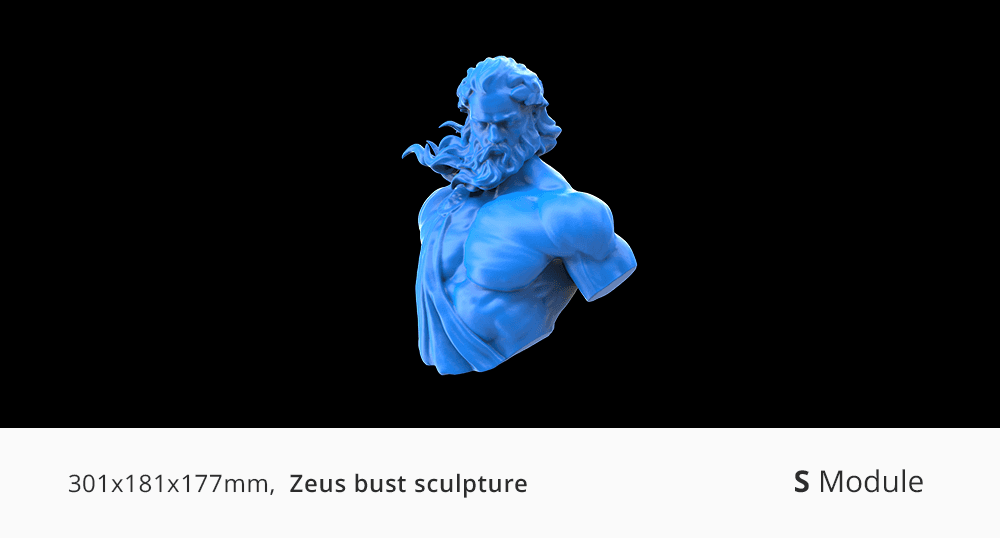

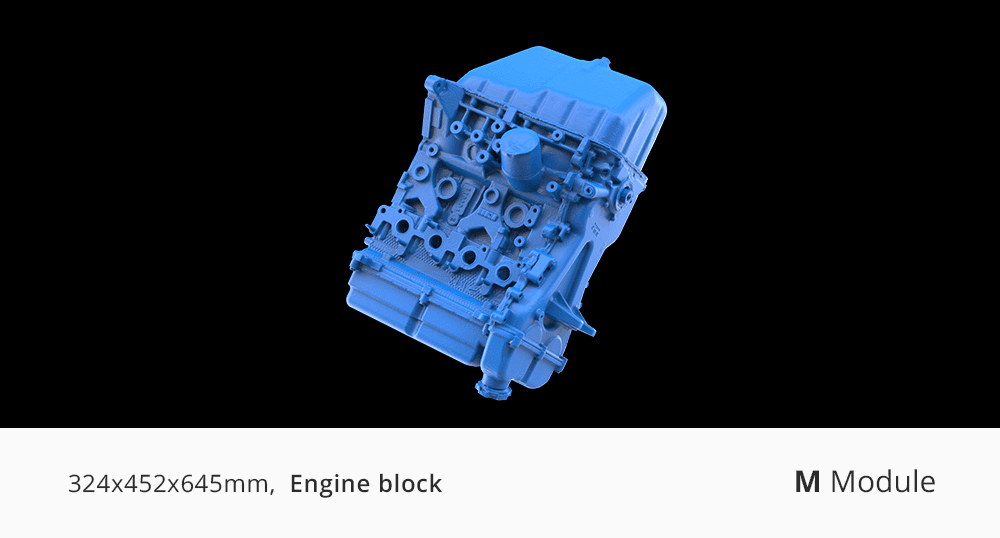

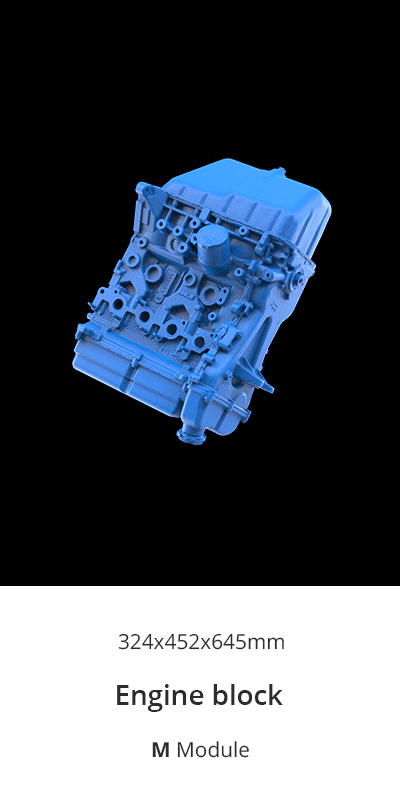

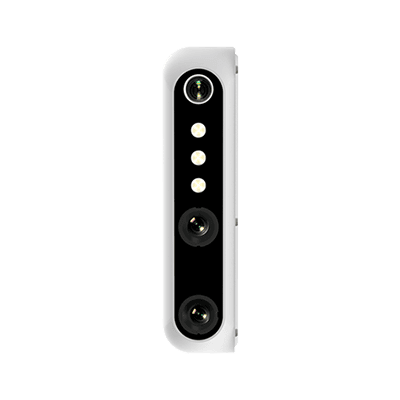

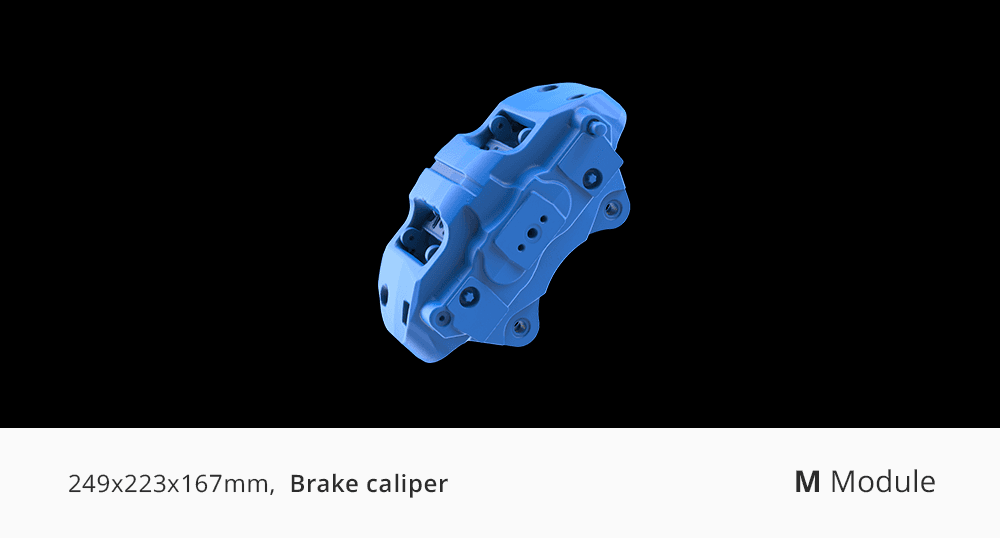

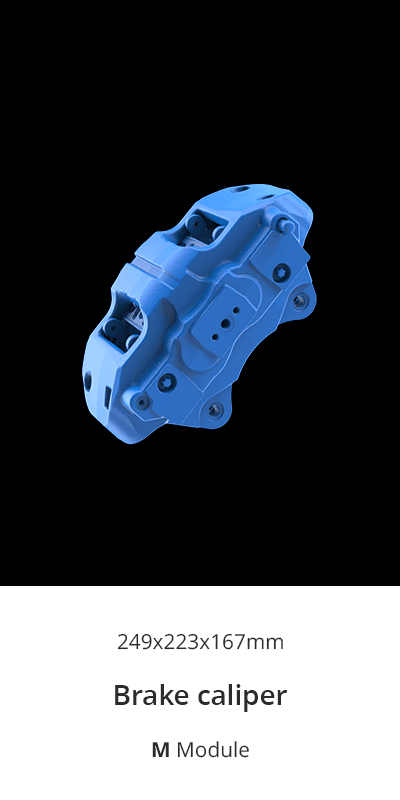

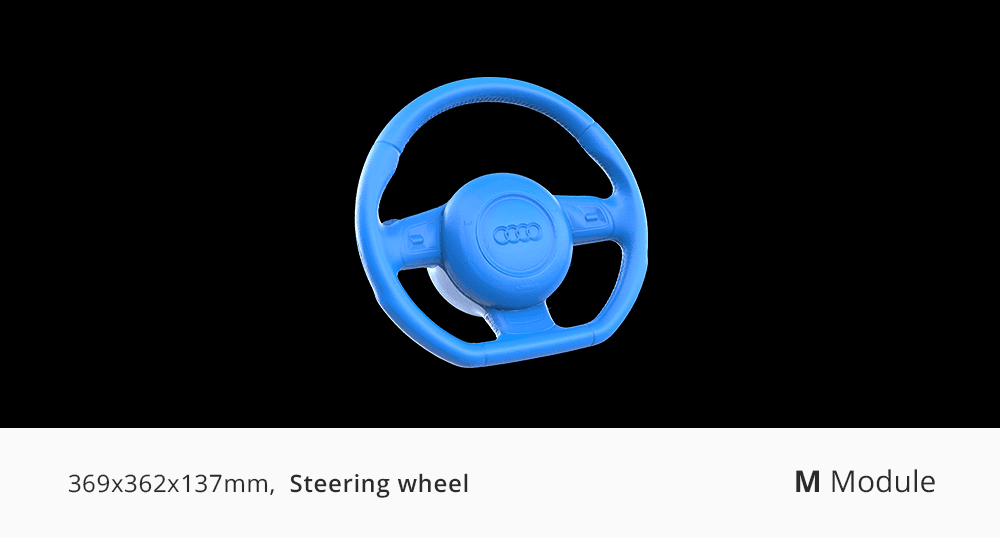

Match the module to the objects you scan most. S is for small, detailed pieces like miniatures and jewelry-scale parts (10–300mm). M is the everyday workhorse for mid-size objects such as engine parts, helmets, and shoes (15–1500mm). L covers large items like bumpers, furniture, and full-body scans (100–2000mm). If your work spans two ranges, most people start with M and add a second module later - the Control Pad works with all three.

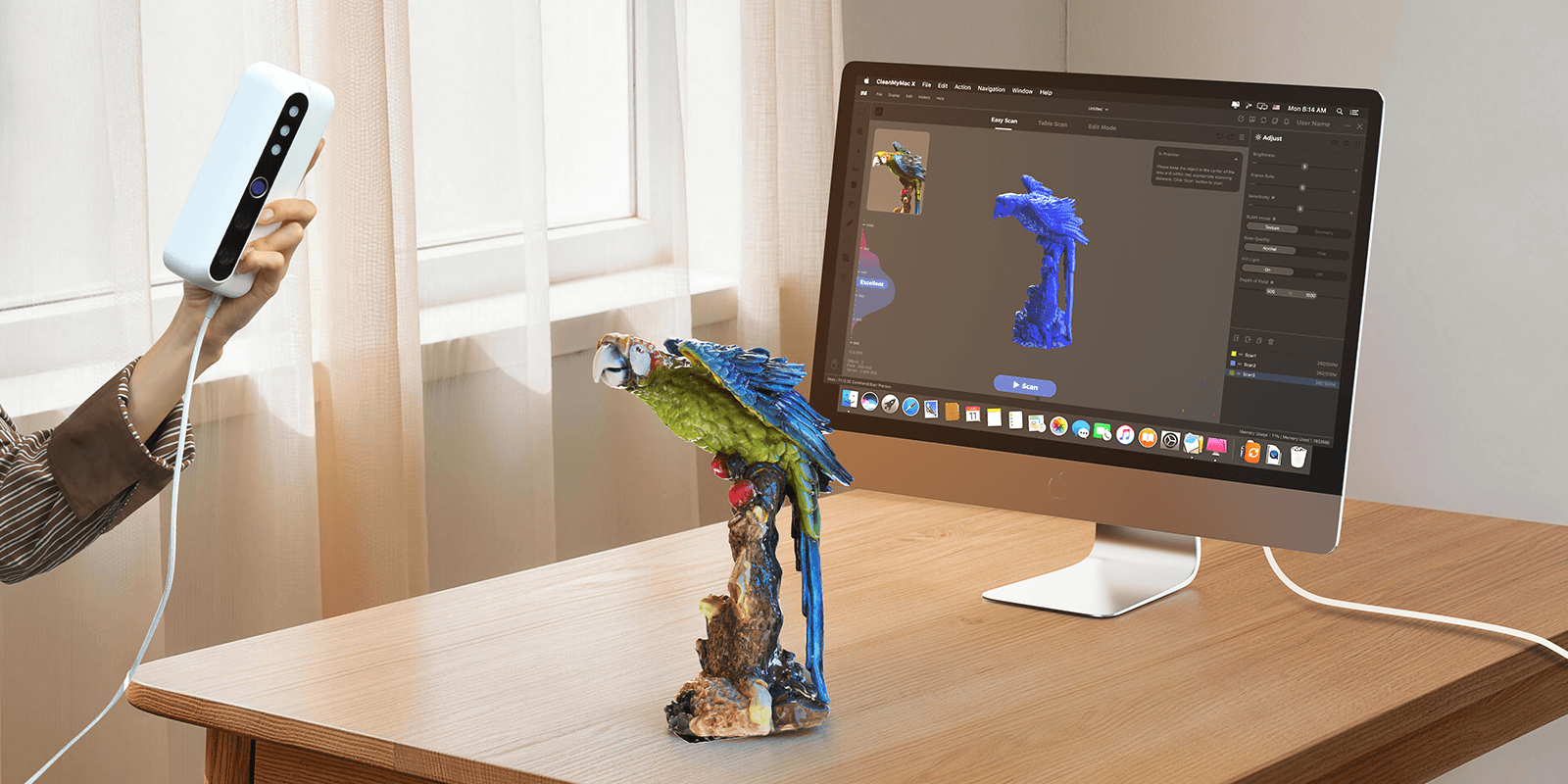

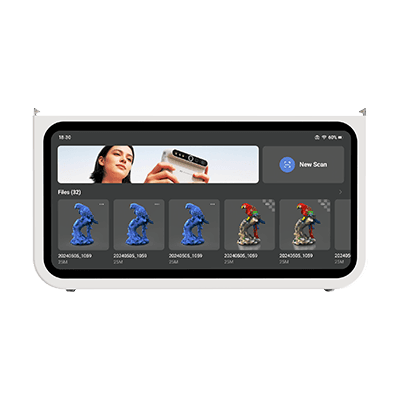

A module is the scanner; the Control Pad is what makes it standalone. Connect a module to a computer and it scans on its own - no Control Pad needed. Add the Control Pad and the same module runs untethered, with capture, processing, and export all on the device. The Control Pad cannot scan by itself, and it works only with Turtle Series modules - not with other 3DMakerpro models.

No. Turtle runs the full workflow - scanning, processing, and export - on the Control Pad itself, with results on the 6.4″ screen. Connecting to a PC is optional and unlocks high frame rate mode at up to 30fps for a smoother preview.

No. Turtle aligns on the object's own geometry and texture, so there's nothing to stick on and nothing to clean off afterwards. For very smooth, featureless surfaces such as polished metal or clear plastic, a light coat of scanning spray adds the surface detail the scanner needs - still without markers.

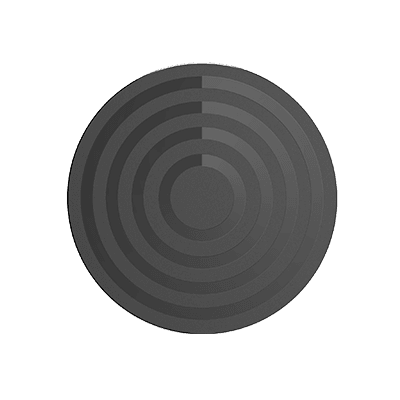

No calibration board, no setup wizard. Connect a module to the Control Pad, and calibration loads automatically. Most users complete their first usable scan on the first day. Turntables and spray are optional aids, not requirements.

JMStudio is free and included - live capture, one-tap optimization, and export to STL, OBJ, PLY, and ASC. You can also skip it entirely: raw point clouds go straight into CloudCompare, MeshLab, Geomagic, and your CAD or slicing tools. There is no format lock-in and no subscription.

Objects with visible surface features scan best - machined parts, sculptures, furniture, shoes, automotive components, and printed models. All three modules handle matte dark surfaces. Glossy, transparent, and highly reflective surfaces are harder for any structured-light scanner; a light coat of scanning spray is the reliable fix.

Modules are swapped between scans, not during one. Stop the current scan, change the module, and reopen your project - calibration for the new module loads automatically. It works like changing a camera lens: you're choosing the right tool for the next object, not interrupting your work.

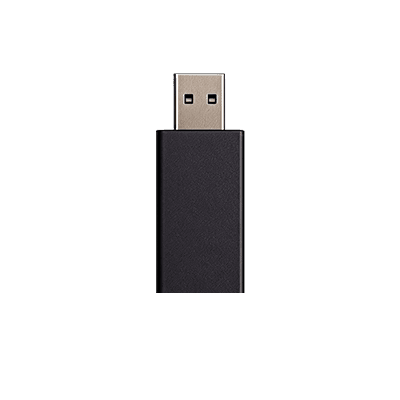

Three ways: 5GHz Wi-Fi, a direct hotspot connection from the Control Pad, or a USB drive. Over 5GHz Wi-Fi a 3GB project transfers in about 35 seconds. The device compresses your project automatically before export. Actual speeds vary with your network environment.

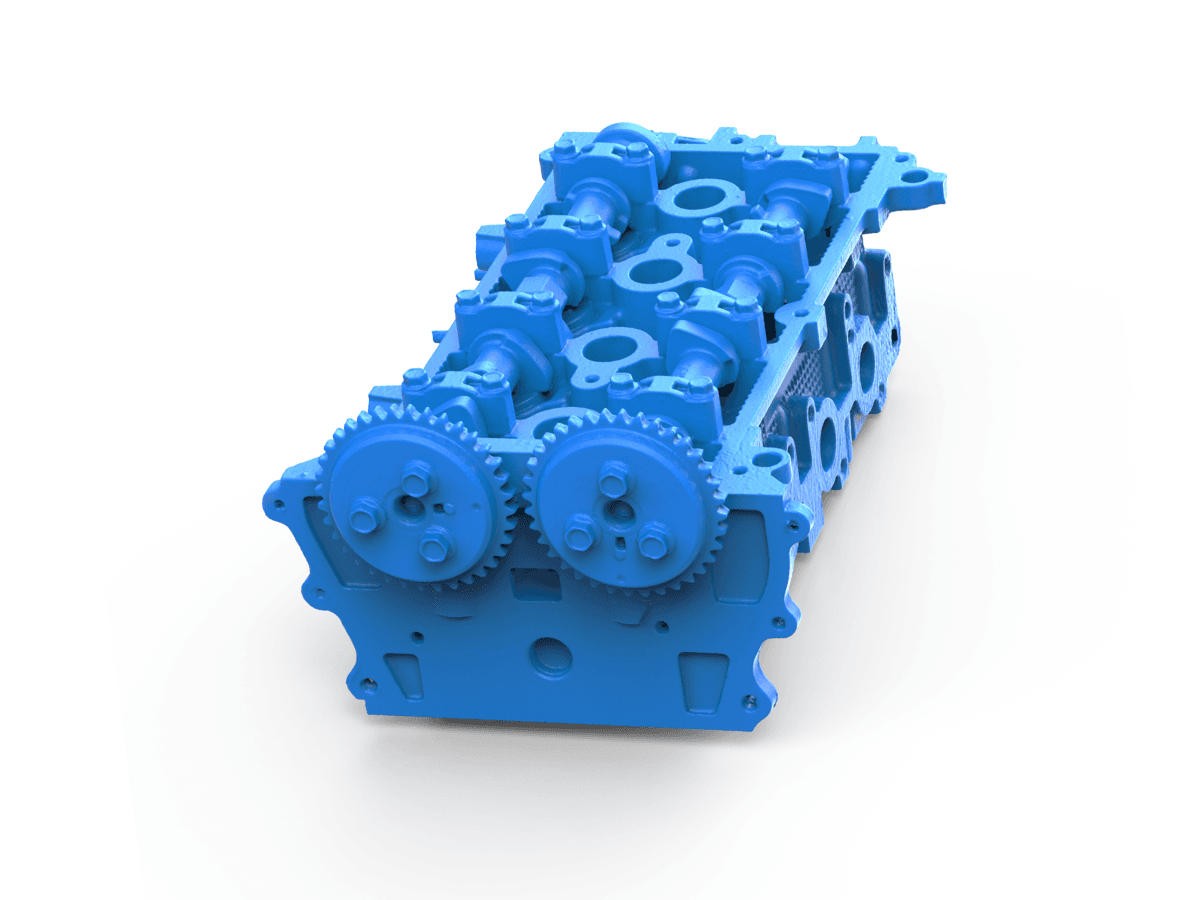

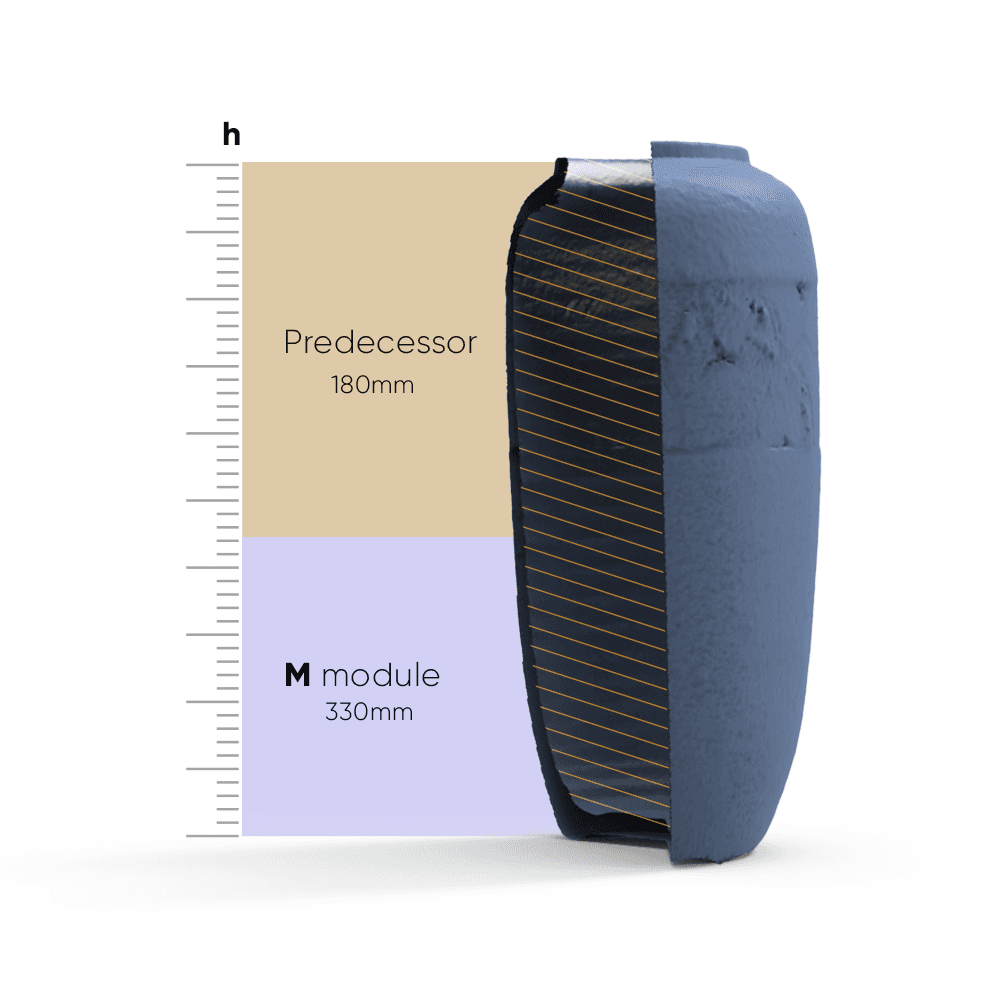

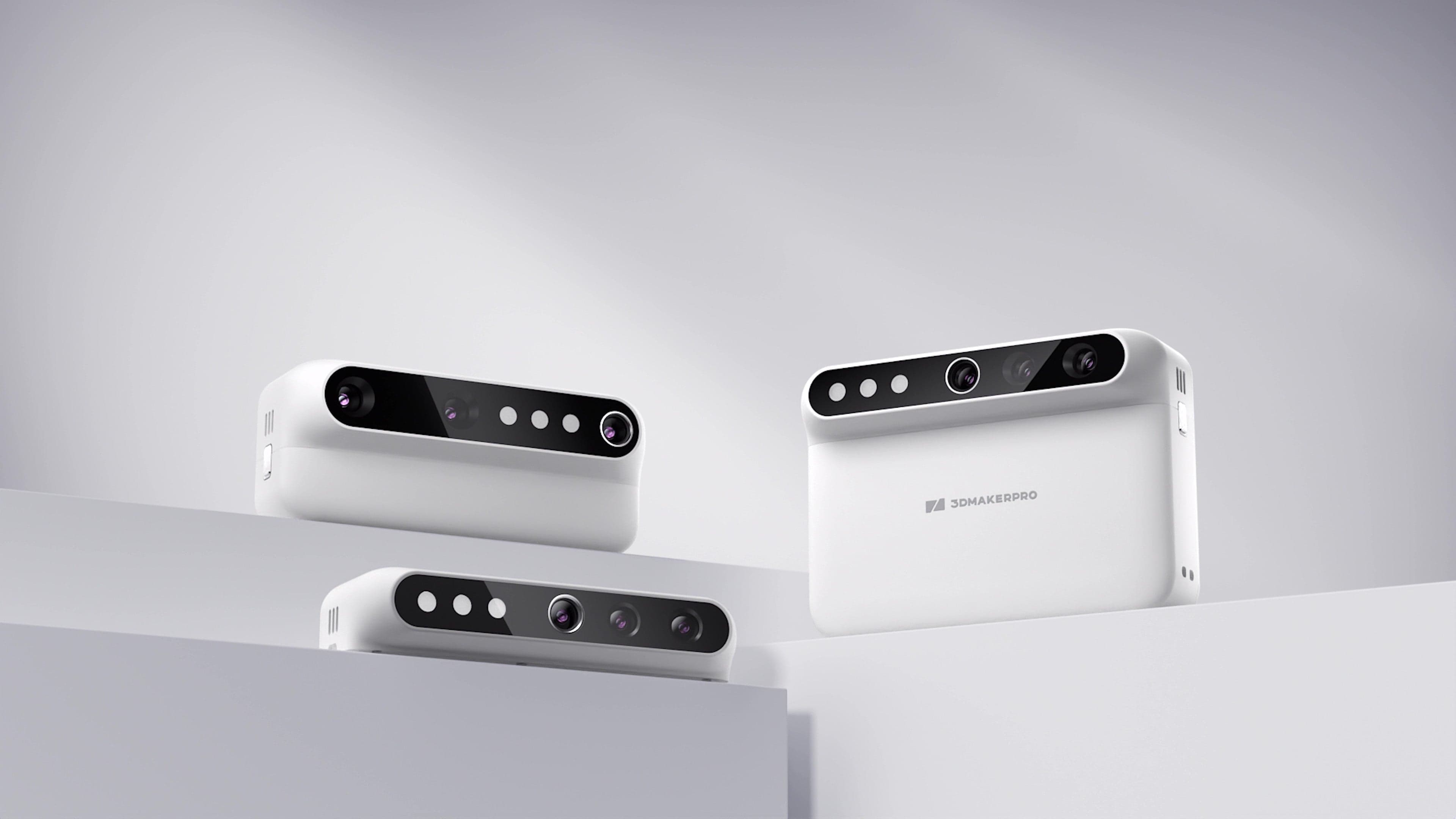

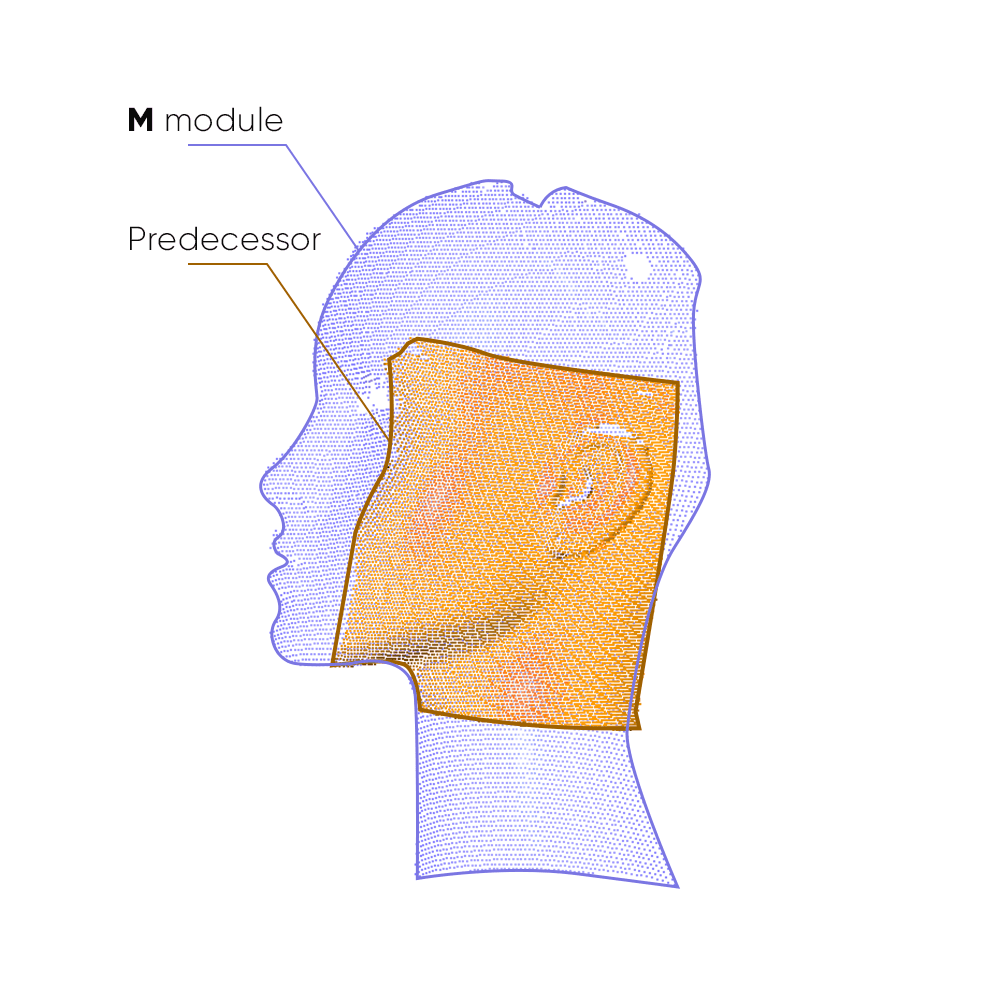

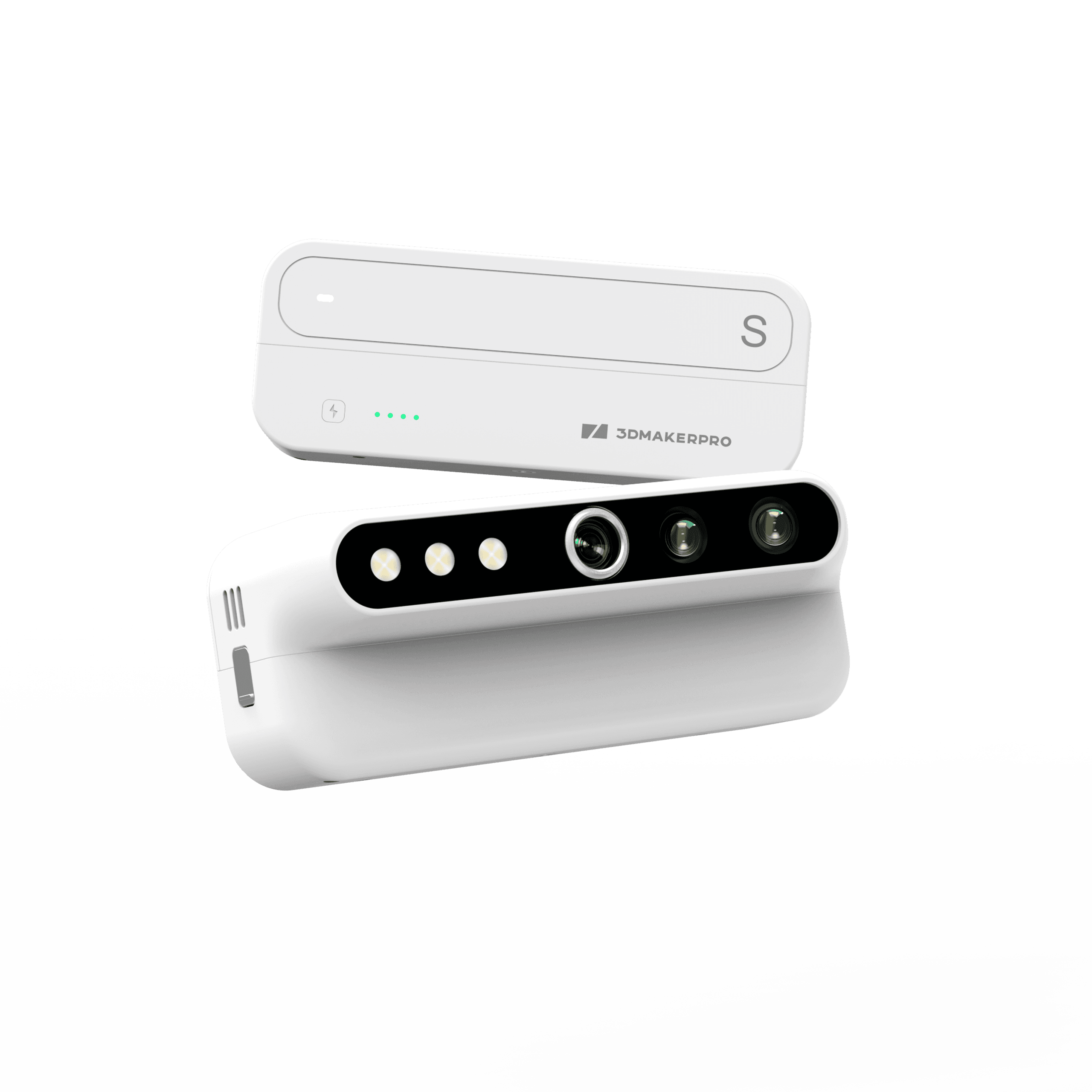

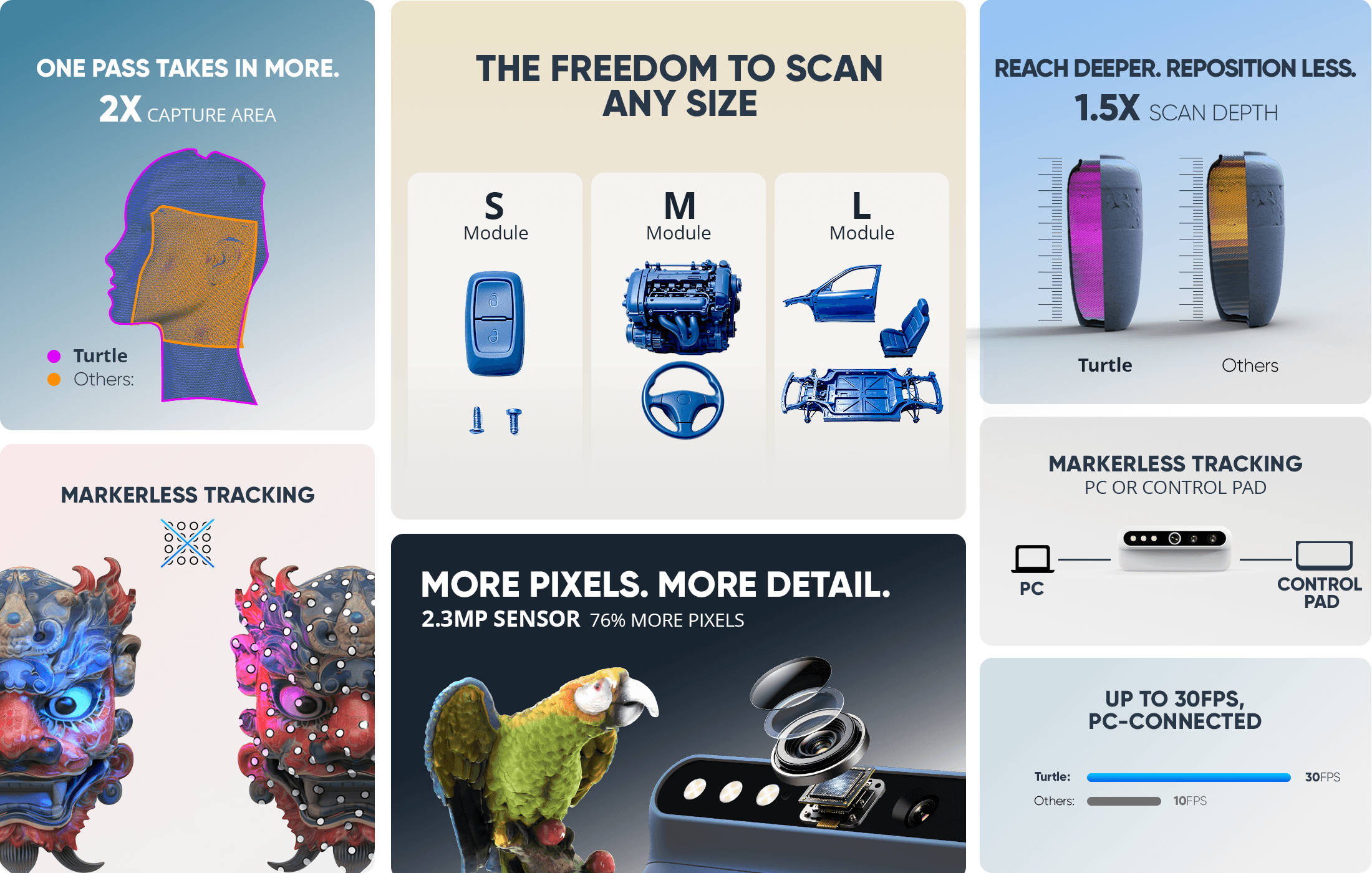

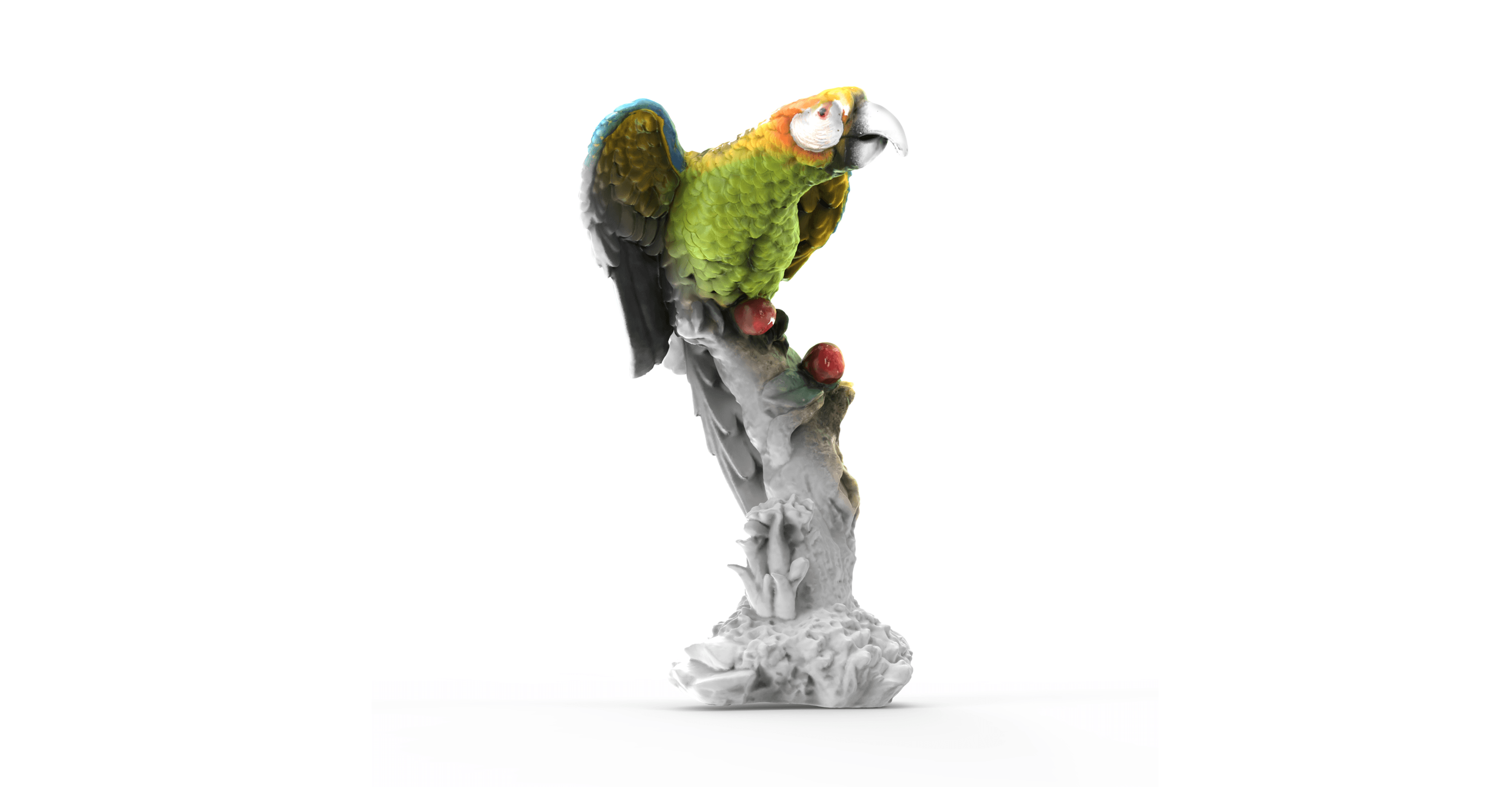

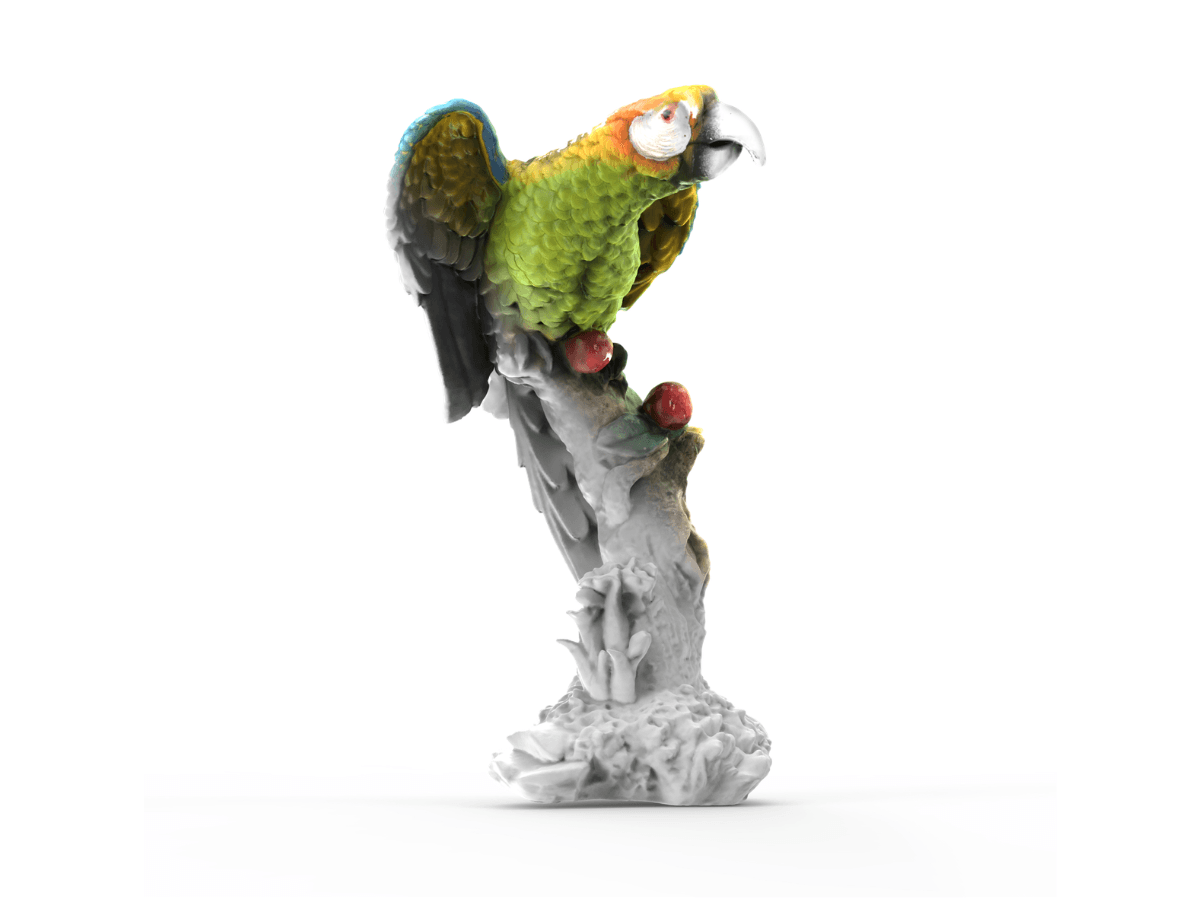

Turtle replaces three separate scanners with one Control Pad and three swappable modules, so your size range grows without buying another complete unit. Compared with the predecessor generation, the sensor goes from 1.3MP to 2.3MP for finer detail and color, each frame covers more than twice the area at 1.5× the scan depth, and the whole workflow - capture to export - now runs on the device without a computer.

Modules are sold individually, so you can start with one and add others as your work changes - the Control Pad recognizes each module automatically. If you already scan from a computer, a module alone is enough; add the Control Pad whenever you want to work untethered. Turntables, tripods, and scanning spray from earlier 3DMakerpro kits work with Turtle. Modules and Control Pad are specific to the Turtle Series and are not cross-compatible with earlier models.

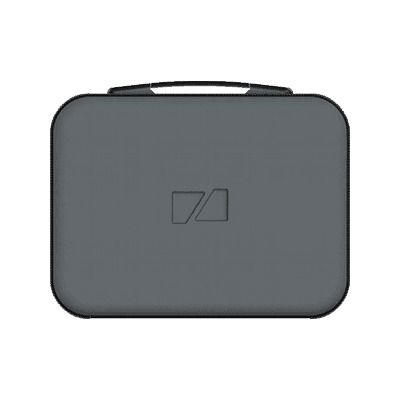

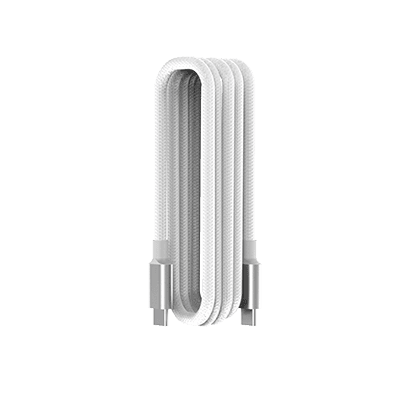

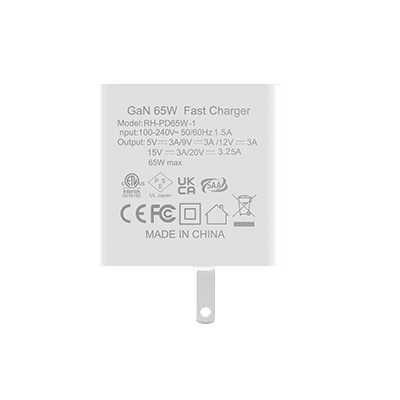

Every configuration includes the Control Pad, your selected module or modules, cables, and the quick start guide. Bundles that pair the Control Pad with one or more modules also include a carrying case. Turntables, tripods, and scanning spray are available as add-ons in the configurator above.

Turtle is on pre-order, and pre-order pricing applies during the launch period. Sea freight to Prusa's overseas warehouses begins in mid-August, with the first deliveries expected in early September. Orders ship in the sequence they were placed, so ordering earlier means shipping earlier. Prusa will email you when your order leaves the warehouse.
